Quick Answer

A standard 6.35mm to 3.5mm adapter is usually stereo (TRS), but mono (TS) versions exist. If you hear audio from only one side, the issue is often a mono adapter, a tip-ring mismatch, or a partially inserted plug.

Why Stereo and Mono Adapters Differ

A stereo adapter uses a TRS (Tip-Ring-Sleeve) connector with two insulating rings, carrying left and right audio channels plus a common ground. A mono adapter uses a TS (Tip-Sleeve) connector with one ring, carrying only one audio channel. Using a mono adapter with stereo headphones or a stereo source will sum the channels to mono or silence one side.

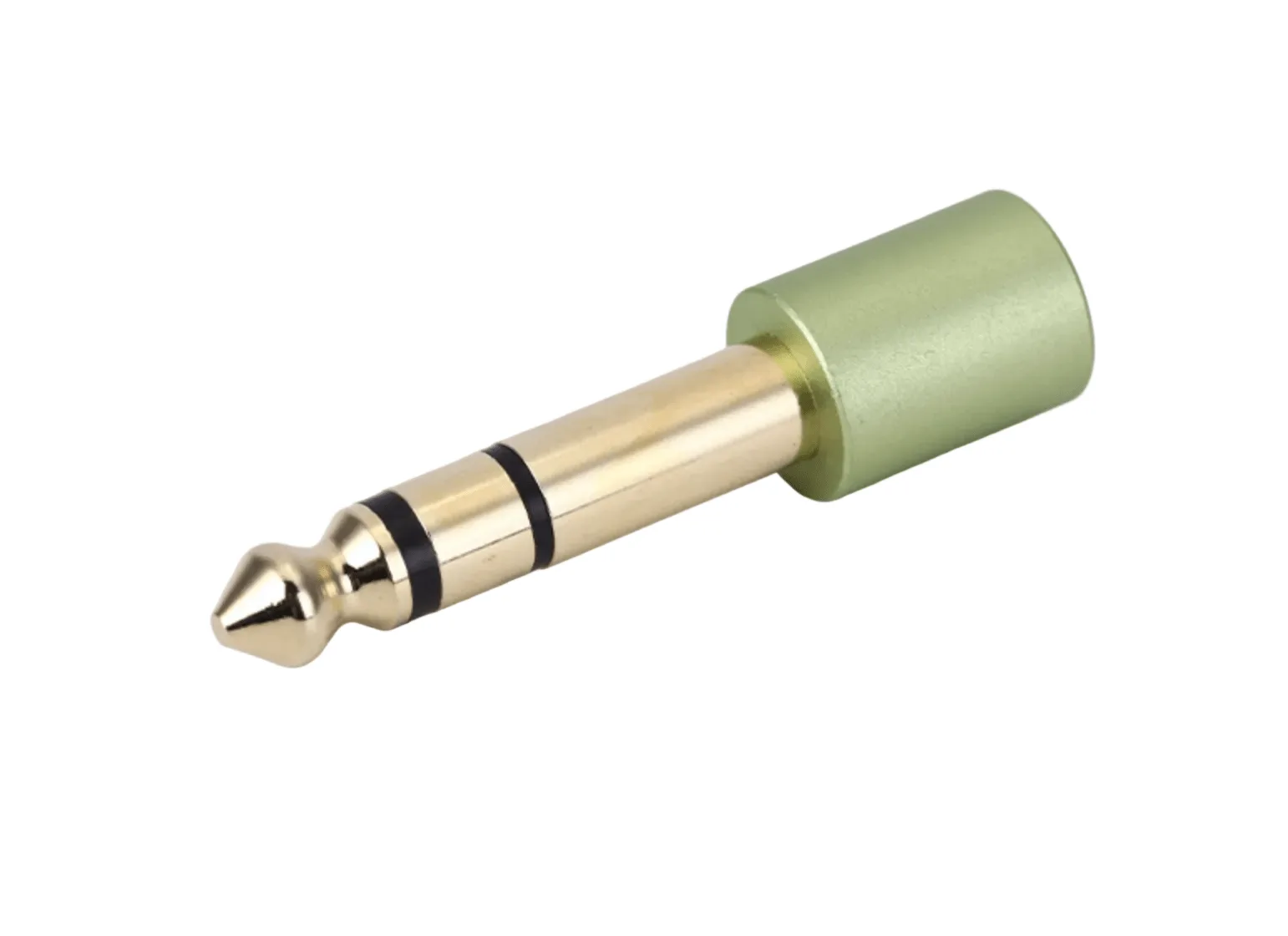

The adapter's physical appearance can help: check the number of insulating rings on the plug. Two rings indicate stereo (TRS), one ring indicates mono (TS). Many 6.35mm to 3.5mm adapters sold today are stereo, but cheap or vintage units may be mono.

Common Symptoms of Mono Adapter Issues

If you plug your headphones into a guitar amplifier, mixer, or audio interface using a 6.35mm adapter and hear sound from only one earcup, the adapter may be mono. Another clue: the sound is present but lacks stereo separation, or vocals/instruments that should be panned left or right appear centered.

However, a loose connection or a dirty jack can also cause one-sided audio. Always clean the plug and ensure it is fully inserted before concluding the adapter is mono.

Diagnosis: One-Sided Audio with a 6.35mm Adapter

  • Symptom: Audio comes from only one earcup of your stereo headphones when using a 6.35mm to 3.5mm adapter.
  • Likely Cause: The adapter is a mono (TS) type, or the plug is not fully inserted into the source jack. A dirty or worn connector can also break the circuit on one channel.
  • Corrective Action: Check the plug: two insulating rings = stereo (TRS), one ring = mono (TS). If mono, replace with a stereo adapter like the 6.35mm to 3.5mm Stereo Audio Adapter (ID: 2427023). Ensure the plug is fully seated. Clean the plug and jack with isopropyl alcohol if needed. If the adapter is stereo and fully inserted but one side still silent, the issue may be in the source device or headphone cable, not the adapter.
  • Stop or Choose Another Option: If the adapter is stereo and the problem persists, test with another pair of headphones. If those also fail on one side, your source jack may be damaged or wired for mono output (common on some guitar amps). In that case, use a mono headphone or a dedicated stereo-to-mono converter.
