Quick answer
Driveshaft wobble usually comes from drivetrain misalignment, worn output shafts, or mismatched components. Fix it by checking pinion engagement, replacing worn shafts, and using compatible adapters like the Ascender Driveshaft Adapter.
Why misalignment causes wobble
When the transmission output shaft and axle input pinion are not parallel in both vertical and horizontal planes, the driveshaft runs at an angle. This forces the U-joints to work beyond their designed range, creating vibration and wobble at speed.
Common causes include chassis flex under load, incorrect motor placement, or using a driveshaft that is too long or too short for the suspension cycle.
When to suspect worn parts
If the driveshaft wobbles even after alignment, inspect the output shaft for play. A worn transmission shaft or slipper eliminator can introduce slack that translates into visible wobble.
Upgrading to a dedicated shaft set, such as the VFD Transmission Shaft Set, eliminates the slipper assembly and provides a solid connection, reducing play.
Diagnosis and fix steps
- Symptom: Driveshaft wobbles visibly when spinning, especially at higher RPM or under load. Vibration may be felt through the chassis.
- Likely cause: Misaligned transmission and axle pinion angles, worn output shaft bearings, or a driveshaft that is too long/short for the suspension travel.
- Corrective action: 1) Check pinion angles with a protractor; adjust motor mount or transmission position to make them parallel. 2) Inspect the output shaft for radial play; replace if worn. 3) Swap to a compatible adapter like the Ascender Driveshaft Adapter if the output size is non-standard. 4) Replace a slipper-based shaft with a solid set like the VFD Transmission Shaft Set to eliminate play. If wobble persists after these steps, the driveshaft itself may be bent or the U-joints may be worn. Replace the driveshaft assembly.
- When to stop or choose another option: If the drivetrain geometry cannot be corrected with simple adjustments (e.g., severe chassis twist or custom suspension), consider a chassis-mounted servo or a 3-link suspension setup to maintain consistent pinion angles. For extreme builds, a custom-length driveshaft from a reputable brand can be ordered to match your exact suspension cycle.
Products that help
-

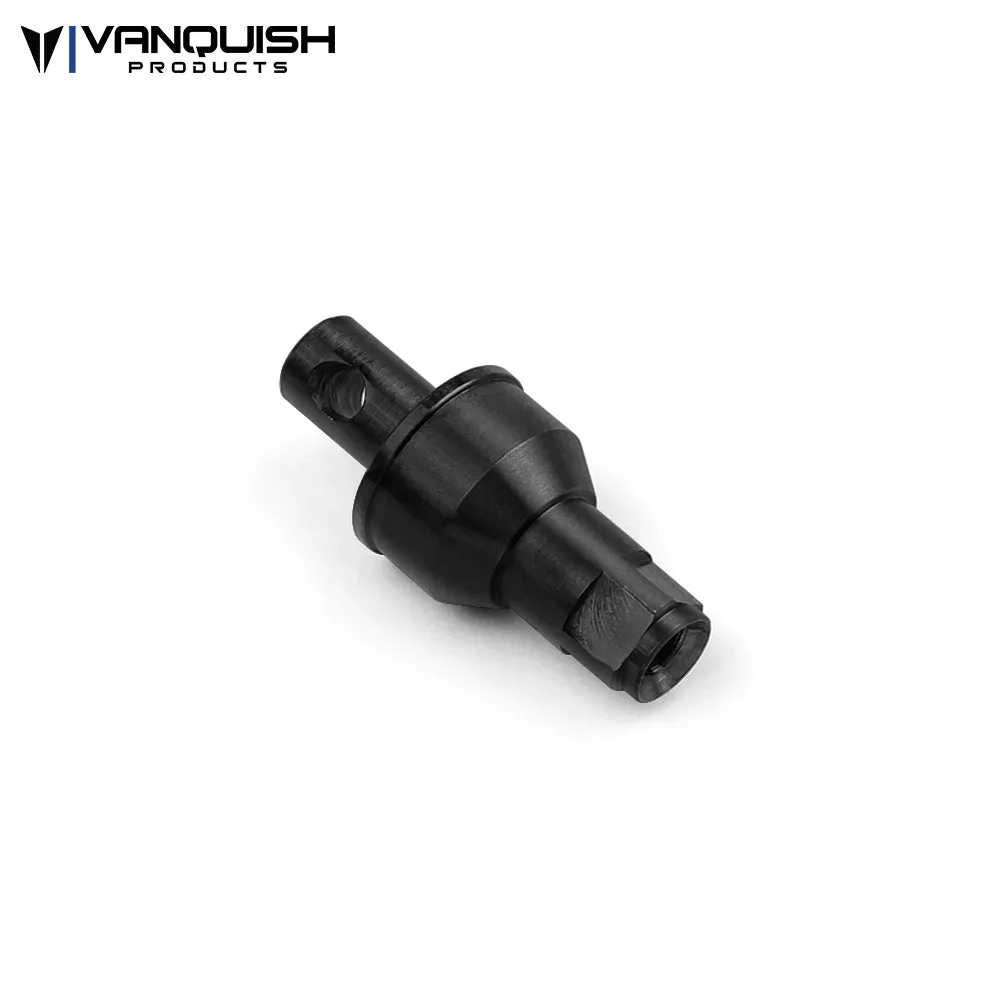

Ascender Driveshaft Adapter: The Ascender Driveshaft Adapter provides a standard 5mm pinion output to allow use of standard driveshafts. Machined from chromoly steel and heat treated for durability. If your transmission has a non-standard output, this adapter lets you run widely available driveshafts, reducing the chance of mismatch wobble.
Ascender Driveshaft Adapter
-

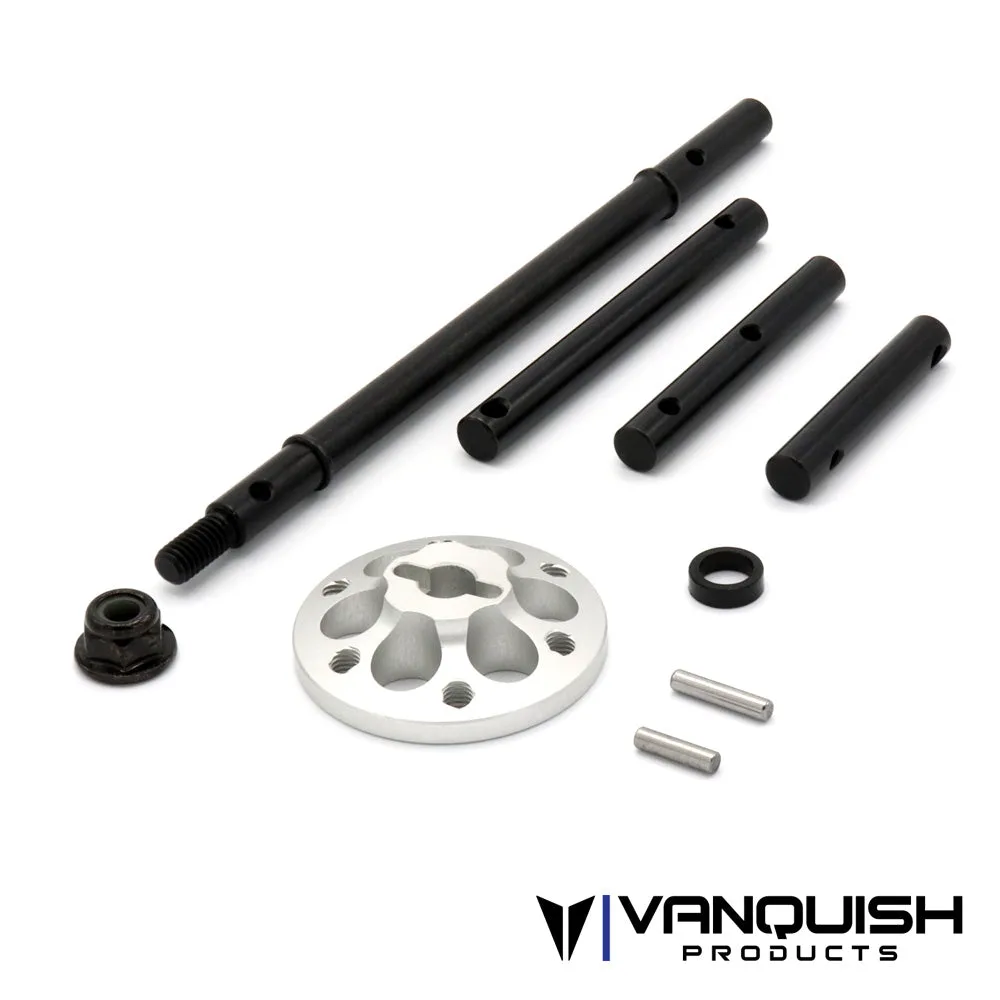

VFD Transmission Shaft Set: The VFD Transmission Shaft Set includes a top steel shaft and slipper eliminator with pins. Replacing a worn or slipper-based shaft with this solid set removes a common source of drivetrain play that causes wobble.
VFD Transmission Shaft Set
