Quick Answer

Place your CO2 diffuser near the filter outflow but away from the surface to maximize gas dissolution and ensure even distribution throughout the tank.

Why Placement Matters for CO2 Distribution

In a planted aquarium, CO2 must reach all plants to support photosynthesis. If the diffuser is placed incorrectly, gas can escape to the surface or accumulate in one area, leaving some plants without the CO2 they need. Proper placement ensures that the CO2 bubbles are carried by the water flow and dissolved before they reach the surface.

The goal is to create a gentle, even current that sweeps the CO2-rich water across the entire tank. This is especially important in larger tanks or those with dense planting, where dead spots can form.

Trade-offs: Diffuser vs. Reactor

Diffusers are simple and affordable, but they rely on water flow to distribute CO2. In tanks with weak filtration, you may need to add a circulation pump. Reactors, on the other hand, dissolve CO2 more efficiently but are more expensive and complex to install. For most hobbyists, a diffuser placed correctly offers a good balance of cost and effectiveness.

Step-by-Step Diffuser Placement

  1. Position near filter outflow: Place the diffuser directly in the path of the filter outflow. The current will carry the CO2 bubbles throughout the tank. Avoid placing it in a dead spot where water barely moves. Check that bubbles are visible across the tank, not just near the diffuser.
  2. Keep diffuser below the waterline: Submerge the diffuser at least 2-3 inches below the surface. This gives bubbles more time to dissolve before reaching the surface. If you see bubbles popping at the surface quickly, lower the diffuser. Bubbles should dissolve before hitting the surface; if not, adjust depth.
  3. Angle the diffuser toward the center: Angle the diffuser so the bubbles are pushed toward the center of the tank, not against the glass. This helps distribute CO2 more evenly. Use a suction cup or adjustable holder to set the angle. Observe the bubble trail and reposition if it's hitting the glass.
  4. Monitor CO2 levels: After placement, use a drop checker to monitor CO2 levels. Aim for a light green color (around 20-30 ppm). Adjust the bubble rate or diffuser position if levels are off. Wait 2-3 hours after adjusting before rechecking levels.

Products That Help

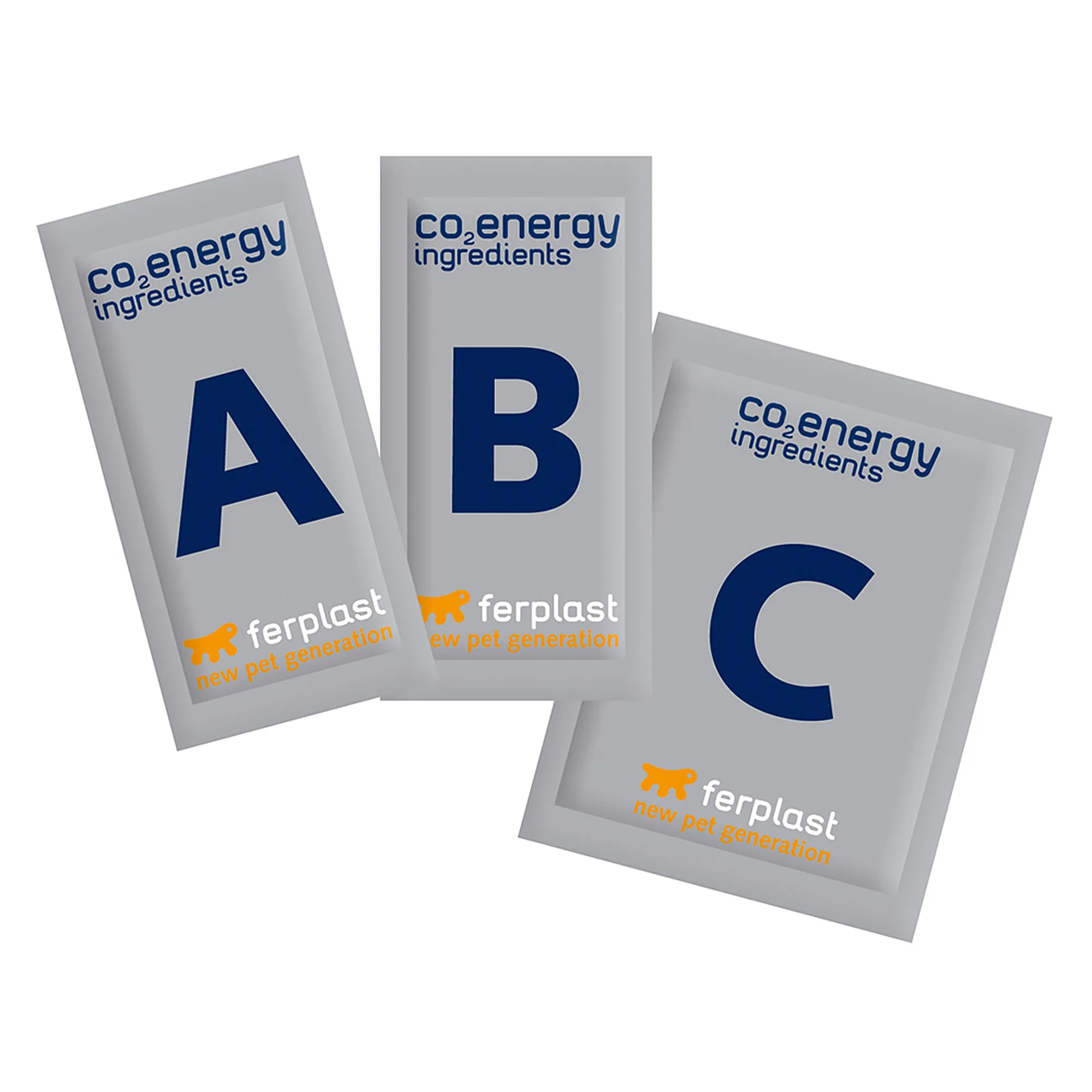

  • Co2 ENERGY INGREDIENTS: CO2 Energy Ingredients is a kit of natural ingredients designed for the CO2 Energy Classic distribution system, tested in Ferplast laboratories for long-term CO2 production. This kit ensures a steady supply of CO2, which pairs well with a properly placed diffuser to maintain consistent levels in your planted tank.
