Quick answer
To install a two way toggle switch with module, first turn off power, then connect the module to the switch and wire it according to your setup. Pair with a plate of your choice for a clean finish.
Why use a two way toggle switch with module?
A two way toggle switch with module lets you control a single light from two different locations, such as at the top and bottom of stairs. The module simplifies wiring by integrating the switching mechanism, reducing the need for extra components.
Important safety notes
Always turn off the power at the circuit breaker before starting any electrical work. Use a voltage tester to confirm the power is off. If you are unsure about any step, consult a licensed electrician.
Installation steps
- Turn off power and verify: Switch off the circuit breaker for the light you are working on. Use a voltage tester to confirm no power is present at the switch box. Never skip the voltage test; wires can still be live even after turning off the breaker.
- Prepare the switch box and wires: Remove the existing switch plate and pull out the wires. Identify the line (hot), neutral, and ground wires. If you are replacing an old switch, note which wires were connected. Take a photo of the old wiring before disconnecting it to avoid confusion.
- Connect the module to the switch: Attach the two way toggle module to the toggle switch according to the manufacturer's instructions. Typically, you will connect the module's wires to the switch terminals and then to the house wiring. Ensure the module is securely seated in the switch box to prevent loose connections.
- Wire the switch to the circuit: Connect the line wire to the module's input terminal, the load wire to the output terminal, and the neutral wire to the neutral terminal. Secure all connections with wire nuts. Double-check that all wire nuts are tight and no bare wire is exposed.
- Mount the switch and plate: Carefully tuck the wires into the switch box, then screw the toggle switch and module into place. Attach the plate of your choice over the switch. Do not overtighten the screws; it can crack the plate or damage the switch.
- Test the installation: Turn the power back on at the breaker. Test the switch from both locations to ensure the light turns on and off correctly. If the light does not work, turn off power and check all connections again.
Product details
-

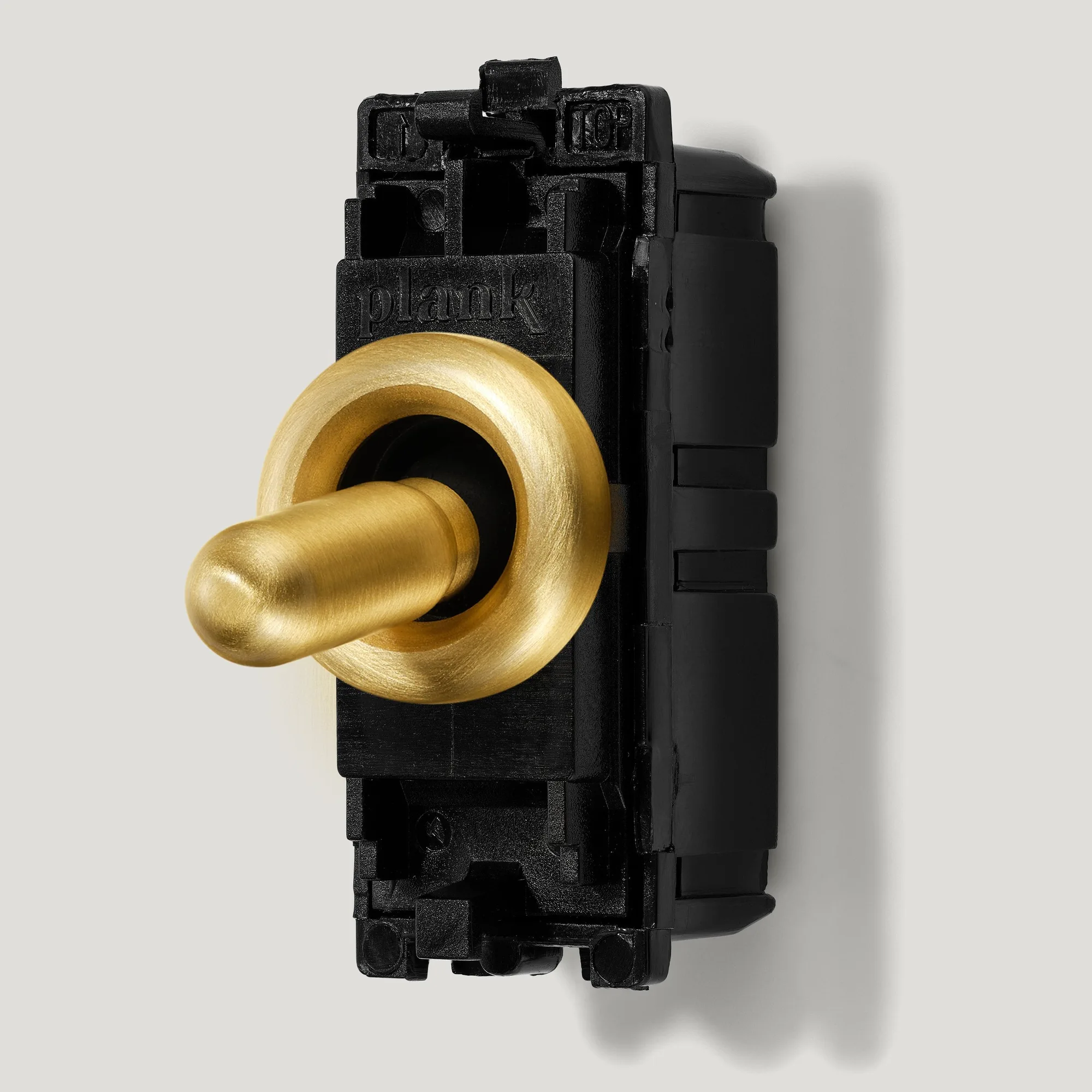

PALO Two Way Toggle Detail with Module - Brass: Control a light from one or two locations with our Rounded Two Way Toggle Detail and Module. This means you can install the switch at two convenient points, such as hallway ends, without needing complex wiring.
PALO Two Way Toggle Detail with Module - Brass
