Quick Answer
To properly install a battery terminal for your car audio system, start by disconnecting the negative battery cable, then clean the battery post, attach the terminal ring or set-screw type, and torque it to specification. Always use the correct gauge terminal for your wiring (e.g., 1/0 AWG) and ensure a tight, corrosion-free connection. For high-quality terminals, consider Rockford Fosgate's inline fuse holder and other accessories to protect your system.
Installing a battery terminal might seem straightforward, but doing it wrong can lead to voltage drops, intermittent power, or even electrical fires. Whether you're upgrading your car audio system or adding a new amplifier, a secure and clean connection at the battery is crucial for performance and safety.
In this guide, we'll walk you through the proper steps to install a battery terminal for your car audio system, covering the tools you need, safety precautions, and common mistakes to avoid. We'll also highlight how Rockford Fosgate products, like their inline fuse holder, can enhance your installation.
Tools and Materials You'll Need
Before you start, gather the necessary tools and materials. You'll need a wrench or socket set (typically 10mm or 13mm), wire cutters/strippers, a battery terminal cleaner or wire brush, dielectric grease, and a torque wrench (if available). For the terminal itself, choose one that matches your wire gauge—common sizes are 4 AWG, 8 AWG, and 1/0 AWG. Ensure it's compatible with your battery post type (top post or side post).
If you're using a set-screw type terminal, you'll also need the appropriate Allen wrench (often 3mm or 4mm). Having a multimeter to verify voltage is a plus. For a professional touch, consider using a terminal with a built-in fuse holder, like the Inline MAXI Fuse Holder from Rockford Fosgate, which adds protection and clean wiring.

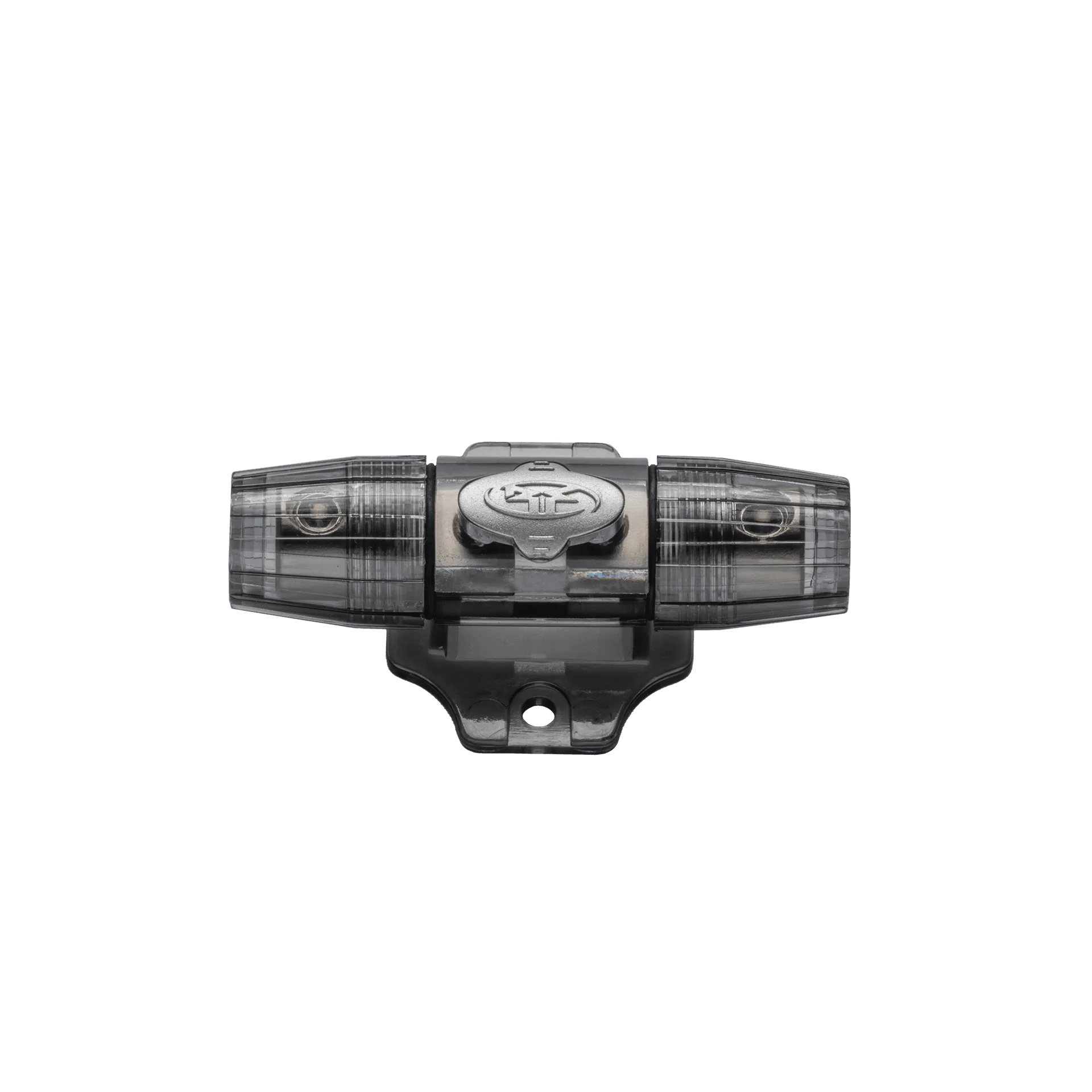

Inline MAXI Fuse Holder
- Safety glasses and gloves
- Battery terminal puller (if needed)
- Anti-corrosion spray
Safety First: Precautions Before You Begin
Working with your car battery involves risk, so take these precautions seriously. Always disconnect the negative (black) terminal first and reconnect it last to avoid short circuits. Never allow a wrench to touch both terminals simultaneously, as this can cause a dangerous spark. Wear safety glasses to protect your eyes from acid or debris.
Make sure your car is off and the keys are removed. If you're working in a garage, ensure proper ventilation to avoid inhaling battery fumes. Keep a fire extinguisher nearby, just in case. Also, check the battery for any cracks or leaks; if you see damage, replace the battery before proceeding.
- Disconnect negative first, positive last
- Use insulated tools to prevent shorts
- Keep metal objects away from the battery
Step-by-Step Installation Process
Start by loosening the nuts on the existing battery terminals and removing the cables. If the terminals are corroded, clean them with a wire brush or battery terminal cleaner. Once clean, dry the posts thoroughly. Apply a thin layer of dielectric grease to the posts to prevent future corrosion.
Next, prepare your new terminal. If it's a set-screw type, slide the wire into the terminal and tighten the set screw with the appropriate Allen wrench. If it's a ring terminal, strip the wire and crimp or solder the ring connector. For 1/0 AWG wire, ensure the terminal is rated for that size. Then, attach the terminal to the battery post, making sure it's fully seated, and tighten the bolt to the manufacturer's torque specification (usually 6-8 ft-lbs for top posts).
After securing the positive terminal, reconnect the negative terminal. Double-check all connections are tight, and then start the car to ensure everything works. Use a multimeter to verify voltage at the amplifier or distribution block. If you notice any sparking or heat, immediately disconnect and re-evaluate your installation.
- Always tighten to spec—over-tightening can crack the battery
- Use a torque wrench for accuracy
- Apply anti-corrosion spray after installation
Installation Steps at a Glance
- Disconnect the battery: Always disconnect the negative terminal first, then the positive. Loosen the bolts and remove the cables carefully. Checkpoint: Ensure no tools touch both terminals.
- Clean and prepare the posts: Use a wire brush to remove corrosion from the battery posts. Apply dielectric grease to prevent future buildup. Checkpoint: Posts should be shiny and free of debris.
- Attach the new terminal: Slide the terminal onto the positive post first. For set-screw types, insert the wire and tighten with the correct Allen wrench. For ring terminals, ensure a secure crimp. Checkpoint: Verify the terminal is fully seated and tight.
- Reconnect the negative terminal: Reattach the negative cable and tighten. Double-check both connections for tightness. Checkpoint: Wiggle the terminals to ensure they are secure.
- Test the system: Start the car and test your audio system. Use a multimeter to check voltage at the amplifier. Checkpoint: If voltage is low, recheck all connections.
Product Facts: Rockford Fosgate Battery Accessories
- Inline MAXI Fuse Holder: Platinum plated MAXI inline fuse holder for 4 AWG or 8 AWG cables. The top "RF Swirl" cover is removable with a small flathead screwdriver to reveal the MAXI fuse mounting hardware. MAXI fuse set screws require 3 mm Allen wrench. Power cable set screws require 4 mm Allen wrench. NOTE: Fuse and cable not included and sold separately. This fuse holder protects your audio system from power surges and short circuits. Its platinum plating ensures excellent conductivity and corrosion resistance, making it a reliable addition to your battery terminal installation.
- Prime 10" R2S 4-Ohm DVC Shallow Subwoofer: When you have no space for bass, our Prime R2SD4-10 shallow subwoofer will satisfy your need. This 10" subwoofer handles 200 Watts RMS and the 4-Ohm Dual Voice Coil design lets you to wire them in various configurations. While not directly a battery terminal, this subwoofer is a popular upgrade for car audio systems. A secure battery terminal ensures it receives the power it needs for consistent bass performance.
A properly installed battery terminal is the foundation of a reliable car audio system. By following these steps and using quality components like the Inline MAXI Fuse Holder from Rockford Fosgate, you can ensure a secure and safe power connection. For more upgrades, explore our range of audio components, such as the Prime 10" R2S Shallow Subwoofer, to enhance your listening experience.
