How to Install a Free Float Handguard on an AR-15

Quick Answer

Installing a free float handguard on an AR-15 requires removing the old handguard, attaching the barrel nut, and securing the new rail with the included screws. This guide covers the process for KeyMod and M-LOK handguards.

Why Free Float Matters

A free float handguard attaches only to the barrel nut, not the gas block or barrel, which improves accuracy by eliminating pressure points. Both KeyMod and M-LOK handguards offer this benefit, and the installation steps are nearly identical.

Choosing Between KeyMod and M-LOK

KeyMod and M-LOK are the two main attachment systems for accessories. KeyMod uses a keyhole-shaped slot, while M-LOK uses a T-shaped channel. Both work well, but M-LOK has become more common in recent years. The installation process for the handguard itself is the same regardless of which system you choose.

Installation Steps

1. Remove the old handguard: First, ensure the AR-15 is unloaded and safe. Remove the upper receiver from the lower if convenient. For a two-piece handguard, unscrew the delta ring assembly and slide off the handguards. For a free float handguard, you may need to remove the gas block and gas tube first. Use a vise block to hold the upper receiver securely. Common mistake: forgetting to remove the gas block on free float handguards that cover it. Check clearance before proceeding.
2. Remove the old barrel nut: Use a barrel nut wrench (or an AR-15 armorer's wrench) to loosen and remove the old barrel nut. Some handguards use a standard nut, others a proprietary one. If the nut is stuck, apply penetrating oil and let it sit for a few minutes. Be careful not to damage the upper receiver threads. Checkpoint: make sure the threads on the upper receiver are clean and undamaged before installing the new nut.
3. Install the new barrel nut: Slide the new barrel nut (included with most handguards) over the barrel extension and hand-tighten it. Then use a torque wrench to tighten to manufacturer specifications (typically 30-80 ft-lbs). Align the nut so the gas tube can pass through the cutout. Apply a thin layer of anti-seize or grease to the threads to prevent galling. Common mistake: over-torquing can strip threads or crack the upper receiver. Use a torque wrench and follow the included specs.

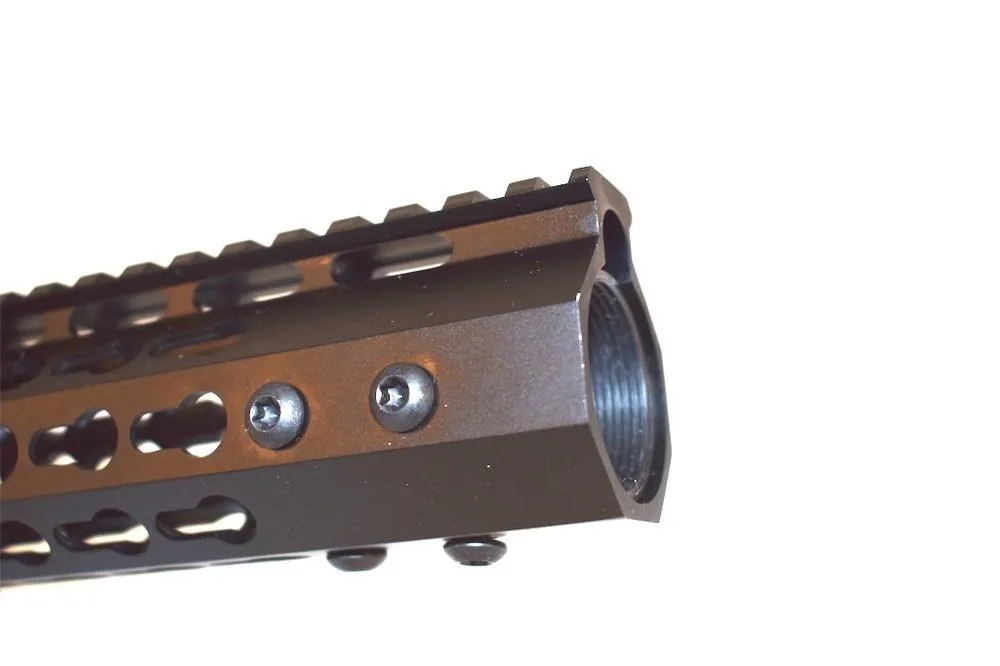

4. Install the handguard: Slide the handguard over the barrel nut. For a one-piece free float handguard, it should fit snugly. Align the handguard so the top rail matches the upper receiver rail. Tighten the set screws (usually 4-6) evenly using the included Allen key. Do not overtighten, as this can strip the screws or damage the handguard. Checkpoint: verify the handguard is straight and does not contact the barrel or gas block. Rotate the barrel to check for clearance.
5. Reinstall the gas block and gas tube: If you removed the gas block, reinstall it with the gas tube aligned to the barrel nut cutout. Tighten the gas block set screws to the manufacturer's torque spec. Reconnect the upper receiver to the lower if separated. Common mistake: misaligning the gas tube can cause cycling issues. Double-check alignment before final assembly.
6. Function check: Cycle the action manually to ensure the handguard doesn't interfere with the gas system or barrel. Check that all screws are tight. Perform a safety check: ensure the rifle is unloaded, then test the trigger and safety selector. If everything works, you're ready to shoot. Final checkpoint: fire a few rounds at the range to confirm zero and function before relying on the rifle.

Products Mentioned

AR15 12" Slim Keymod Handguard Rail One Piece Free Float with 6 Screws: 12" ultra-light super slim KeyMod handguard, one-piece free float, 6061-T6 aluminum, includes steel barrel nut and Allen key. The included barrel nut and Allen key mean you don't need to buy extra hardware for a basic install, saving time and money.

AR15 12" Slim Keymod Handguard Rail One Piece Free Float with 6 Screws

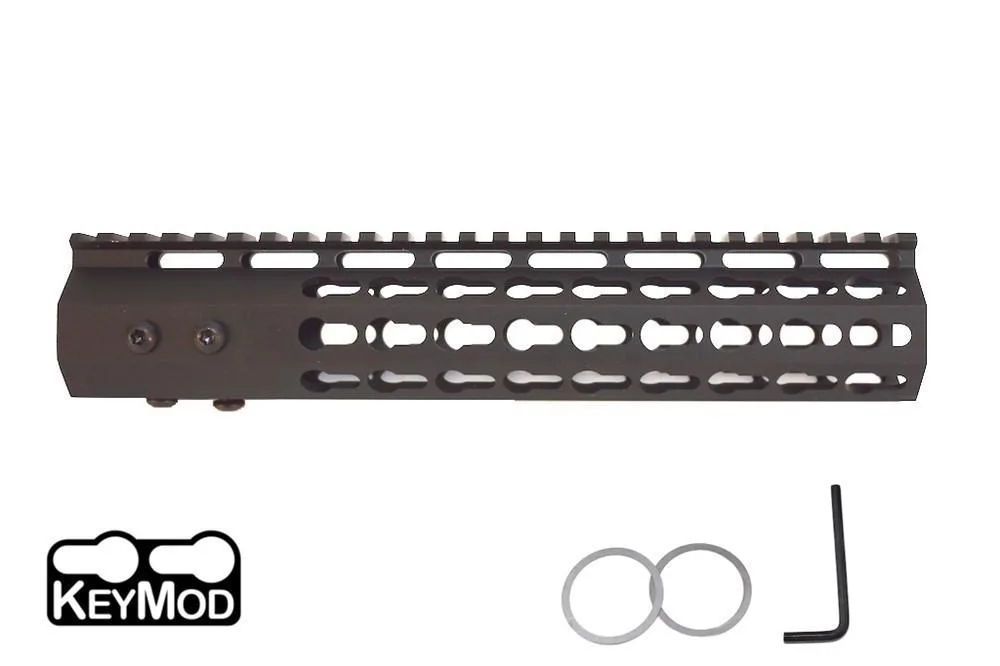

AR15 10" Slim Keymod Handguard Rail One Piece Free Float with 6 Screws: 10" ultra-light super slim KeyMod handguard, one-piece free float, 6061-T6 aluminum, includes steel barrel nut and Allen key. The shorter 10" length is ideal for pistol builds or if you want to keep the gas block exposed for easy access.

AR15 10" Slim Keymod Handguard Rail One Piece Free Float with 6 Screws
