Quick answer
Installing the Yale Assure Lock 2 Keypad with Ridgefield Handle takes about 30 minutes with a screwdriver. Follow the steps below and avoid the common pitfalls to get your smart lock working securely.
What you need before you start
Before opening the box, check that your existing door prep matches the Assure Lock 2 requirements. The lock fits standard 1 3/8-inch to 1 3/4-inch thick doors with a 2 1/8-inch diameter bore hole. The Ridgefield Handle requires a separate 1-inch bore hole for the latch. If your door has an older or non-standard setup, you may need to drill new holes or use an adapter plate.
Also confirm you have the correct backset. The included latch adjusts to 2 3/8-inch or 2 3/4-inch. Measure from the edge of the door to the center of the bore hole before you remove your old lock.
Common installation mistake: misaligned latch
The most frequent issue during installation is the latch not aligning properly with the strike plate on the door frame. This causes the deadbolt to bind or the handle to feel stiff. Before tightening any screws, test the alignment by inserting the deadbolt and turning the thumb turn. If it drags, adjust the latch position or file the strike plate opening slightly.
For the Ridgefield Handle, ensure the latch retracts fully when you turn the handle. If it sticks, check that the handle's mounting screws are not over-tightened, which can warp the assembly.
Installation steps
- Remove your old lock and handle: Unscrew and remove the existing deadbolt and handle from both sides of the door. Keep the screws in case you need them later, but discard any old latch or strike plate that won't be reused. Check that the screw holes align with the new Yale hardware before proceeding.
- Install the latch and deadbolt: Insert the adjustable latch into the edge bore, ensuring the label 'UP' faces upward. Slide the latch so it fits your door's backset (2 3/8 or 2 3/4 inch). Secure it with the provided screws. Then insert the deadbolt assembly from the outside, feeding the cable through the bore hole. Do not overtighten screws; the latch must move freely.
- Mount the keypad and interior escutcheon: Connect the cable from the exterior keypad to the interior escutcheon. Align the mounting plate over the deadbolt, then secure the interior escutcheon with the provided screws. Tighten them evenly but not too hard. Make sure the cable is not pinched between the escutcheon and the door.
- Install the Ridgefield Handle: Insert the handle's latch into the lower bore hole. Attach the exterior handle first, then the interior handle, aligning the spindle. Secure with the mounting screws, ensuring the handle operates smoothly. If the handle feels loose, check that the spindle is fully engaged.
- Test the lock and handle: Insert the provided batteries into the interior escutcheon. Use the keypad to lock and unlock the deadbolt. Turn the interior thumb turn and test the Ridgefield Handle to confirm the latch retracts fully. Adjust the strike plate if the bolt does not slide in easily. If the lock beeps but the bolt does not move, the battery polarity may be reversed.
- Program your entry codes: Follow the Yale Access app to set up your Bluetooth connection and create entry codes. You can also manually program a master code using the keypad. Share codes with family or guests directly from the app. Write down your master code and store it somewhere safe before closing the door.
Product fact
-

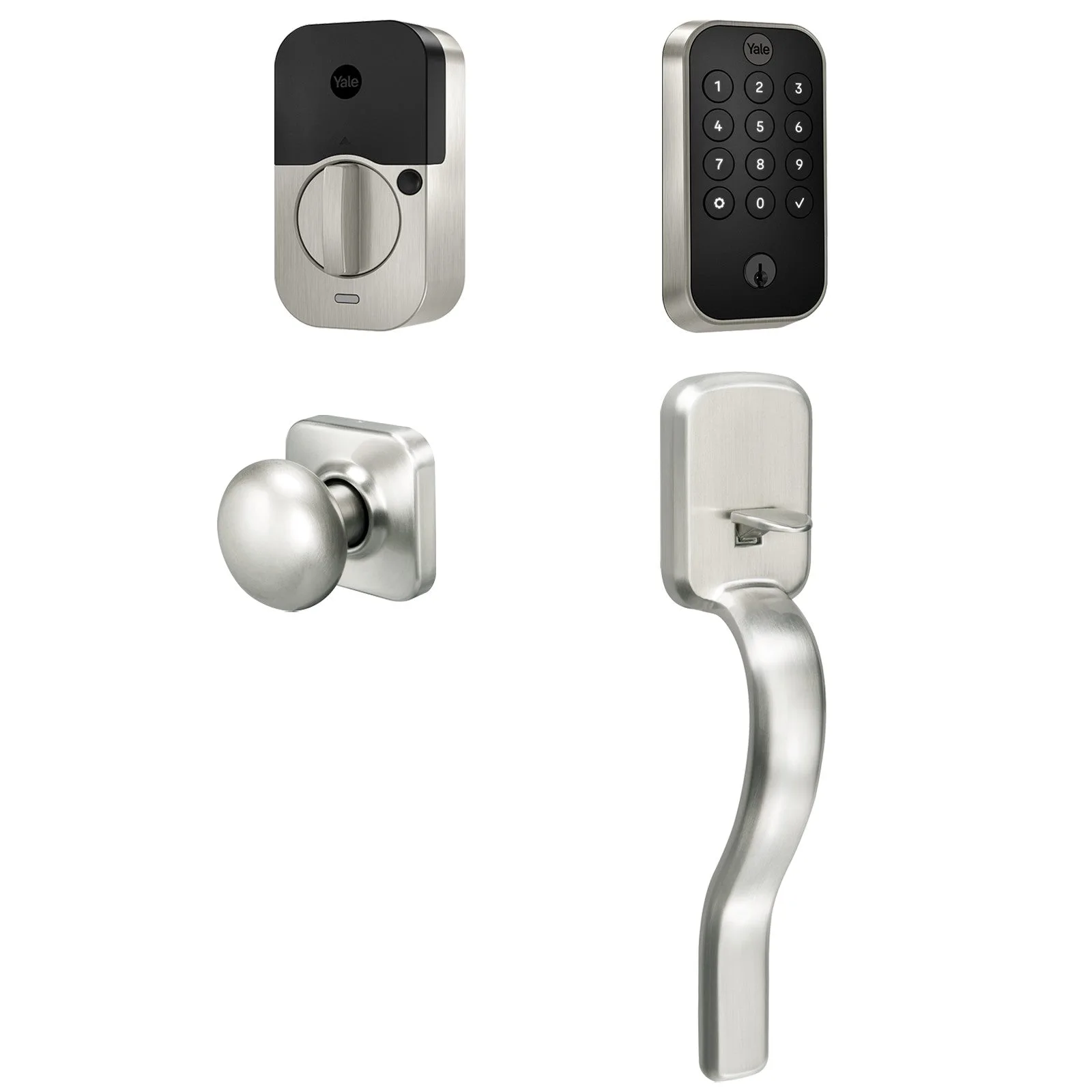

Yale Assure Lock 2 Keypad with Bluetooth and Ridgefield Handle: You've got enough on your plate, let Yale get the door. With multiple ways to unlock, the ability to share and track entry codes, and Auto-Lock with DoorSense®, the Yale Assure Lock 2 makes securing and accessing your home, one less thing to worry about. This bundle simplifies daily entry with keypad codes and Bluetooth, while the Ridgefield Handle provides a matching, smooth-operating lever for your front door.
