Quick Answer

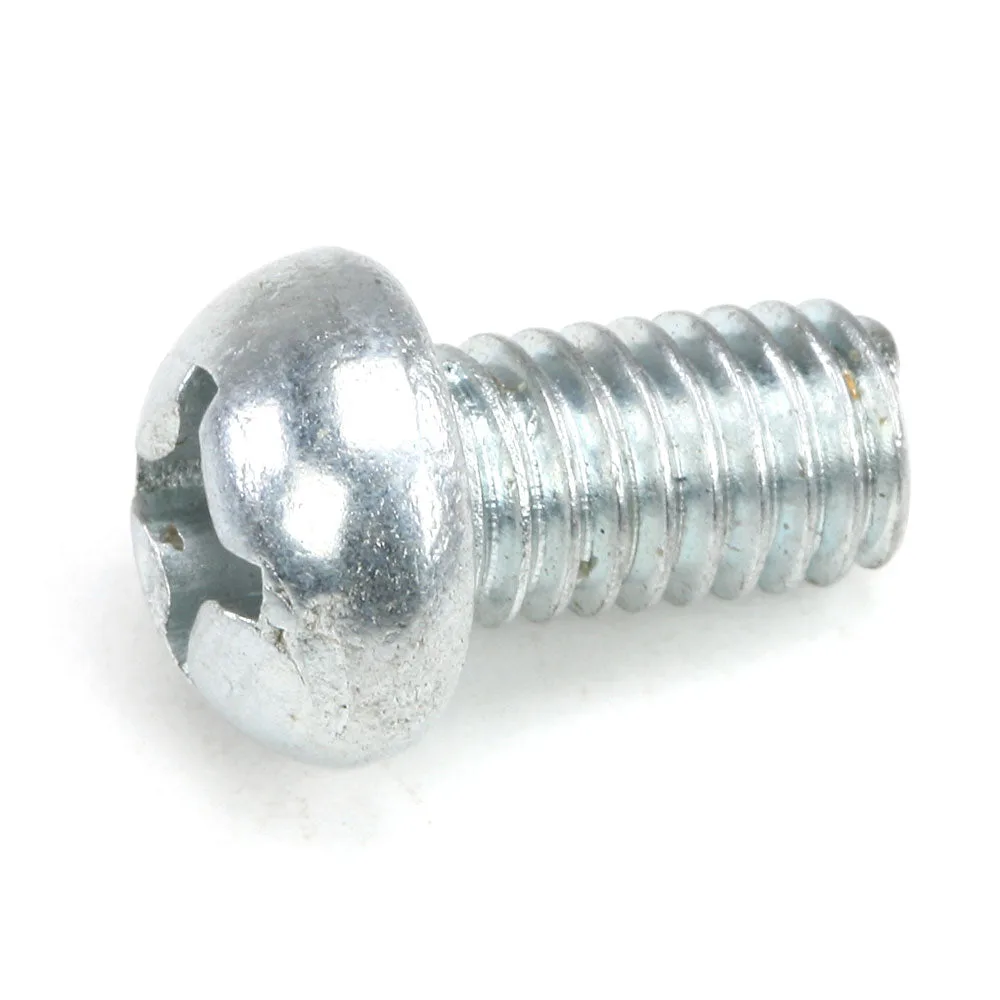

The M6x10 round head Phillips machine screw is a versatile metric fastener for joining metal parts on bench-top equipment. Install it with a properly fitting Phillips driver, correct torque, and a suitable thread engagement to avoid stripping or loosening.
Why Choose a Round Head Phillips Machine Screw?
Round head Phillips machine screws are a common choice when you need a low-profile, non-countersunk head that still provides a clean appearance. The Phillips drive helps center the driver bit, reducing cam-out compared to slotted screws, especially when driving at an angle.
The M6x10 size means a 6 mm nominal diameter and 10 mm length, making it suitable for medium-duty fastening tasks on mini lathes, mills, and other bench-top machinery where space is limited but strength is needed.
Where to Use an M6x10 Screw
Common applications include securing brackets, covers, guards, and light structural components. The round head is ideal for parts that will be handled or where a flush or countersunk head is not required.
Avoid using this screw in high-vibration or high-load applications without thread-locking compound or a locking washer, as the Phillips drive is not designed for high torque.
Step-by-Step Installation Guide
- Select the correct driver bit: Use a Phillips #2 or #3 bit that fits snugly in the screw head. A loose fit can strip the head. Check that the bit fills the cross recess completely before applying force.
- Prepare the threaded hole: Clean the hole and ensure it is tapped to M6 if it is not a through-hole. Use a tap if needed to avoid cross-threading. Verify thread pitch (typically 1.0 mm for M6) matches the screw.
- Apply thread-locking compound (optional): For applications subject to vibration, apply a medium-strength thread-locker to the screw threads before insertion. Do not use thread-locker on plastic parts or where disassembly is frequent.
- Start the screw by hand: Turn the screw clockwise with your fingers until it engages the threads. This prevents cross-threading. If resistance is felt immediately, back out and realign rather than forcing it.
- Tighten with controlled torque: Use a torque screwdriver set to the recommended value for M6 (typically 5-7 Nm for general use). If using a manual driver, tighten firmly but avoid over-torquing. Over-tightening can strip threads or break the screw head.
- Final check: Inspect the screw head for damage and ensure the joint is snug. For critical assemblies, mark the screw head with a paint dot to verify it hasn't loosened. Re-check torque after a short run if the application involves vibration.
Product Facts
-
Screw, M6x10 Round Head Phillips Machine: This M6x10 round head Phillips machine screw is listed by LittleMachineShop.com under fasteners and screws, with the brand Sieg Industrial Group. Knowing the brand and catalog source helps you verify you are getting a screw designed for machinery applications, not a generic hardware-store fastener.
