Quick answer
To connect a 6.35mm TRS output to dual RCA inputs, use a 6.35mm TRS female to dual RCA male adapter cable, plug the TRS end into your source, then connect the RCA ends to your receiver or amplifier's L/R inputs.
Why a TRS female to dual RCA adapter works
This adapter bridges the gap between professional audio gear (mixers, audio interfaces, keyboards) and consumer home stereo components. The 6.35mm TRS female end accepts a standard 1/4-inch stereo plug, while the dual RCA male ends plug into the left and right inputs on a receiver, amplifier, or powered speakers.
The key advantage is that the TRS connection carries a stereo signal (left and right channels) through a single cable, and the adapter splits that signal into two RCA outputs. This is ideal when your source has a headphone-style output or a stereo line out with a single TRS jack, and your destination has separate RCA inputs.
Balanced vs. unbalanced: know the difference
A TRS connector can carry either a balanced mono signal or an unbalanced stereo signal. This adapter is designed for unbalanced stereo, meaning it takes the left and right channels from a stereo TRS output and routes them to the RCA connectors. If you're connecting a balanced mono output, this adapter won't properly convert it to a stereo signal—you'd need a different solution.
Before you start, confirm your source is outputting an unbalanced stereo signal. Common examples include headphone jacks, keyboard outputs, and mixer line outputs that are labeled as stereo or headphone. If your device has a balanced TRS output, this adapter may not give you the expected stereo separation.
Trade-offs to keep in mind
One limitation is that RCA connections are inherently unbalanced, so the signal may be more susceptible to interference over long cable runs. Keep the cable length as short as practical and avoid routing it near power cables.
Also, this adapter is a passive cable—it doesn't convert impedance or level. It works best when the source output level is compatible with the destination input level. For example, a headphone output can drive RCA inputs, but you may need to adjust volume levels to avoid distortion.
Step-by-step setup guide
- Check your source output: Confirm your device has a 6.35mm TRS stereo output (often labeled 'headphone' or 'line out'). If it's a balanced mono output, this adapter won't give you stereo. Mistake: Using a balanced output and expecting stereo. Check the manual if unsure.
- Connect the TRS cable to the source: Plug the 6.35mm TRS female end of the adapter into your source's output. Use a standard 6.35mm TRS cable to connect from your device to the adapter. Ensure the cable is fully inserted to avoid intermittent signal.
- Connect the RCA ends to the destination: Plug the red RCA connector into the right input and the white (or black) into the left input on your receiver or amplifier. Match the colors to the input jacks. Mistake: Swapping L/R channels can cause inverted stereo image. Double-check color coding.
- Set source and destination levels: Start with the source volume low and the destination volume at a moderate level. Gradually increase the source volume to avoid distortion. If you hear distortion, lower the source volume rather than the destination.
- Test the connection: Play audio and verify that both channels produce sound. If one side is silent, check the RCA connections and try swapping cables. A silent channel often means a loose connection or a faulty cable—test with another cable if needed.
Product facts
-

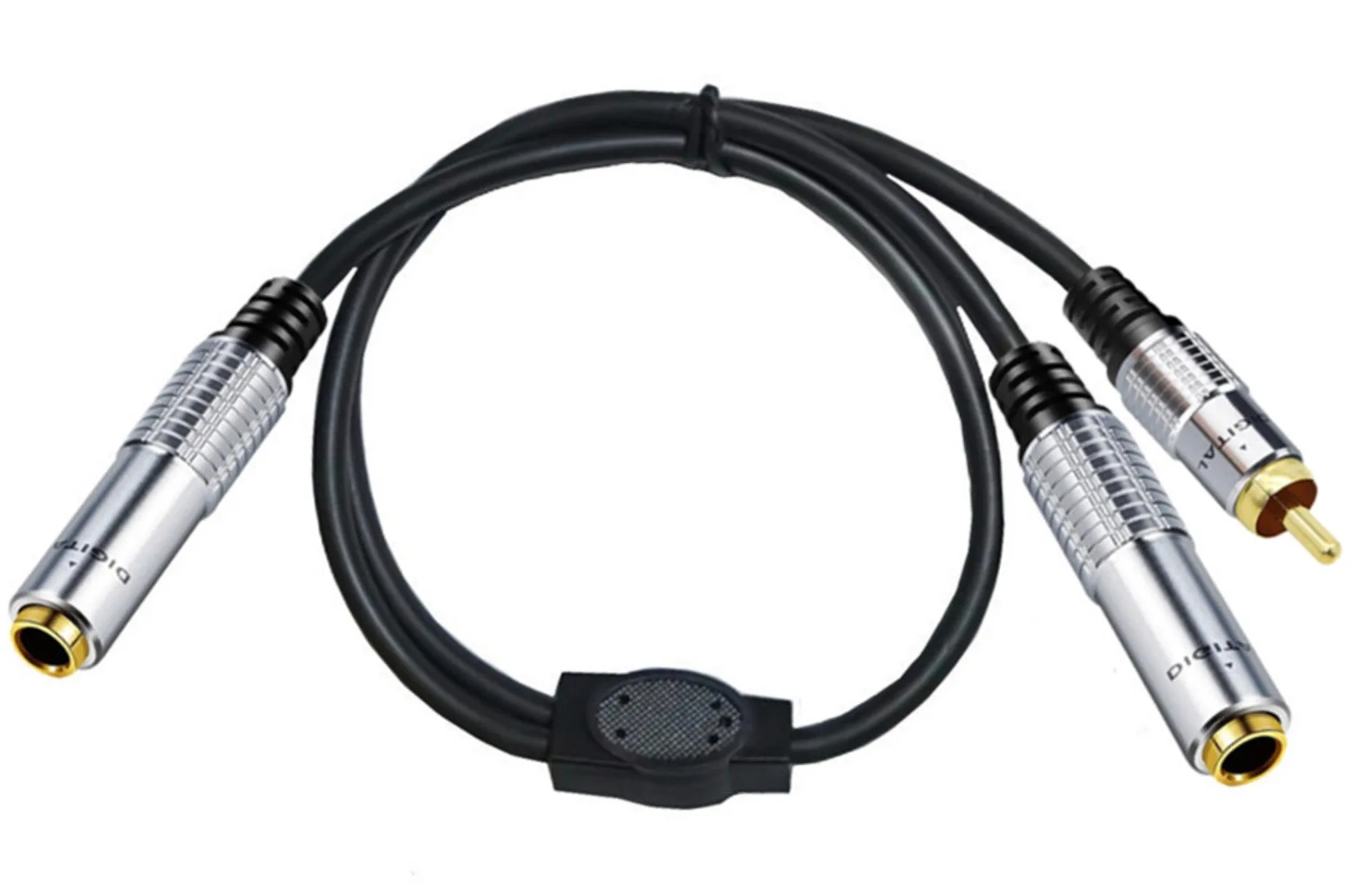

6.35mm (1/4") TRS Female to 6.35mm TRS Female & Dual RCA Male Audio Adapter Cable 0.5m: This adapter cable features gold-plated connectors and is designed for mixers, amplifiers, Hi-Fi systems, guitars, keyboards, speakers, and recording equipment. Gold-plated connectors help maintain signal integrity and resist corrosion, which is important when connecting professional gear to home audio systems.
6.35mm (1/4") TRS Female to 6.35mm TRS Female & Dual RCA Male Audio Adapter Cable 0.5m
