Quick answer
A hose reel that won't retract usually has a damaged stopper ball, a kinked or cut hose, or a loss of spring tension. Each issue has a straightforward fix, and we'll walk you through them.
Why a stopper ball matters more than you think
The stopper ball is the small but critical part that stops the hose from retracting all the way into the reel casing. If it gets damaged or breaks off, the hose can retract too far, jamming the mechanism, or it can fail to retract at all because the ball is no longer creating the necessary stop point.
A damaged stopper ball is one of the most common causes for a reel that won't retract, and it's also one of the easiest to fix. The replacement is a simple swap that doesn't require any special tools.
The role of hose condition in retraction problems
A kinked, cut, or damaged hose can physically prevent the reel from winding properly. Even a small leak can reduce the internal water pressure needed for smooth retraction in some models, but more often, it's a physical obstruction like a sharp bend or a torn section that stops the hose from moving freely.
If you've accidentally cut the hose with a tool or your dog has chewed through it, the repair kit is a practical solution. It lets you cut out the damaged section and reconnect the hose without replacing the entire reel.
Spring tension: the hidden culprit
Over time, the internal spring that powers retraction can lose tension. This is a normal wear-and-tear issue, especially if the reel has been left fully extended for long periods. Unlike a stopper ball or hose damage, a loss of spring tension is not something you can fix with a simple spare part—it usually requires professional service or a replacement reel.
If you've ruled out the stopper ball and hose damage, and the reel still won't retract, the spring is the likely cause. At that point, it's worth checking if the reel is still under warranty or if a replacement is more cost-effective.
Diagnosis and fix steps
- Symptom: Hose retracts partway then stops, or won't retract at all.
- Likely cause: Damaged or missing stopper ball on the hose end. The ball creates the stop point that prevents the hose from retracting into the casing. If it's broken, the hose can't retract properly. Visually inspect the stopper ball. If it's cracked, worn, or missing, proceed to corrective action.
- Corrective action: Order a replacement stopper ball (Hi-Flow Retractable Hose Reel Stopper Ball | 14mm | Classic Series). Remove the old ball by unscrewing it from the hose end, then screw on the new one. No tools required. Test retraction after replacement. If the problem persists, move to the next step.
- Symptom 2: Hose retracts but then gets stuck or jerks during retraction.
- Likely cause 2: Kinked, cut, or damaged hose section that creates a physical obstruction or leak. Run your hand along the hose to feel for cuts, bulges, or sharp bends. If you find damage, proceed to corrective action.
- Corrective action 2: Use the 14mm Retractable Reel Hose Repair Kit (or 12mm if your hose is standard size). Cut out the damaged section, insert the double-ended barb into both ends, and secure with the easy-fit connectors. Test retraction again. If the reel still won't retract, the issue is likely the internal spring.
- Symptom 3: Hose retracts slowly or not at all, even after fixing the stopper ball and hose.
Products that help
-

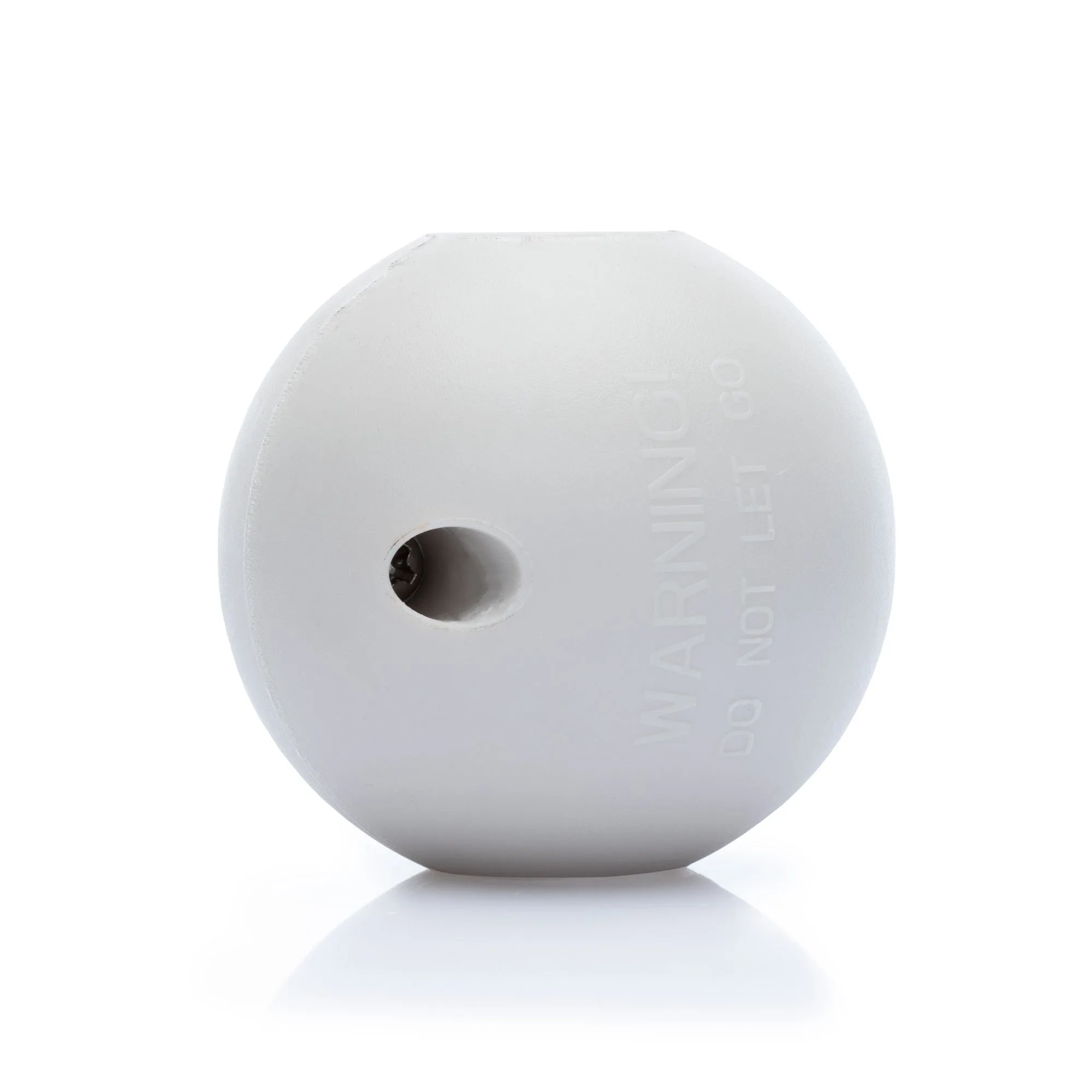

Hi-Flow Retractable Hose Reel Stopper Ball | 14mm | Classic Series: Replacement stopper balls are available for Classic Hoselink Retractable Hose Reels. The stopper ball becomes the stop point for the hose retracting; otherwise, it would retract right into the hose reel casing. If your stopper ball is damaged, replacing it with this spare part restores the correct retraction limit and prevents the hose from jamming inside the reel.
Hi-Flow Retractable Hose Reel Stopper Ball | 14mm | Classic Series
-

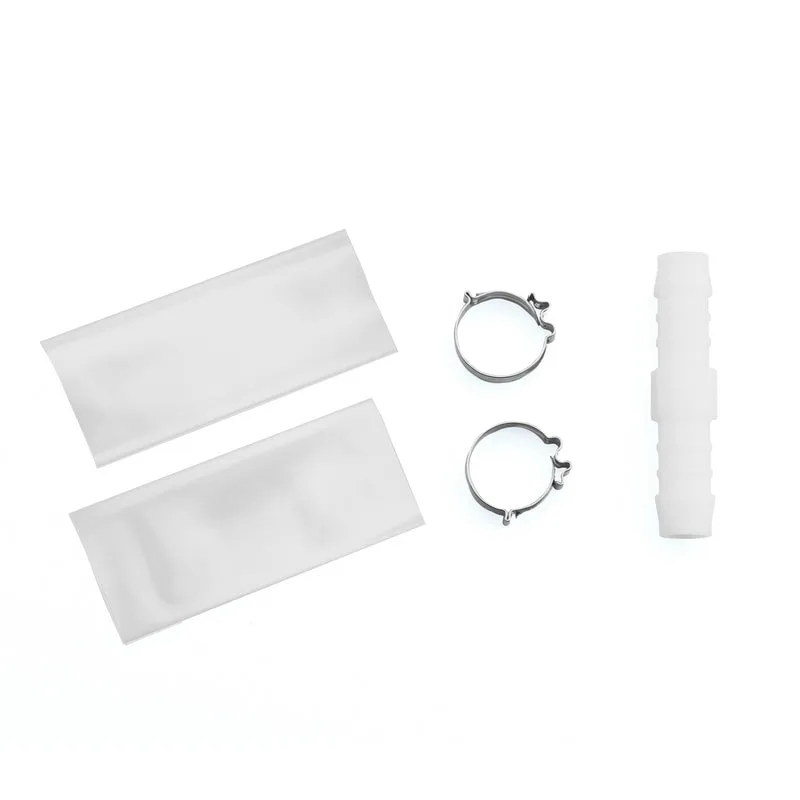

Retractable Reel Hose Repair Kit | Hi-flow 14mm | Classic Series: The 14mm Retractable Reel Hose Repair Kit lets you cut out and repair a damaged hose section so you can continue to use your hose reel. Includes a plastic double-ended barb and two easy-fit connectors. This kit is the most practical fix for a cut or chewed hose—no need to replace the entire reel, just the damaged section.
Retractable Reel Hose Repair Kit | Hi-flow 14mm | Classic Series
