Quick answer

If your impulse sprinkler spike won't rotate, the most likely cause is a blocked or worn trip arm mechanism or a misadjusted diffuser pin. Cleaning the arm and checking the spring tension usually restores rotation.

Why rotation stops

Impulse sprinklers rely on a spring-loaded trip arm that catches the water jet and pushes the head to the next position. When that arm gets stuck, the sprinkler stops rotating. The same happens if the diffuser pin is screwed in too far—it deflects the stream away from the arm.

Another common cause is debris lodged in the pivot point. Even a small grain of sand can jam the mechanism. The good news is that you can fix all of these without replacing the sprinkler.

Diagnosis and fix guide

  • Symptom: The sprinkler head stays in one position and does not rotate. The trip arm may be visibly stuck or moving sluggishly.
  • Most likely cause: The trip arm spring is weak or the arm is blocked by debris. Less common: the diffuser pin is screwed in too far, preventing the water jet from hitting the arm.
  • Corrective action 1 – Clean the trip arm: Turn off the water. Remove the sprinkler head from the spike. Rinse the arm and pivot area with clean water. Use a toothpick or soft brush to dislodge any grit. Reassemble and test. If rotation returns, you are done.
  • Corrective action 2 – Adjust the diffuser pin: Locate the small knurled knob (diffuser pin) near the nozzle. Turn it counter-clockwise a quarter turn to retract the pin. Test rotation. Repeat until the sprinkler rotates reliably. If rotation still fails, the spring may need replacement.
  • When to stop or replace: If cleaning and adjusting do not restore rotation, the internal spring has likely broken. At this point, replacing the sprinkler head is more practical than attempting a spring repair. The Impulse Sprinkler Spike is a good direct replacement for most standard impulse sprinklers. Replace the unit if the spring is broken.

Product facts

  • Impulse Sprinkler Spike: The Impulse Sprinkler Spike can be adjusted to cover from a 30-230-degree or 360-degree radius and reaches up to a 30m diameter depending on water pressure. If your sprinkler stops rotating, you lose that wide, even coverage. Fixing the rotation restores its ability to water large areas efficiently.

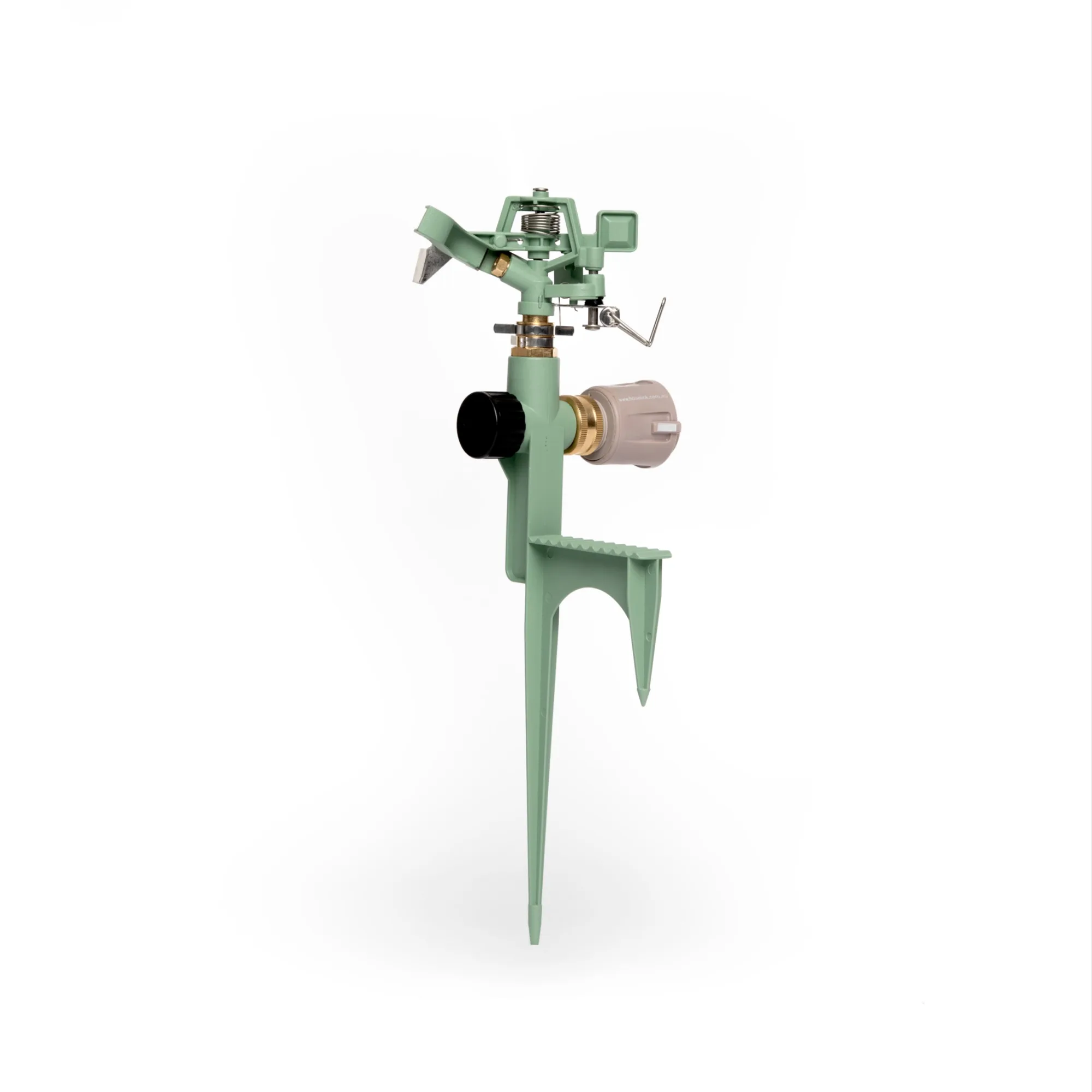

    Impulse Sprinkler Spike
