Quick answer

The control box assembly is the central electronic module that manages motor speed, direction, and emergency stop on your mini lathe. Without a functioning control box, your lathe won't run safely or reliably.

Why the control box matters for safety and precision

A mini lathe control box does more than just turn the motor on and off. It houses the motor controller, emergency stop switch, forward/reverse switch, and potentiometer for variable speed. This means you get fine control over spindle RPM and instant shutoff in an emergency—both essential for clean cuts and safe operation.

On 120V 7x10 and 7x12 C2 mini lathes, the control box is designed as a direct replacement for older FC250/110V, FC250BJ/110V, and FC250J/110V boards. If your lathe's electronics are failing or you're upgrading from a bare-bones setup, swapping in a fully assembled control box is the most straightforward fix.

Common questions about mini lathe control boxes

What does a control box assembly do?

It regulates motor speed (via the potentiometer), changes rotation direction (F/O/R switch), and provides an emergency stop. It also houses the fuse for overcurrent protection.

How do I know if my control box needs replacement?

Symptoms include erratic speed, no power, a stuck or unresponsive switch, or a blown fuse that keeps tripping. If the board itself is damaged, replacement is safer than repair. Always disconnect power before inspecting or replacing the control box.

Can I install a control box myself?

Yes—the assembly is pre-wired inside the box. You only need to connect the incoming power leads and the motor leads per the included diagram. No soldering or custom wiring is required. If you are not comfortable working with 120V circuits, have a qualified electrician do the hookup.

Product facts

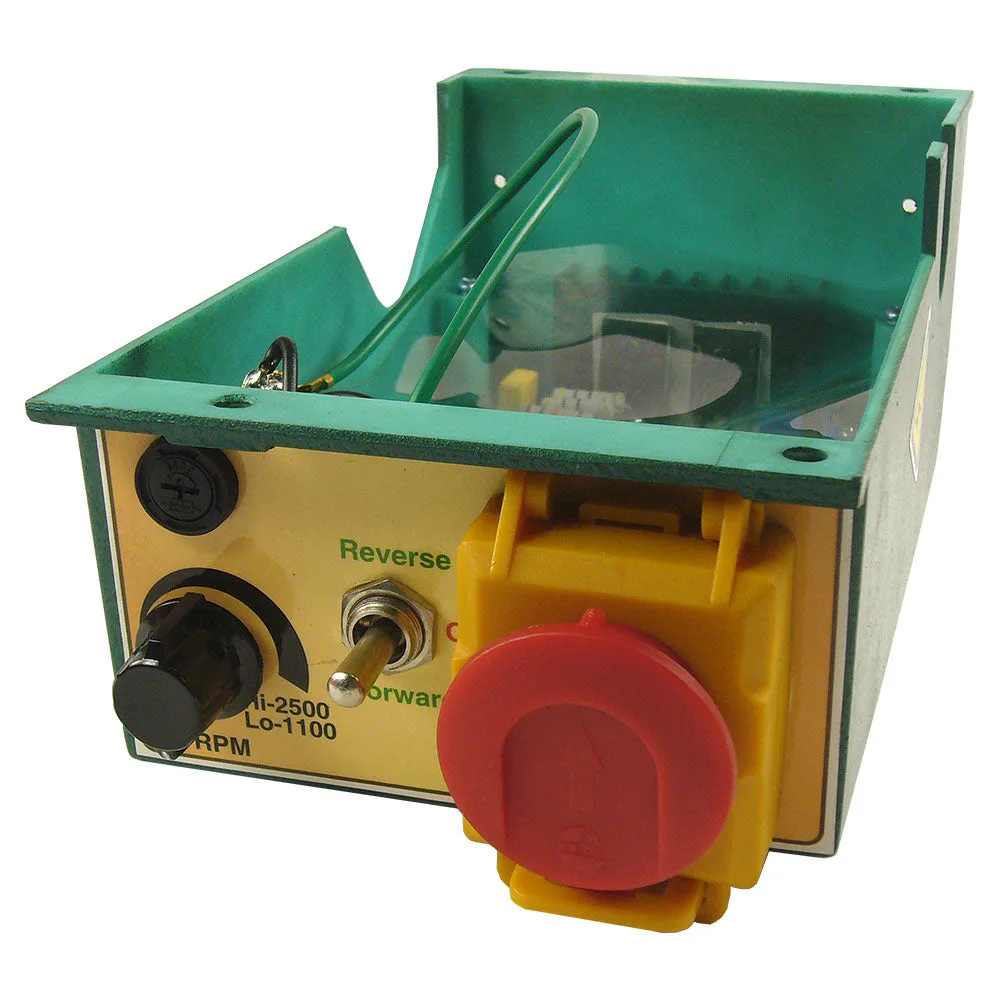

  • Control Box Assembly, Mini Lathe: This fully assembled control box includes the plastic housing, motor controller, emergency stop switch, F/O/R switch, potentiometer, fuse holder, and fuse. You get a complete drop-in replacement—no need to source or wire individual components. Just connect power and motor leads and start turning.
