Quick answer
If your water-cooled TIG torch is overheating, check coolant flow before you touch the torch. A kinked, pinched, or internally collapsed water cable is the most common cause, and a clogged or underfilled cooler is second. Start by confirming the cooler is full and circulating, then inspect the cable along its full length. If the cable is damaged, replace it with a properly matched water cable rather than trying to repair the hose.
Symptom check: torch body hot, cable hot, or both?
Where the heat shows up tells you where to look. A hot torch head with a cool return hose points to restricted flow inside the torch body or a partially blocked cable. A hot cable along its length usually means the cable is undersized for the amperage, kinked, or has a collapsed inner liner. A hot cooler with a cool torch means the cooler itself is struggling, not the torch.
torch head
Grab the return hose a few inches from the torch after a short weld. If it is warm but not hot, flow is probably moving. If it is cold or barely warm while the torch head is hot, coolant is not circulating through the torch, and the restriction is between the cooler and the torch head.
Cooler problems that mimic torch problems
Before you order parts, verify the cooler is actually doing its job. Low coolant level, a clogged filter, a failed pump, or a fan that is not spinning will all cause the torch to overheat even with a perfectly good cable. Check the coolant level with the machine off, then run the cooler and watch for steady return flow into the reservoir.
Coolant condition matters too. Old or contaminated coolant loses heat transfer ability and can leave deposits inside the cable. If the coolant looks cloudy, smells burnt, or has not been changed in a long time, flush the system and refill with the coolant the cooler manufacturer specifies. Do not substitute plain water for a torch cooler that requires a specific coolant blend.
Water cable inspection and replacement
Run your hand along the entire cable while it is disconnected. You are feeling for kinks, flat spots, stiff sections, or abrasion that exposes the braid. A cable that stays stiff in cold weather or has a visible bend that does not relax is a candidate for replacement. Internal collapse is harder to see, but it shows up as reduced flow even after you have confirmed the cooler is working.
Match the replacement cable to your torch series and length. A cable that is too long for the cooler's pump capacity will reduce flow, and a cable designed for a different torch series may not seal correctly at the torch end. If your torch is a 20, 23, or Trimline 18 Series water-cooled model, a super-flex water cable sized for that torch is the correct starting point. Note that the standard 18 series torch uses a different cable, so confirm your torch model before ordering.

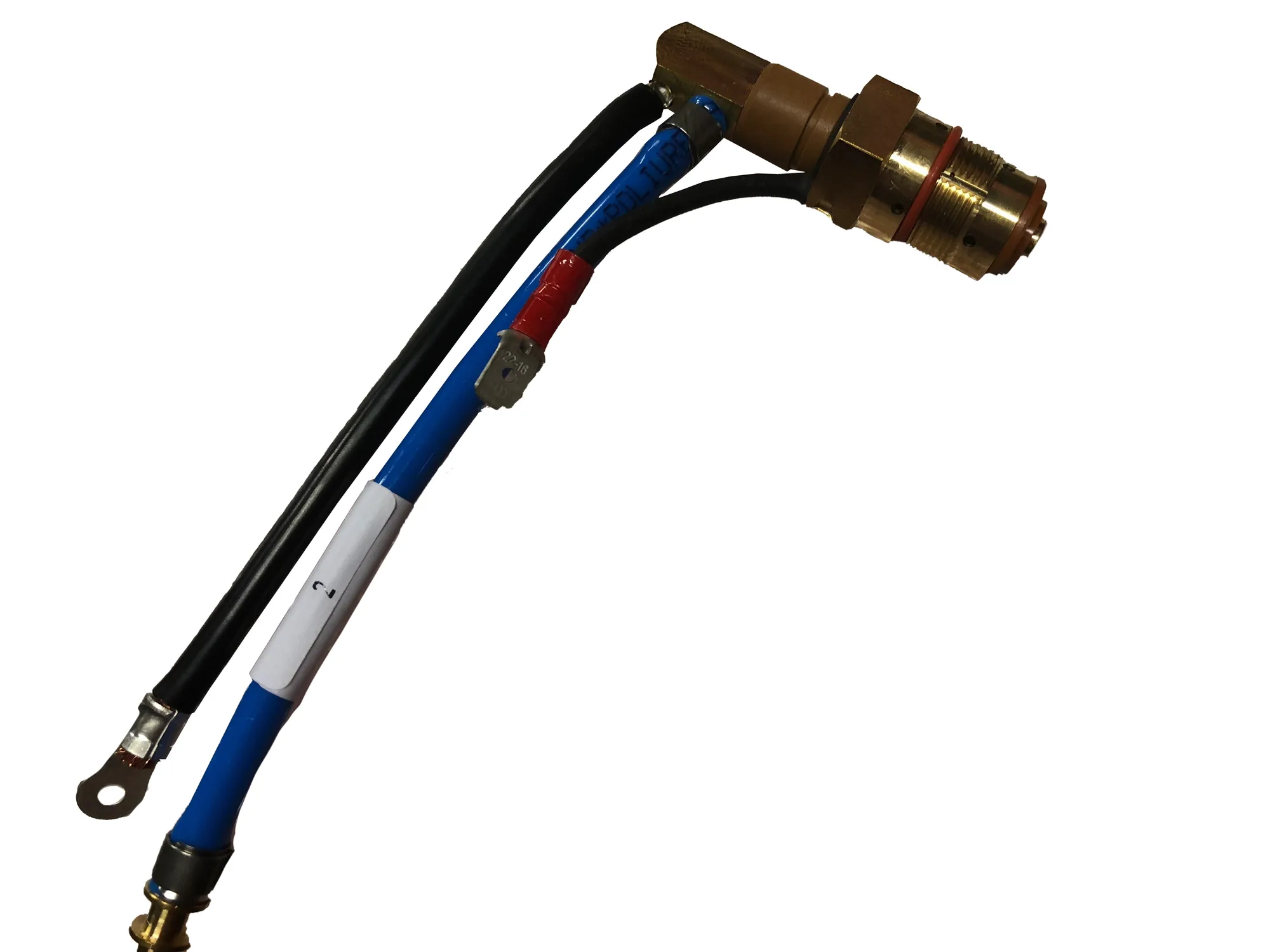

Connections, fittings, and adapters
Loose or mismatched fittings let air into the coolant loop, which reduces flow and can cause the torch to run hot even when the cooler is fine. Check the water return fitting at the torch and at the power supply. If you are adapting a water-cooled torch to a machine with a different connector style, use an adapter rated for that connection rather than forcing a fitting.
A 35 Dinse adapter with a 5/8"-18 LH water fitting is one example of a correct match for a water-cooled 18 or 20 series torch with a standard 7/8-14 LH male power cable fitting. Using the wrong adapter thread can cross-thread the fitting and create a slow leak that is easy to miss until the torch overheats.
When to stop and choose another option
If you have verified cooler flow, replaced the water cable, checked the fittings, and the torch still overheats at your normal amperage, the torch itself may be undersized for the job. A 125A air-cooled torch, for example, is not the right tool for sustained high-amperage welding. In that case, step up to a water-cooled torch with the correct cable and cooler capacity instead of continuing to chase a cooling problem that is really a duty-cycle problem.
Stop and reassess if you see coolant leaking from the torch head, if the cable is hot enough to be uncomfortable to hold, or if the cooler repeatedly trips or shuts down. Those are signs of a mismatch or a failed component, not something a minor adjustment will fix.
Diagnosis: match the symptom to the fix
- Torch head hot, return hose cool: Coolant is not moving through the torch. Check cooler level and pump first, then inspect the cable for kinks or internal collapse. If flow returns after clearing a kink, the cable is fine. If not, replace the water cable.
- Cable hot along its length: The cable is likely undersized, kinked, or has a collapsed liner. Confirm it matches your torch series and amperage. A cable that stays stiff or has flat spots should be replaced, not repaired.
- Cooler hot, torch normal: The cooler is not shedding heat. Check coolant level, coolant condition, filter, and fan operation. Flush and refill with the specified coolant before replacing torch parts.
- Everything checks out but it still overheats: The torch may be undersized for your amperage or duty cycle. A 125A air-cooled torch is not a substitute for a water-cooled setup at high amperage. Stop chasing cooling fixes and move to a properly rated water-cooled torch and cable.
Parts that solve common cooling problems
- Super-Flex Water Cable for 20, 23 & Trimline 18 Series Water-Cooled TIG Torches: Super-flex water cable for 20, 23 and Trimline 18 Series water-cooled TIG torches, available in 12.5' and 25' lengths. It will not work with the standard 18 series torch. If your torch is a 20, 23, or Trimline 18 Series and the cable is kinked or collapsed, this is the correct replacement. Confirm your torch model first, because the standard 18 series uses a different cable.
- 35 Dinse (1/2") Adapter with 5/8"-18 LH Water Fitting for 20 Series TIG Torches: 35 Dinse (1/2") adapter with a 5/8"-18 LH water fitting for 20 Series TIG torches, connecting a water-cooled 18 or 20 series torch with a standard 7/8-14 LH male power cable fitting to a welder with a 35 Dinse connection. It is for a torch with side gas only. A correct adapter prevents air leaks and cross-threading at the power supply connection, which are hidden causes of reduced coolant flow and overheating.
- 9 Series (125A) Air-Cooled Torch w/25 Dinse & 5/8"-18 RH Gas Fitting: 9 Series (125A) air-cooled TIG torch with a 25 Dinse (3/8" OD) power/current supply and a 5/8"-18 RH gas fitting, with a one-piece flexible silicon rubber hose and nylon braided weave overlay. If your overheating problem is really a duty-cycle problem at higher amperage, an air-cooled torch like this is a step in the wrong direction. Use it as a reference for what your water-cooled setup should outperform.
