Quick Guide

Paint and weather your 1/12 Han Solo Stormtrooper to match the iconic disguise from Star Wars, using basic techniques that bring out the armor's worn look.

Why Weathering Matters for This Kit

The 1/12 Han Solo Stormtrooper captures the disguise worn by Han Solo, which in the films appears battle-worn and scuffed. Adding weather effects transforms a clean build into a screen-accurate display piece. Because the kit is molded in white plastic, painting and weathering also hide seam lines and enhance detail depth.

Step-by-Step Painting and Weathering Process

  1. 1. Prepare the Kit: Snip parts from runners, clean nubs with a hobby knife, and sand smooth. Dry-fit pieces to check fit before gluing. Common mistake: skipping sanding leads to visible nub marks after painting. Use fine-grit sandpaper (600-800) for a smooth surface.
  2. 2. Apply Primer: Spray or brush a thin coat of white or gray primer over all armor parts. This helps paint adhere and reveals any remaining surface imperfections. Wait 24 hours for full cure. Common mistake: thick primer obscures detail. Multiple thin coats are better than one heavy coat.
  3. 3. Base Coat White: Airbrush or hand-paint a flat white acrylic or lacquer. Two thin coats give an even, opaque finish. Let each coat dry before the next. Common mistake: gloss white looks too shiny for a stormtrooper; use matte or flat white. Thin your paint to the consistency of skim milk for even coverage.
  4. 4. Panel Lining: Apply a dark gray or black panel liner wash into recessed lines. Wipe excess with a damp cotton swab. This defines armor panels. Common mistake: using pure black can look too harsh; a dark gray is more realistic. A Tamiya Panel Line Accent or homemade oil wash works best.
  5. 5. Chipping and Scratches: Use a small brush or sponge to dab dark gray and brown paint on edges and high points. Simulate scuffs and scratches where armor would wear. Common mistake: over-chipping makes the figure look messy; less is more. Reference film stills for realistic wear patterns.
  6. 6. Dust and Grime Wash: Mix a thin brown or dark earth wash (paint heavily thinned with water or thinner) and brush it over the lower legs and arms. Wipe away from raised areas, leaving residue in crevices. Common mistake: using too much wash pools in details and hides them. Seal with a matte clear coat after the wash dries.
  7. 7. Final Seal and Display: Spray a matte clear varnish to protect the paint and unify the finish. Once dry, assemble the figure and pose. Common mistake: gloss varnish ruins the matte look; always choose matte. Display away from direct sunlight to prevent yellowing.

Kit Highlights

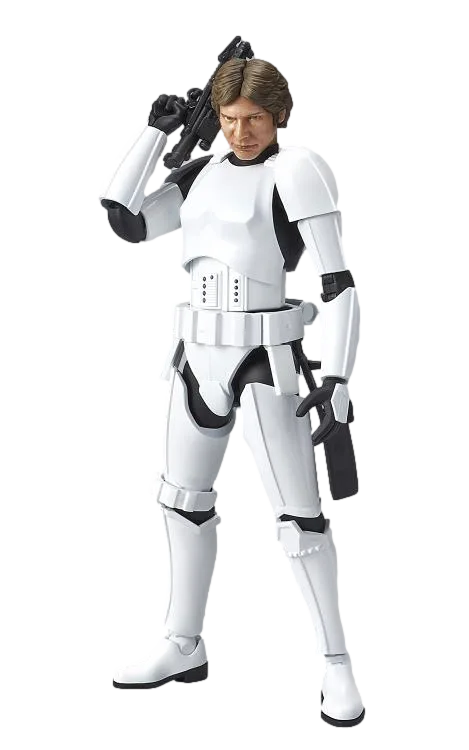

  • 1/12 Han Solo Stormtrooper: 1/12 scale model kit of Han Solo in Stormtrooper armor from Bandai. The pre-colored white plastic is a good base but benefits from painting to replicate the weathered, dirty look seen on screen.
