Quick Answer
Install your AK side mount by attaching it to the rifle's side rail, tightening the locking lever, and then mounting your optic on the top rail. The key is getting the mount snug without over-torquing.
Why the Side Mount Matters for AK Accuracy
AK rifles typically lack a continuous top rail, making a side mount the most stable way to add a scope or red dot. A solid mount keeps your optic from shifting under recoil and allows you to remove and reattach the mount without losing zero.
The TPO AK side mounts are machined from 6061-T6 aluminum and feature multiple rail slots for positioning flexibility. The 12-slot top rail gives you plenty of room to adjust eye relief.
What You Need Before You Start
You'll need your AK side mount (the mount plate is already on the rifle for most AK models), a flathead screwdriver or Allen key (depending on the mount), and a torque wrench if you want to be precise. Also have your optic and rings ready.
Step-by-Step AK Side Mount Installation
- 1. Prepare the Rifle and Mount: Ensure the rifle is unloaded and the side rail on the receiver is clean and free of debris. Slide the mount onto the rail from the rear, engaging the locking lug in the notch on the rail. Check that the mount sits flush against the receiver; any gap means it's not fully seated.
- 2. Tighten the Locking Lever: Turn the locking lever clockwise until it contacts the rail firmly. Use a flathead screwdriver or Allen key to apply final torque—just enough that the mount won't shift when you push on it. Do not overtighten. Overtightening can distort the mount or damage the rail. Snug is enough.
- 3. Mount Your Optic: Attach your scope rings or red dot base to the top rail. Position the optic so you have comfortable eye relief when shouldering the rifle. Tighten ring screws evenly in a crisscross pattern to the manufacturer's torque spec. If you plan to remove the mount often, mark the ring positions with a pencil for quick reinstallation.
- 4. Test for Stability and Zero: Cycle the action and dry-fire (safely) to check that nothing interferes. Take the rifle to the range and fire a few rounds to confirm zero. If the mount shifts, remove it, clean the rail, and reinstall with slightly more torque. After zeroing, remove and reattach the mount a few times at home to verify your zero returns consistently.
Mount Options from Texas Precision Optics
-

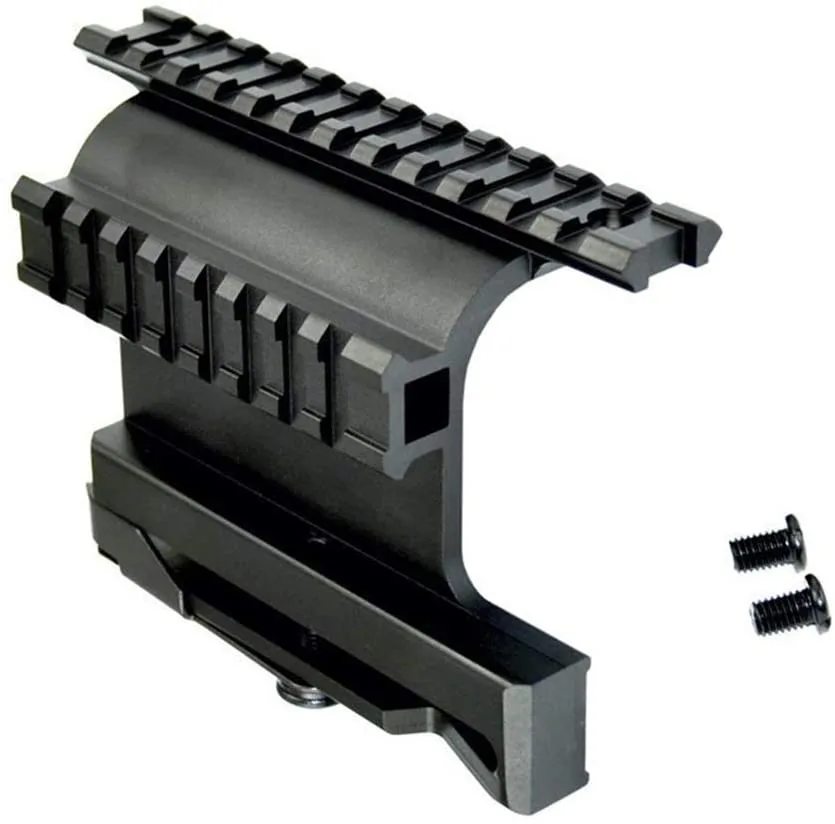

TPO AK Side Mount AK Accessory Side Scope Mount SD-001MT: 12 slots top rail and 8 slots side rail. The extra side rail slots let you position the mount farther forward or backward to match your eye relief perfectly.
TPO AK Side Mount AK Accessory Side Scope Mount SD-001MT
-

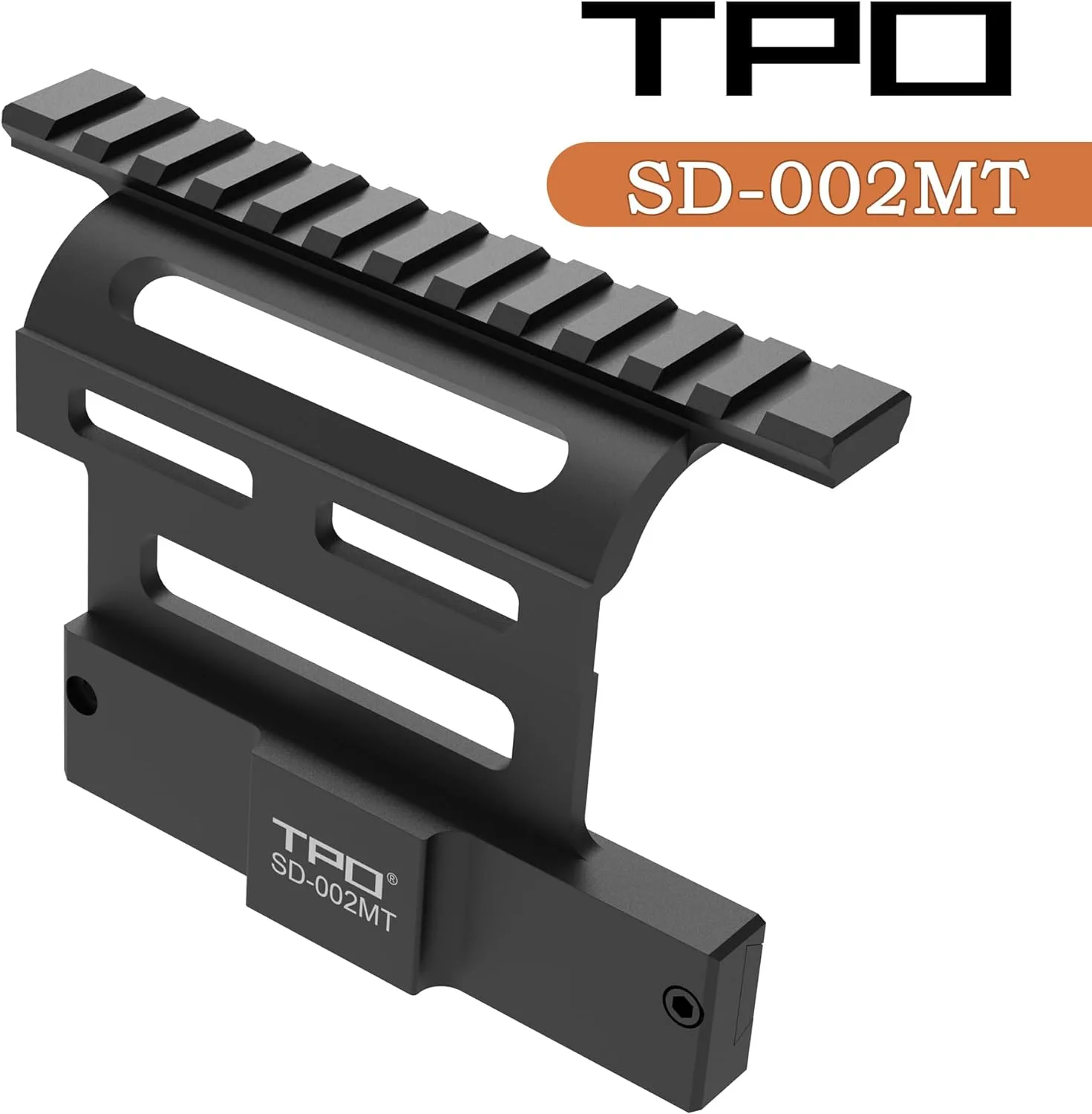

TPO AK Side Mount AK Accessory w/ M-Lok Base: 12 slots top rail with M-Lok slots for attaching accessories. M-Lok slots let you attach a flashlight or laser directly to the mount without extra adapters.
TPO AK Side Mount AK Accessory w/ M-Lok Base
