Quick answer
For a true AR15 pistol build with a barrel under 10.5 inches, you need a pistol length gas tube (6.75 inches). Carbine tubes are longer and won't align with the gas port on short barrels.
Why gas tube length matters
The gas tube length must match your barrel's gas port location. A pistol length gas tube is designed for barrels roughly 7.5 to 10.5 inches, while carbine tubes fit barrels around 14.5 to 16 inches. Using the wrong tube can cause cycling failures or damage.
Pistol vs carbine: the key difference
A pistol length gas tube measures 6.75 inches from flange to tip. Carbine tubes are about 9.75 inches. The shorter tube delivers gas pressure to the bolt carrier sooner, which is necessary for the shorter dwell time of a pistol barrel. The tradeoff is a sharper recoil impulse and more gas blowback compared to a carbine system.
Pistol vs carbine gas tube tradeoffs
- Pistol length (6.75"): Required for barrels 7.5" to 10.5". Provides correct gas timing for short dwell time. Sharper recoil, more gas to the face.
- Carbine length (9.75"): Designed for barrels 14.5" to 16". Smoother cycling, less gas blowback. Will not function on a pistol barrel.
- Mil-Spec compatibility: Mil-Spec tubes like the 6.75" pistol tube fit standard AR15 gas blocks and bolt carriers. Commercial-spec tubes may have slight tolerance differences. Always verify your gas block and tube are the same specification (Mil-Spec or commercial) to avoid fit issues.
Product facts
-

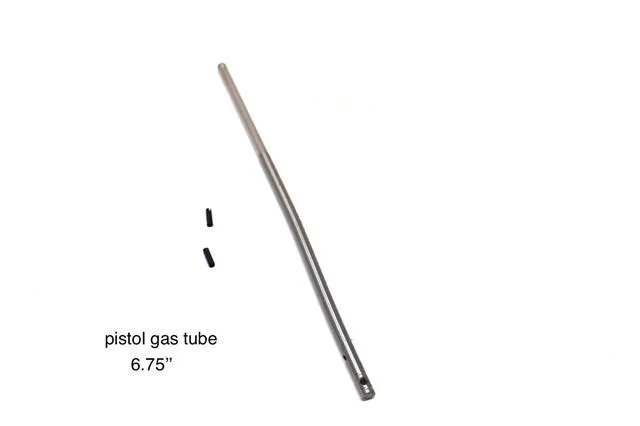

AR15 Pistol Length Gas Tube Mil Spec 6.75": 6.75 inch Pistol length gas tube made of stainless steel with strict Mil-Spec dimensions, includes roll pin. Mil-Spec dimensions ensure a drop-in fit with standard AR15 upper receivers and bolt carriers, and stainless steel resists corrosion better than standard carbon steel.
AR15 Pistol Length Gas Tube Mil Spec 6.75"
Which gas tube fits your build?
Choose pistol length when
- Building an AR15 pistol with a barrel 7.5 to 10.5 inches
- Replacing a worn or incorrect gas tube on a pistol-length upper
Avoid pistol length when
- Building a rifle with a barrel 14.5 inches or longer
- You want the smoothest possible cycling and minimal gas blowback
