Quick answer

If your GameCube loses the time and date every time you unplug it, the soldered clock battery is the usual cause. A replaceable battery holder mod is the right buy when you can solder and want to swap a CR2032 yourself later. If you cannot solder, or you want the job done and tested for you, a send-in service is the better route. Buy the holder only after confirming your console model and whether the battery is already socketed.

Why the clock dies and what the holder actually changes

The GameCube keeps its clock and calendar alive with a small coin cell on the mainboard. When that cell drains, the console still plays games, but it forgets the time and date as soon as power is removed. That is the classic GameCube time not saving symptom, and it is a battery problem, not a save-file problem.

A replaceable battery holder mod replaces the soldered-in cell with a socket. The practical win is future-proofing: instead of desoldering a battery again in a few years, you open the shell and drop in a fresh CR2032. The holder itself does not change how the console reads the battery, so it will not fix save corruption or a dead controller port.

What to confirm before you buy a holder

Fit is the first decision point. The holder must match the battery footprint and clearance inside your specific GameCube revision, and it has to sit flat enough that the shell closes without pressure on the board. If you are unsure which revision you own, check the model label on the bottom of the console before ordering.

The second point is whether your console already has a socket. Some units have been serviced before, and a previous owner may have already installed a holder. Opening the shell and looking at the battery area takes five minutes and prevents buying a part you do not need. If the battery is soldered to the board, you need a holder. If it is already in a clip, you only need a fresh cell.

CR2032 choices and realistic expectations

Most GameCube holder mods are built around a standard CR2032 coin cell. That is convenient because CR2032 cells are cheap and widely available, but not all cells behave the same. Brand-name cells tend to hold voltage longer, while bargain cells may read low sooner. Whichever you fit, the clock will still drift over time, so expect to reset the time and date after a battery change.

Do not assume a holder mod adds new features. It does not add a charging circuit, it does not make the battery rechargeable, and it does not change how the console handles game saves. Treat it as a maintenance upgrade: the goal is a console that keeps time and is easy to service next time.

Tools and process for a clean install

You will need a GameCube-specific screwdriver, a soldering iron with a fine tip, solder, and a way to remove old solder from the battery pads. Work on a clean, static-safe surface, and take photos before you desolder anything so reassembly is straightforward. The holder has a polarity marking, and reversing it will not work, so match the positive and negative pads to the board silkscreen.

If the old battery is soldered in, wick or suction the old solder away before fitting the holder. Forcing the holder into cold, uneven solder is the most common cause of a weak connection. After soldering, check continuity with a multimeter, then reassemble and set the clock before you judge whether the fix worked.

When a send-in service makes more sense

Soldering a small board is not for everyone, and a lifted pad can turn a simple repair into a bigger job. If you do not own an iron, or you would rather not practice on your own console, a send-in service removes that risk. You pay once, ship the console, and it comes back when the work is complete, with return shipping calculated at checkout.

Send-in services also make sense when you want more than a battery fix in one trip. If your console needs a screen or display upgrade on a handheld, or you want several mods done together, bundling the work avoids paying shipping twice. The trade-off is turnaround time: you are without the console while it is in the shop.

Decision rules for your GameCube battery fix

  • Rule 1: Confirm the symptom before buying: If the console only loses time and date after being unplugged, the clock battery is the likely cause. If games fail to save or load, that is a different fault and a battery holder will not fix it. Match the part to the symptom first.
  • Rule 2: Check whether the battery is already socketed: Open the shell and look. A soldered cell means you need a holder. A cell already in a clip means you only need a fresh CR2032. Do not buy a holder you do not need.
  • Rule 3: Choose DIY or send-in based on your soldering confidence: If you own a fine-tip iron and are comfortable removing old solder, a holder is the cheaper long-term route. If not, a send-in service avoids the risk of lifting a pad. Pick the route you can finish cleanly.
  • Rule 4: Buy the cell after the holder is fitted: Fit and test the holder first, then install a fresh CR2032. This separates a bad holder connection from a weak battery if the clock still fails. One variable at a time makes troubleshooting faster.

Parts and services to know

  • GameCube Replaceable Battery Holder Mod: The GameCube Replaceable Battery Holder Mod is a specialized component for customization and repair projects, intended for compatible GameCube hardware. This is the part that converts a soldered clock cell into a user-serviceable socket, so you can change the battery without soldering again.
  • GDEMU Sega Dreamcast V5.20 New Model ODE Optical Drive Board USA: The GDEMU Sega Dreamcast V5.20 ODE is an optical drive emulator board that installs without soldering or console modification, and it can be updated, though the update process is complicated and an error can brick the product. If you are already opening a Dreamcast for other work, this is a no-solder alternative to disc drives, but only attempt firmware updates if you accept the risk.

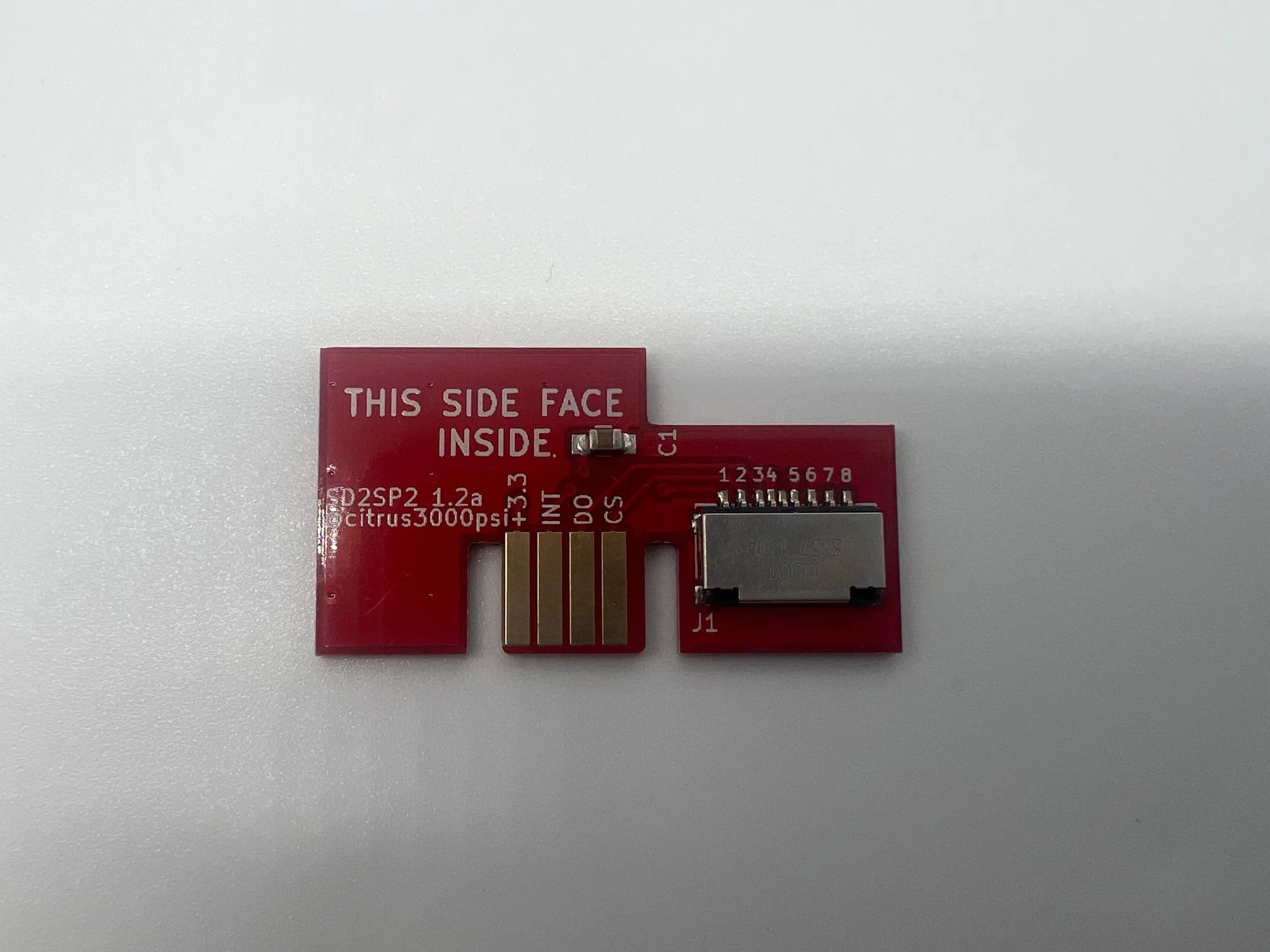

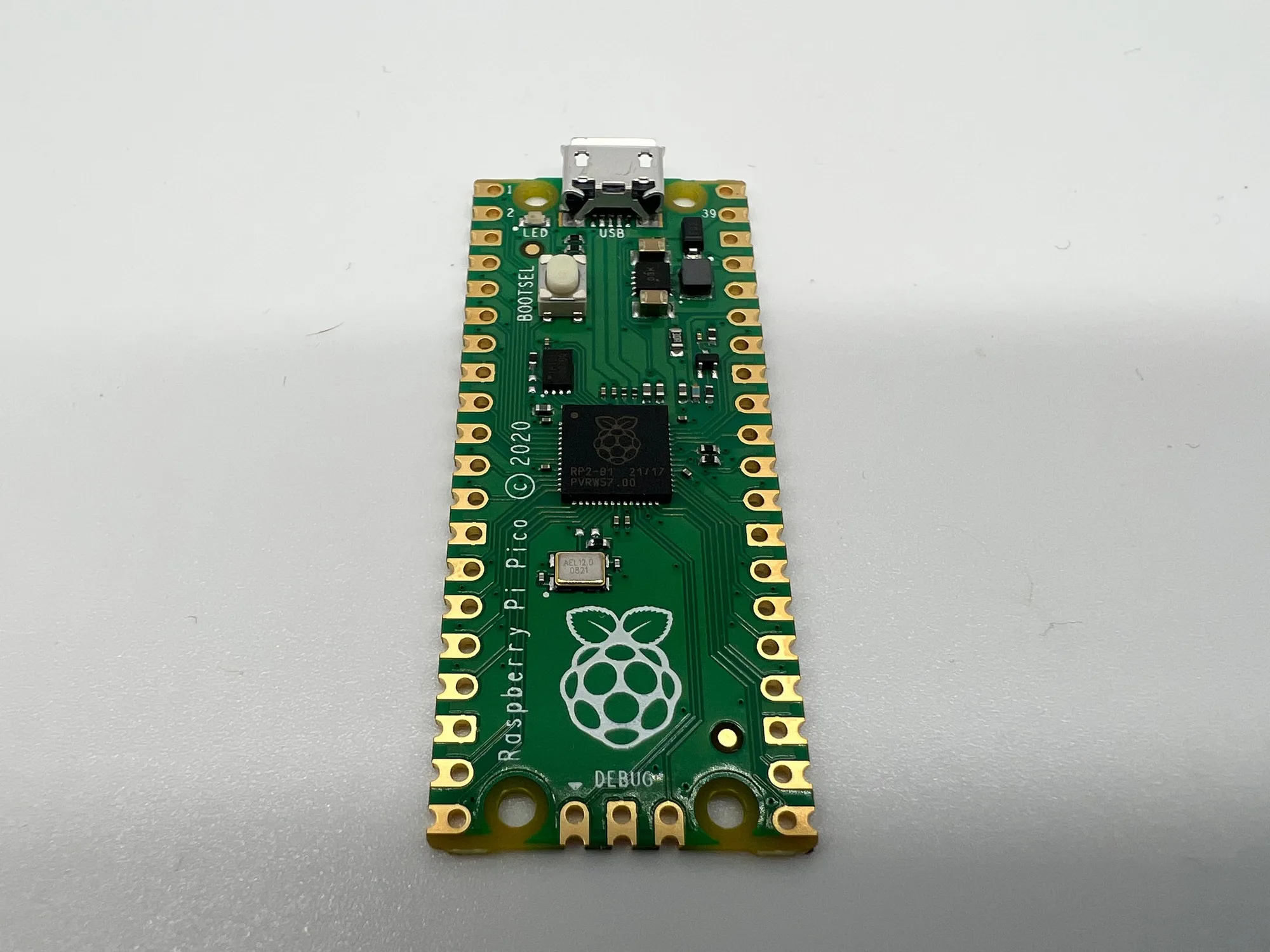

  • Raspberry Pi PicoBoot: Raspberry Pi PicoBoot is used for Nintendo GameCube Homebrew booting and requires an SD2SP2 alongside it to boot into Homebrew such as Swiss. A battery holder fixes the clock; PicoBoot changes what the console can run. They solve different problems, so do not buy one expecting the other.

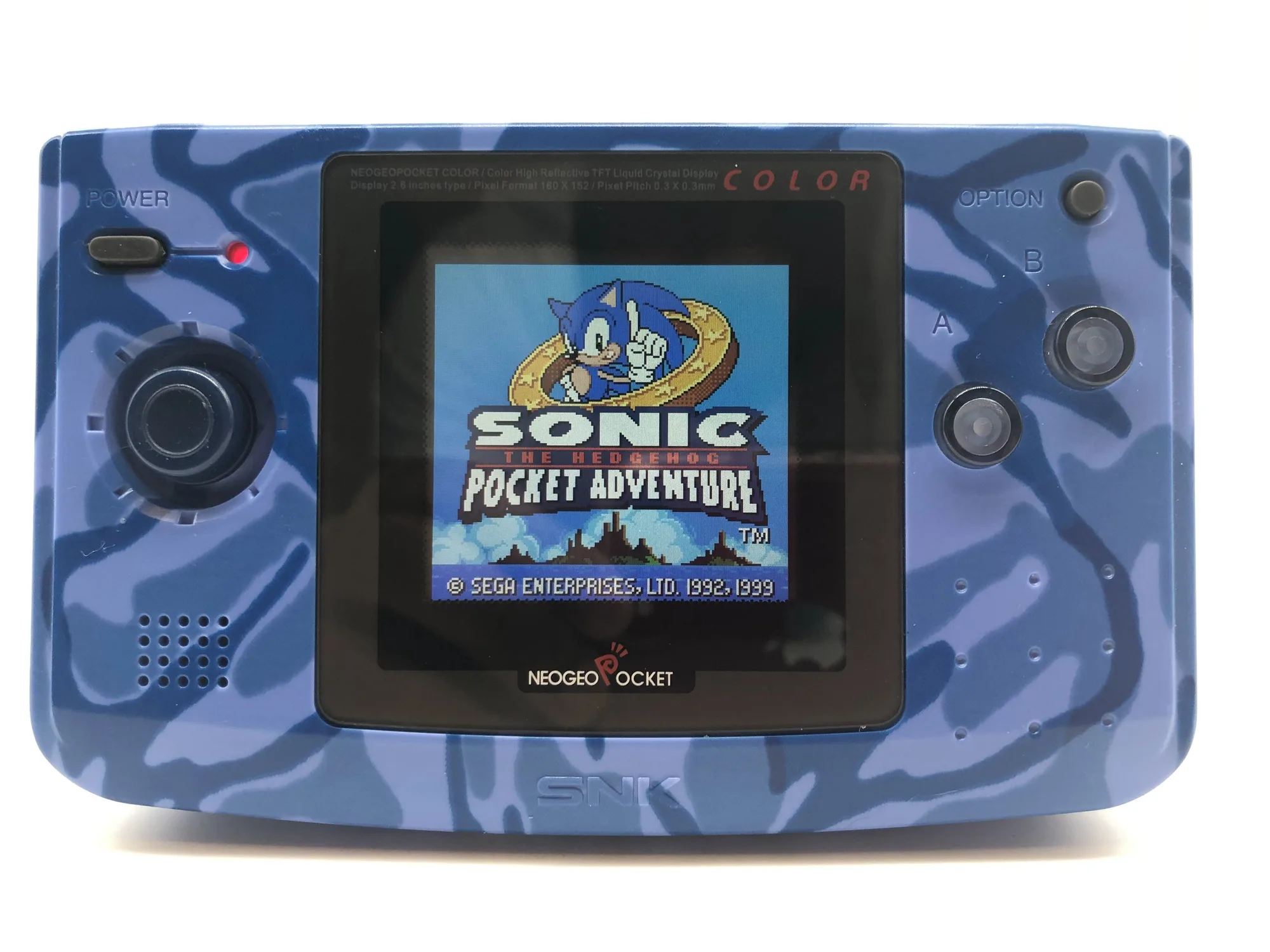

  • SNK Neo Geo Pocket Color Mod Services: SNK Neo Geo Pocket Color Mod Services is a send-in modification service with add-on options, where you pay once, ship your console, and it is shipped back when service is complete, with return shipping calculated at checkout. This is the model to compare if you would rather not solder your own GameCube: you ship the unit and the work is done for you.

Who this is for

Best for

  • Owners of a GameCube with a soldered clock battery who can solder and want easy future battery changes
  • Tinkerers who already open consoles for other mods and want a maintenance upgrade in the same session
  • Buyers who want to stop resetting the time and date every time the console is unplugged

Not for

  • Anyone whose console has save corruption or controller port faults, which a battery holder will not fix
  • Owners who cannot solder and do not want to practice on their own board; a send-in service is the better choice
  • Consoles that already have a socketed battery, where only a fresh CR2032 is needed
