Quick answer
Choose a power supply that matches your device's voltage and connector requirements, then decide whether an external unit improves noise isolation or adds features your internal supply lacks.
Why consider an external power supply?
Many DACs and headphone amplifiers come with a built-in switching power supply or a basic wall wart. Upgrading to a dedicated external unit can reduce electrical noise, provide cleaner voltage rails, and sometimes unlock higher performance from the audio circuit. However, not every device benefits equally—some are already well-filtered internally, and an external supply may offer no audible improvement.
Key trade-offs to know
An external power supply adds cost and desk clutter. It also introduces a potential failure point (cables, connectors). Before buying, confirm that your device has a dedicated power input that accepts an external supply—many portable units charge via USB and cannot use a separate power source while running on battery. Also check polarity and voltage: using the wrong supply can damage your gear.
Steps to choose the right power supply
- Check your device's power input: Look at the back or bottom of your DAC or amp for a DC input jack (often 2.1mm or 2.5mm barrel, sometimes a multi-pin connector). If the device only has a USB-C or micro-USB port for power, it likely cannot use an external linear supply unless the manufacturer specifically supports it. Common mistake: assuming any DC barrel plug fits. Measure the barrel diameter and polarity before ordering.
- Match voltage and current requirements: Find the required voltage (e.g., 12V, 15V, 24V) and minimum current (e.g., 1A, 2A) printed on the original power adapter or in the manual. Your external supply must meet or exceed both—too low voltage won't power the device, and too low current may cause shutdowns or noise. Checkpoint: a higher current rating (e.g., 3A vs 1A) is safe and often beneficial; voltage must match exactly.
- Decide between linear and switching: Linear power supplies (like the Aune BP1) generally produce less high-frequency noise and are preferred for sensitive analog circuits. Switching supplies are smaller and cheaper but can inject ripple into the audio path. If your device already has good internal regulation, a switching supply may be fine. Common mistake: assuming a linear supply always sounds better. Some modern switching supplies are very clean and cost less.
- Consider connector compatibility and cable quality: If your device uses a non-standard connector (like the 5-pin on the BX2 Magnum or the proprietary 4-pin on Ferrum Hypsos), you'll need the matching cable. The Ferrum DC Jack Power Cable, for example, adapts Hypsos to standard barrel jacks. A high-quality cable with proper shielding reduces noise pickup. Checkpoint: verify the connector type and polarity before buying any cable or supply.
- Evaluate whether you need extra features: Some external supplies add features like adjustable voltage, multiple outputs, or a dedicated ground lift. For example, the Chord 2yu adds a digital output to the 2go streamer, which may be more useful than a pure power supply if your goal is to connect to a different DAC. Focus on what solves your actual problem. Common mistake: buying a power supply for a device that already has excellent internal regulation—you may hear no difference.
Products mentioned in this guide
-
Aune Audio BP1 External Power Supply: The Aune BP1 is an external power supply built for the BX2 Magnum portable headphone amplifier, feeding it +15V, -15V, and +5V through a 5-pin connector. It takes the internal battery out of the loop for desktop listening and gives the analog circuit higher voltage rails, allowing the amplifier to reach its full performance.
Aune Audio BP1 External Power Supply
-

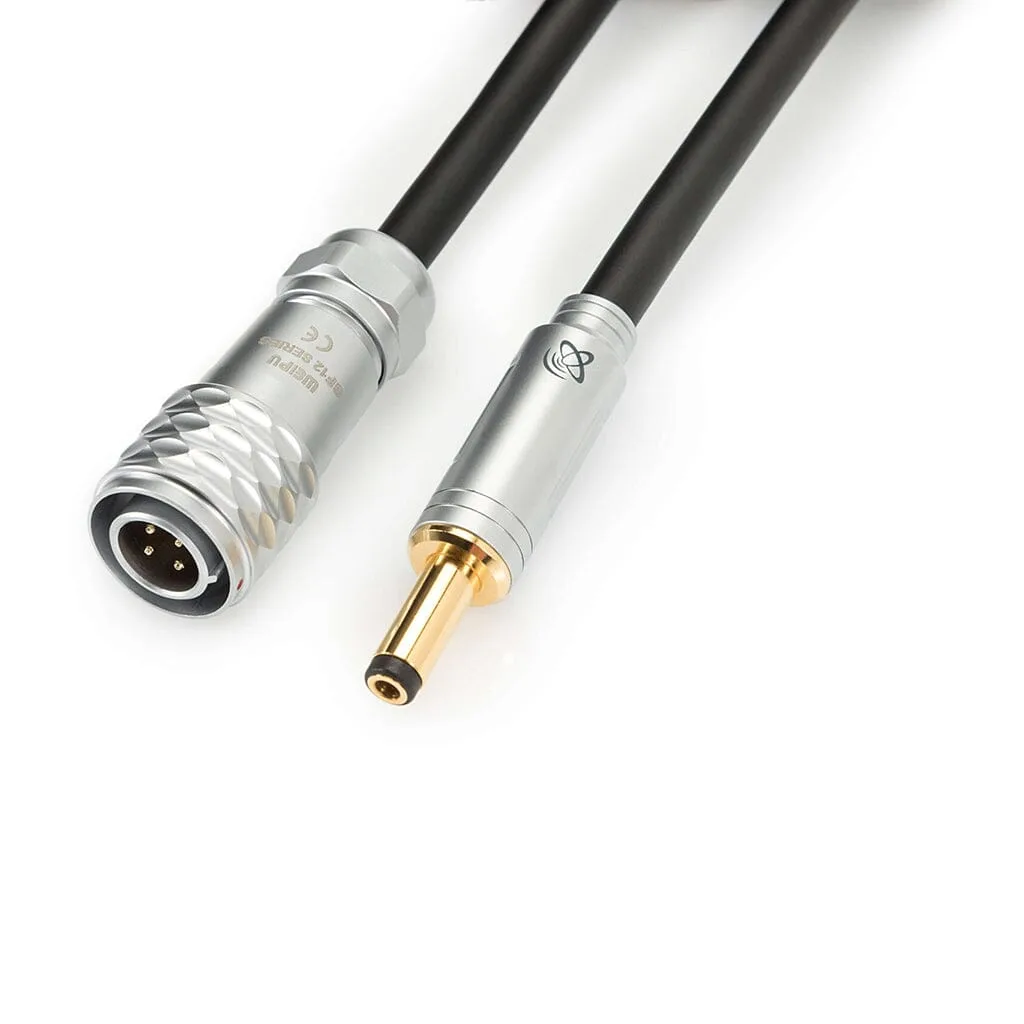

Ferrum DC Jack Power Cable for Hypsos: The Ferrum DC Jack Power Cable for Hypsos is a general DC cable with a proprietary 4-pin connector to Hypsos and a robust DC jack available in 2.1mm or 2.5mm barrel width. It lets you connect a Hypsos power supply to devices that use standard barrel jacks, expanding compatibility beyond Ferrum's own components.
Ferrum DC Jack Power Cable for Hypsos
-

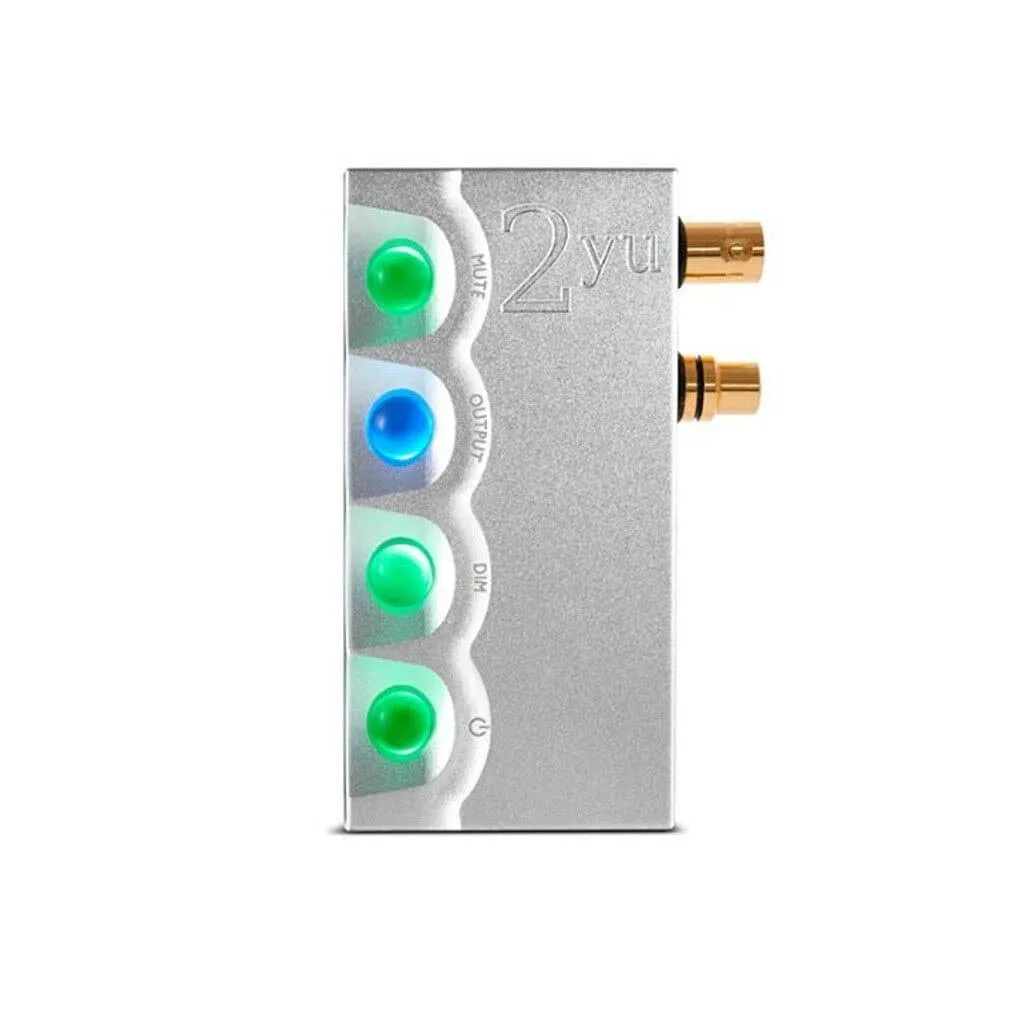

Chord Electronics 2yu: The Chord 2yu is a digital interface that broadens the capabilities of the 2go streamer/server, offering seamless integration with external DACs and the Hugo M Scaler. If you use a 2go, the 2yu adds a dedicated digital output so you can connect to a wider range of DACs without relying on the 2go's internal output stage.
