Quick answer
Mounting the SmallRig Half Cage 3639 on your Sony A7 IV takes about five minutes. The key is to align the camera body with the cage baseplate and tighten the locking side plates evenly.
Why a half cage instead of a full cage
A half cage leaves the top and right side of the camera open, so you can still attach a top handle, microphone, or monitor without blocking the camera's controls. It also keeps the weight lower than a full cage, which matters if you shoot handheld for long periods.
What you need before you start
You will need the SmallRig Half Cage 3639, a compatible Sony A7 IV body (or A7S III, A1, A7R IV), and the included hex key. No extra tools are required. The cage comes with two locking side plates and a bottom 1/4-inch-20 screw that secures the camera.
Installation steps
- 1. Remove the baseplate screws: Unscrew the two side-plate screws from the cage baseplate using the included hex key. Set the screws aside. Do not remove the bottom 1/4-inch-20 screw yet. Common mistake: losing the small screws. Keep them in a tray or magnetic mat.
- 2. Attach the baseplate to the camera: Align the camera's tripod socket with the bottom 1/4-inch-20 screw on the cage baseplate. Tighten the screw firmly but gently using the hex key. Do not overtighten. Check that the camera sits flat against the baseplate before tightening fully.
- 3. Slide on the side plates: Slide each locking side plate into the grooves on the baseplate until they click into place. The plates should fit snugly against the camera body without forcing them. If the side plates don't slide easily, check that the camera is seated correctly on the baseplate.
- 4. Tighten the side-plate screws: Reinsert the two side-plate screws you removed earlier and tighten them with the hex key. Alternate between the two screws to ensure even pressure. Overtightening can strip the threads. Stop when you feel resistance.
- 5. Verify the fit: Try to twist the camera gently inside the cage. There should be no movement. If the camera shifts, loosen the side-plate screws slightly, reposition the camera, and retighten. If the camera still moves, check that the bottom screw is fully seated.
Product details
-

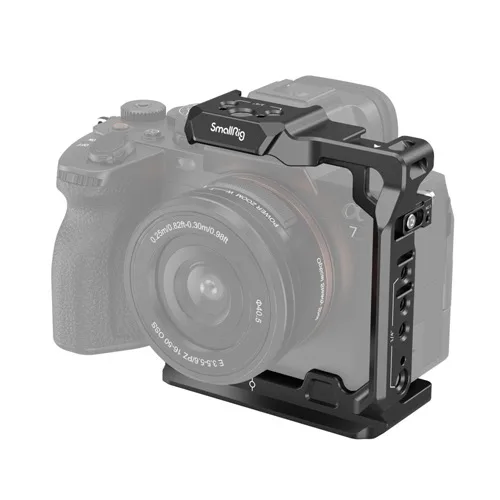

SmallRig Half Cage for Sony 7 IV/7S III/1/7R IV 3639: The cage uses two locking side plates and a bottom 1/4-inch-20 screw to prevent the camera from twisting or deflecting during use. This design keeps the camera securely in place even when you attach a heavy lens or use a shoulder rig.
SmallRig Half Cage for Sony 7 IV/7S III/1/7R IV 3639
