Quick answer

To mount a Kydex sheath, first choose your carry position—belt, MOLLE, or inside the waistband. Then select the right hardware: belt loops or clips for belts, MALICE clips or straps for MOLLE, and pull-the-dot loops or soft loops for IWB. Attach the hardware to the sheath's eyelets, test retention, and adjust as needed. Always verify the sheath is secure and the blade draws smoothly before carrying.

Choose your carry position first

Before you buy hardware, decide where you'll carry the knife most often. Belt carry keeps the knife accessible on your hip or behind your back and works with most pants. MOLLE mounting attaches the sheath to a pack, vest, or range belt for tactical or outdoor use. Inside-the-waistband (IWB) carry hides the knife under a shirt for discrete everyday carry. Each position demands different hardware and has tradeoffs in comfort, speed, and concealment.

Gather the right sheath mount hardware

Most Kydex sheaths use eyelets spaced for common mounting patterns. You'll need hardware that matches those eyelets: belt loops (leather or nylon), belt clips (metal or polymer), MOLLE straps (like MALICE clips or short MALICE), and IWB loops (pull-the-dot or soft loops). Some sheaths come with hardware; others require you to buy it separately. Check your sheath's eyelet spacing and hole diameter before ordering—standard sizes are 3/4 inch or 1 inch apart, but not all sheaths follow the same pattern.

Step-by-step: mounting on a belt

1. Thread the belt loop or clip through the sheath's eyelets. Use a Phillips-head screwdriver or hex wrench to secure the hardware. 2. Slide the loop over your belt. For a belt mount, position the sheath so the handle sits above the belt line for a full grip. 3. Adjust the tension. Many clips have adjustable screws; tighten until the sheath doesn't shift during a draw. 4. Test the draw. With the knife sheathed, pull firmly—the sheath should stay put. If it moves, tighten the hardware or switch to a wider belt.

Step-by-step: mounting on MOLLE

1. Align the sheath's eyelets with the MOLLE webbing on your gear. 2. Use MALICE clips or short straps: weave the strap through the webbing and sheath, then snap or screw it closed. 3. Ensure the sheath sits tight against the gear—no dangling. 4. Check for interference: the knife handle shouldn't block other pouches or your draw stroke. 5. Test retention by pulling the knife firmly. If the sheath shifts, add a second strap or tighten the existing one.

Step-by-step: mounting for IWB carry

1. Attach IWB loops (pull-the-dot or soft loops) to the sheath's eyelets. 2. Position the sheath inside your waistband at your preferred carry position (appendix, hip, or behind the hip). 3. Route the loops over your belt and snap them closed. 4. Adjust the ride height: the handle should sit just above your waistband for a clean draw. 5. Test comfort and concealment. If the sheath digs into your side, try a different position or add a backing pad.

Common mistakes to avoid

Don't overtighten screws—you can crack the Kydex or strip the threads. Don't use hardware that doesn't match your sheath's eyelet pattern; it will shift or fail. Don't skip retention testing: a sheath that feels tight on the bench may loosen with movement. And don't assume one mounting method works for all activities—you may need to swap hardware for different carry modes.

Mounting steps at a glance

  1. Pick your carry position: Decide between belt, MOLLE, or IWB based on your daily activities and concealment needs. Checkpoint: Can you access the knife easily in this position?
  2. Match hardware to sheath eyelets: Confirm eyelet spacing and hole diameter, then choose loops, clips, or straps that fit. Mistake: Buying hardware before measuring your sheath.
  3. Attach hardware securely: Use the correct screws or straps and tighten until snug—do not overtighten. Checkpoint: Hardware should not wiggle or rotate.
  4. Test retention and draw: With the knife sheathed, pull firmly. The sheath should stay mounted and release the blade smoothly. Mistake: Skipping this test; a loose mount can fail in the field.
  5. Adjust for comfort and access: Fine-tune position, ride height, and tension until the knife feels natural to draw. Next step: Practice drawing and re-sheathing a few times before carrying daily.

Sheath and belt options that work

  • Toor Knives Apex Kydex Sheath - Black: Toor Knives Apex Kydex Sheath - Black features a Tegris® Thermoplastic Composite Fabric backplate for elite-level protection with a low profile and light weight. The Tegris backplate adds stiffness without bulk, making it a solid base for belt or MOLLE mounting.

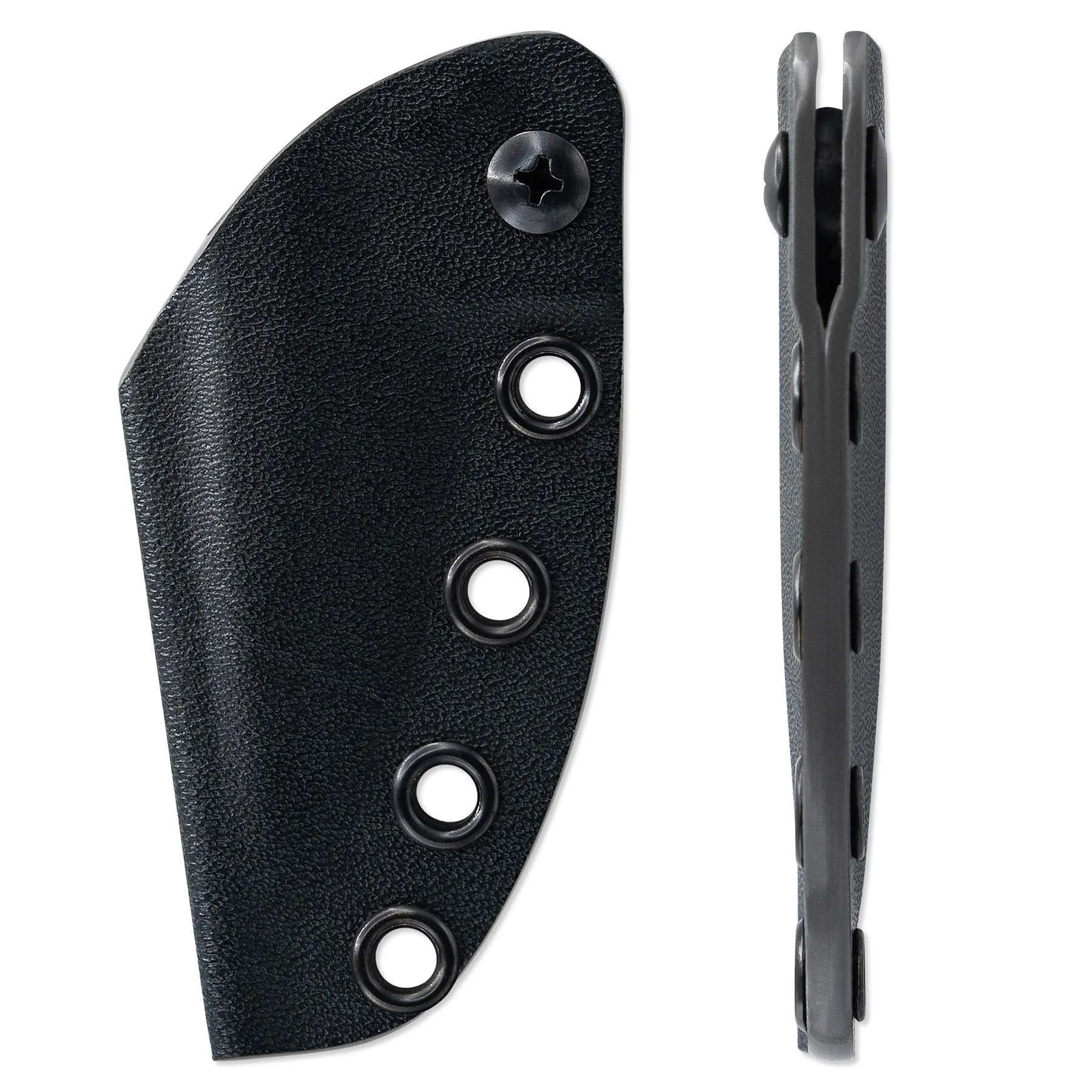

  • Jank Shank S Kydex Sheath - Black: Jank Shank S Kydex Sheath - Black offers over 6 lbs. of draw retention and is designed as a replacement or additional sheath for the Jank Shank S. High retention means the sheath stays put during a draw, but you'll need to ensure your mounting hardware can handle the pull force.
  • X5 BUCKLE | USA MULTICAM TROPIC TACTICAL NYLON GUN BELT 1.5": X5 BUCKLE | USA MULTICAM TROPIC TACTICAL NYLON GUN BELT 1.5" is a reinforced EDC belt that is 2X as stiff as leather EDC belts, with a 1.5-inch width and 5 mm thickness. A stiff belt prevents sag and rotation, which is critical for a stable belt-mounted sheath.
