Quick Answer

To pair your Garmin PRO 550 with the PT 10 dog device, turn on both units, place them close together, and follow the on-screen pairing prompt on the handheld. Once paired, you can train up to 3 dogs simultaneously and use the 1-mile range for reliable field control.

Why the PRO 550 and PT 10 Work Well Together

The Garmin PRO 550 handheld is designed for one-handed operation, letting you manage up to 3 dogs at once when you have additional PT 10 devices. The PT 10 dog device is compatible with the PRO 550 and also works with the PRO 70 and Sport PRO systems, so it is a flexible addition to your training kit.

The system provides 21 levels of continuous and momentary stimulation, plus vibration and tone settings. This range of options lets you tailor corrections to each dog's temperament and training stage, which is a key part of a good dog training collar guide.

Understanding the 1-Mile Range

Both the PRO 550 and the PT 10 advertise up to 1 mile of range. In open fields with clear line of sight, you can expect that distance, but dense woods, hills, and weather can reduce it. For reliable long-distance work, keep the handheld high and avoid obstructions between you and your dog.

Remember that the range is a maximum, not a guarantee. If you are training in heavy cover, plan to keep your dog closer or use the tone feature to check in before relying on longer-distance corrections.

Using the BarkLimiter and Beacon Lights

The PT 10 includes a built-in BarkLimiter that operates on the dog device, helping to curb excessive barking without constant input from you. You can also remotely operate the beacon lights on the dog device from the PRO 550 handheld, which is useful for locating your dog in low-light conditions.

These features add convenience but require you to set them up correctly. The BarkLimiter needs to be activated on the handheld, and the beacon lights can be toggled remotely. Both are explained in the Garmin PRO 550 manual, but the steps below will get you started.

Step-by-Step Pairing and Setup

  1. Charge both units: Fully charge the PRO 550 handheld and the PT 10 dog device using the included AC adapter. A low battery can interrupt pairing, so start with a full charge. Check the battery indicator on both devices before you begin.
  2. Power on both devices: Press and hold the power button on the PRO 550 handheld until the screen lights up. Do the same on the PT 10 dog device. Place them within a few feet of each other. Keep the units close to avoid interference during the pairing process.
  3. Initiate pairing on the handheld: On the PRO 550, navigate to the menu and select 'Add Dog' or 'Pair New Device'. The handheld will search for available PT 10 devices. Select your PT 10 from the list when it appears. If the PT 10 does not appear, make sure it is turned on and within range, then try again.
  4. Confirm the pairing: The handheld will ask you to confirm the pairing. Select 'Yes' or 'OK' to complete the process. The PT 10 may vibrate or beep to indicate a successful connection. A common mistake is skipping the confirmation, which leaves the device unpaired.
  5. Set up training modes: Use the handheld to assign stimulation levels (1-21), choose continuous or momentary stimulation, and set vibration and tone options for your dog. Adjust these based on your dog's sensitivity and training plan. Start with the lowest effective level and increase gradually as needed.
  6. Test the connection: Before heading to the field, do a quick test: activate the tone or vibration from the handheld and confirm the PT 10 responds. Also test the beacon lights if you plan to use them. A simple test saves time and avoids confusion during actual training.
  7. Use the 1-mile range wisely: When training at distance, keep the handheld at chest height and maintain a clear line of sight. If you notice a loss of signal, move to higher ground or reduce the distance. Remember that range is affected by terrain and weather; plan accordingly.

Products Mentioned

  • Garmin PRO 550 System - Dog Training: The Garmin PRO 550 System includes the PRO 550 handheld, PT 10 dog device, collar strap, and AC adapter, and it supports training up to 3 dogs with additional dog devices. This all-in-one package gives you the core gear to start training immediately, and you can expand later by adding more PT 10 devices.

    Garmin PRO 550 System - Dog Training

    Garmin PRO 550 System - Dog Training

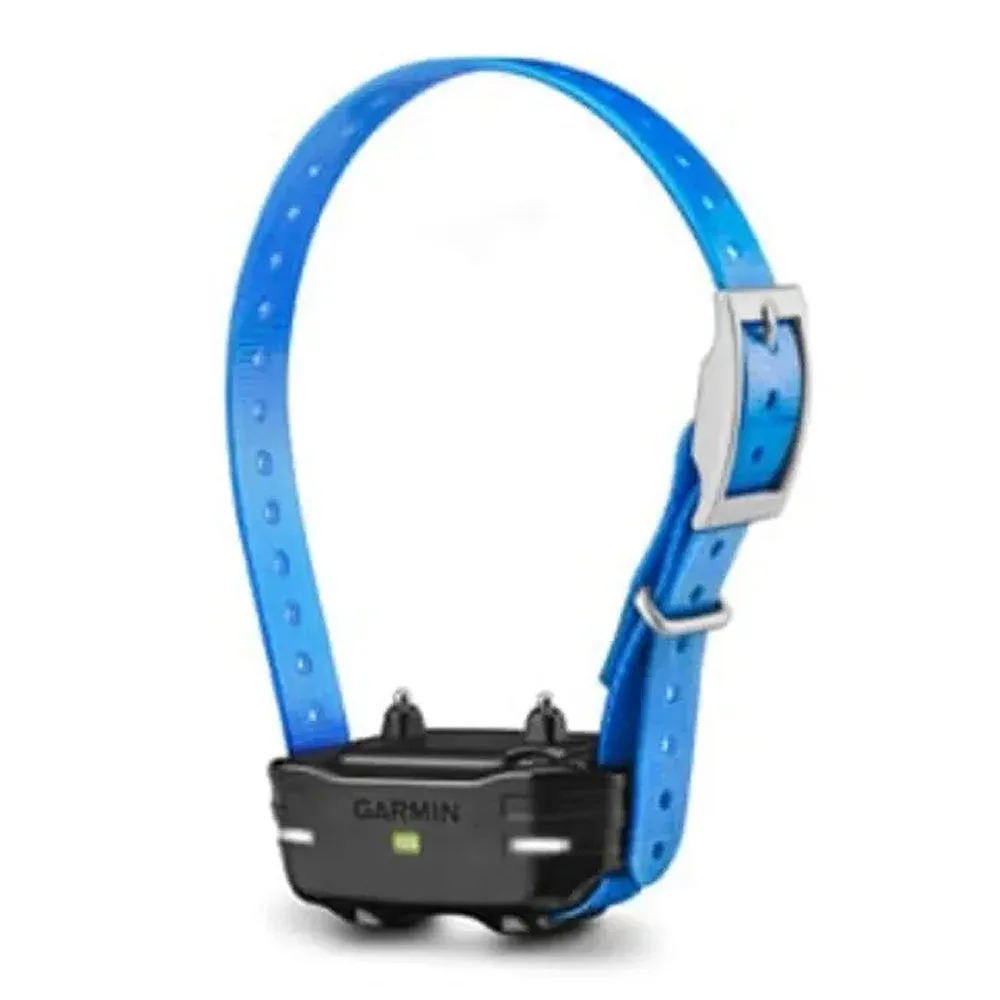

  • Garmin PT 10 Dog Device: The PT 10 dog device is compatible with the PRO 70, PRO 550, and Sport PRO handhelds, and it includes a built-in BarkLimiter and remote beacon light control. If you ever upgrade or switch handhelds, the same PT 10 devices continue to work, protecting your investment.

    Garmin PT 10 Dog Device

    Garmin PT 10 Dog Device
