Quick answer
To power your cooled camera, use a 12V AC to DC adapter that matches your camera's amperage requirement and plug type. Always verify the adapter's polarity and current rating before connecting.
Why amperage matters more than voltage
Cooled cameras draw steady current to run the TEC cooler, and if the adapter can't supply enough amps, the camera may shut down or cool inconsistently. Check your camera's manual for the exact amperage draw, then choose an adapter rated at or above that value—never below.
Voltage must be exactly 12V DC. Using a higher-voltage adapter can damage the camera's electronics, while a lower-voltage one may not power the cooler effectively.
Plug compatibility and polarity
Most cooled cameras use a standard barrel connector, but the plug size and polarity can vary. Confirm the connector's inner diameter and whether the tip is positive or negative. Many adapters come with multiple tips, but if not, you may need a separate cable.
Our store ships the 12V adapter with a US plug by default. If you need a different regional plug, contact us before ordering so we can arrange the correct version.
Step-by-step power setup
- Check your camera's power specs: Look up the required voltage (should be 12V DC) and the maximum amperage draw in the camera manual or on the label. Note the connector size and polarity. Write these specs down before shopping for an adapter.
- Select an adapter with sufficient amperage: Choose a 12V AC to DC adapter rated for at least the amperage your camera draws. If the camera needs 5A, an adapter rated 5A or higher is safe; a lower rating can cause overheating or shutdown. A common mistake is buying an adapter with too low an amperage—always go equal or higher.
- Verify the plug and polarity: Match the adapter's barrel plug size and polarity (tip positive or negative) to your camera's input. If unsure, test with a multimeter before connecting. Incorrect polarity can instantly damage your camera—double-check this step.
- Connect and test: Plug the adapter into a surge-protected outlet, then connect to the camera. Power on and verify the cooler starts and the camera reports normal operation. If the camera doesn't power on, unplug immediately and recheck all connections and specs.
Product facts
-

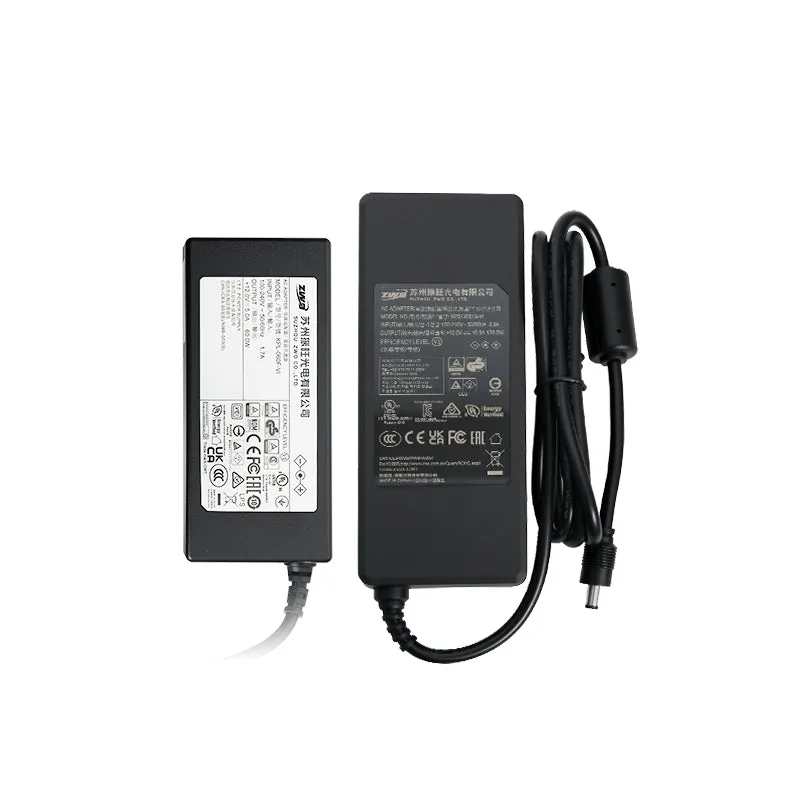

12V AC to DC Power Adapter for Cooled Camera: This adapter ships with a US plug by default; other plug types are available on request. If you're outside North America, confirm your plug type before ordering to avoid needing a separate travel adapter.
12V AC to DC Power Adapter for Cooled Camera
