Quick Answer
To replace a crank bearing on your exercise machine, first identify the correct bearing size and type for your model, then remove the crank arm, extract the old bearing, press in the new one, and reassemble. The most common mistake is buying a bearing that doesn't fit.
Why Crank Bearings Wear Out
Crank bearings on indoor cycles, upright bikes, recumbent bikes, and ellipticals are under constant rotational load. Over time, friction and debris cause them to become rough or noisy. Replacing a worn bearing restores smooth pedaling and prevents damage to the crank arm or frame.
Choosing the Right Replacement Bearing
The most critical step is selecting a bearing that matches your machine's specifications. For example, the Sunny Health & Fitness Crank Bearing For Exercise Machine (product ID 1831928) is a 1-piece crank bearing designed for most upright bikes, recumbent bikes, and ellipticals. However, you must verify the size and fitting on your equipment before purchasing, as dimensions vary across models.
Step-by-Step Replacement Guide
- 1. Gather Tools and Safety Gear: You'll need a crank puller tool, a bearing press or socket set, a hammer, and safety glasses. Disconnect the machine from power if it's electric. Using the wrong crank puller can strip threads; confirm compatibility with your machine.
- 2. Remove the Crank Arm: Use the crank puller to remove the crank arm from the spindle. On most indoor cycles and ellipticals, this involves loosening a bolt or nut, then threading the puller to pop the arm off. If the arm is stuck, apply penetrating oil and wait 10 minutes. Do not hammer directly on the crank.
- 3. Extract the Old Bearing: Locate the bearing inside the crank arm or the frame housing. Use a bearing puller or a socket and hammer to gently tap it out from the opposite side. Note the orientation of the old bearing; the new one must be installed in the same direction.
- 4. Install the New Crank Bearing: Place the new bearing into the housing. Use a bearing press or a socket slightly smaller than the bearing's outer diameter to press it evenly into place. If using a hammer, tap gently around the edges. Do not force the bearing; if it doesn't slide in, check for burrs or debris in the housing.
- 5. Reattach the Crank Arm: Align the crank arm onto the spindle and tighten the bolt or nut to the manufacturer's torque specification. Recheck alignment and spin the crank by hand to ensure smooth rotation. Overtightening can damage the new bearing; use a torque wrench if available.
- 6. Test the Machine: Reconnect power if applicable, then pedal at low speed for a minute. Listen for unusual noise or resistance. If smooth, the replacement is successful. If noise persists, double-check bearing orientation or inspect the crank arm for damage.
Product Facts
-

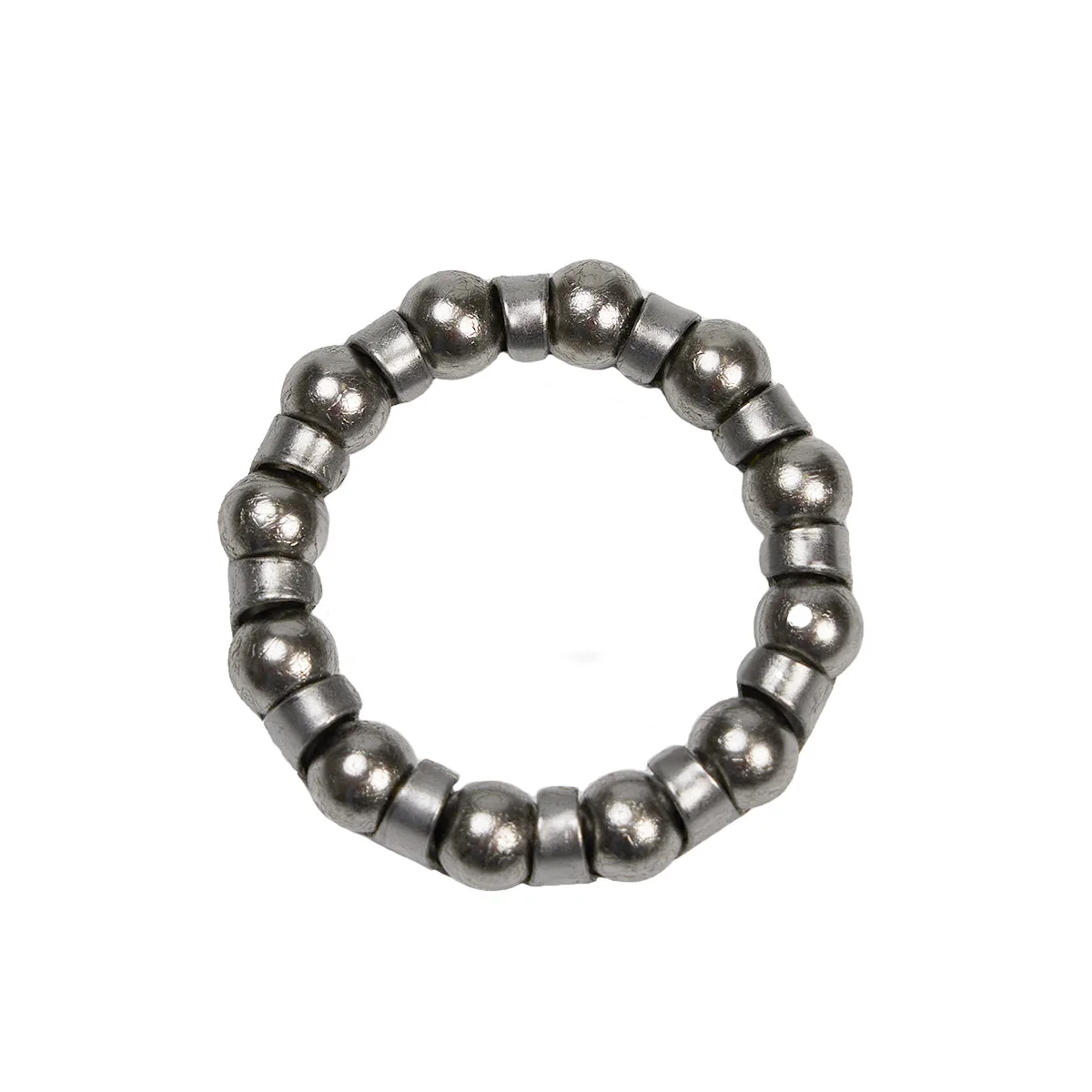

Crank Bearing For Exercise Machine: This 1-piece crank bearing is designed for most upright bikes, recumbent bikes, or ellipticals from Sunny Health & Fitness. It's a direct-fit replacement for many indoor cycles, but you must check your machine's crank bearing size to ensure compatibility.
Crank Bearing For Exercise Machine
