Quick answer

Set up your Vixen telescope by first assembling the tripod and mount, then attaching the optical tube and accessories. Follow these steps for a smooth first session.

Why proper setup matters for beginners

A well-aligned mount and secure optical tube make the difference between a frustrating first night and a rewarding view of the Moon or Saturn. The Vixen Porta series uses a simple alt-azimuth mount with friction stop motion, so you can move the telescope by hand without fighting stiff clutches. That ease of use is a real advantage for new astronomers, but only if you take the time to level the tripod and balance the tube first.

Step-by-step setup guide

  1. Choose a level, stable spot: Set up on solid ground away from streetlights and tall structures. Extend the tripod legs to a comfortable height and spread them fully. Lock the leg locks firmly. A wobbly tripod ruins every view. Double-check that all leg locks are tight before attaching the mount.
  2. Attach the mount head: Place the Vixen Porta or Porta II mount head onto the tripod column. Tighten the central bolt or locking knob until the mount is secure and does not rotate or shift. If the mount wobbles, the telescope will shake with every touch. Tighten the bolt more, or check that the tripod column is fully seated.
  3. Level the mount: Use a small bubble level on the mount base or tripod platform. Adjust the tripod legs individually until the mount is level in all directions. This is critical for smooth manual tracking. Skipping leveling makes the telescope drift when you let go. Spend 30 seconds on this step.
  4. Attach the optical tube: Slide the dovetail bar on the telescope into the mount's saddle. Tighten the locking knob until the tube is snug. For the Porta II-R130SF, ensure the tube rings are centered on the dovetail before tightening. A loose tube can slip and fall. Gently tug the tube to confirm it is locked before adding accessories.
  5. Balance the telescope: Loosen the altitude and azimuth locks slightly. Move the tube so it stays in any position without drifting. Tighten the locks again. For the Porta II-A80MF, the included slow-motion cables will work best when the tube is balanced. An unbalanced tube makes fine adjustments difficult and can strain the mount. Re-balance if you add a heavy eyepiece or camera.
  6. Install the finderscope and eyepiece: Attach the 6x30 finderscope bracket to the tube, then slide in the finderscope. Insert the 20mm eyepiece into the focuser. For the Porta-A70LF, use the included diagonal for more comfortable viewing. Align the finderscope during daytime by aiming at a distant landmark. This saves frustration when you try to locate celestial objects at night.
  7. Focus and observe: Point the telescope at a bright star or the Moon using the slow-motion cables or by hand. Turn the focus knob until the image is sharp. Start with the 20mm eyepiece for a wider field of view, then switch to the 6mm for higher magnification. If the image is blurry, check that the eyepiece is fully inserted and the focuser is not at its limit. A common beginner mistake is using too much magnification too soon.

Product facts

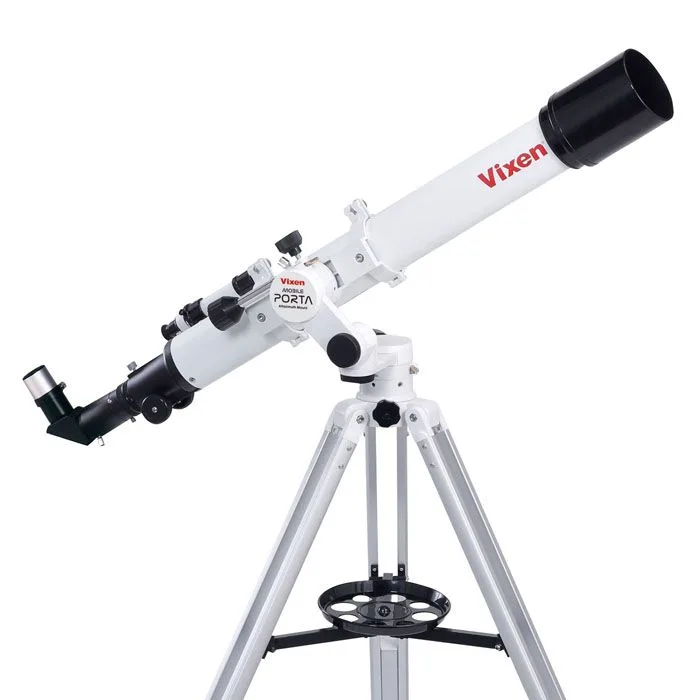

  • Vixen Porta-A70LF 70MM Mobile Telescope With Mount Tripod And Accessories: The Vixen Porta-A70LF 70MM refractor is a basic all-around telescope that gives beginners intriguing views of lunar craters and Saturn's rings. It uses friction stop motion for simple intuitive operation. This model is lightweight and easy to move, making it ideal for grab-and-go observing without a complicated setup.

    Vixen Porta-A70LF 70MM Mobile Telescope With Mount Tripod And Accessories

    Vixen Porta-A70LF 70MM Mobile Telescope With Mount Tripod And Accessories

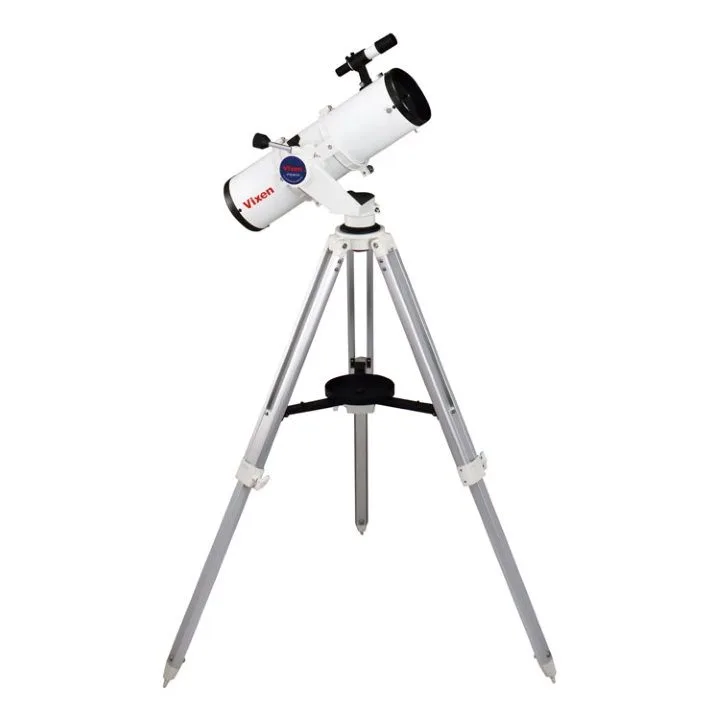

  • Vixen Porta II-R130SF Reflector Telescope With Tripod And Mount: The Vixen Porta II-R130SF is a 650mm f/5 Newtonian reflector with a 130mm aperture, designed to outperform in viewing faint celestial objects like nebulae and star clusters. The larger aperture collects more light, so you can see deep-sky objects that smaller refractors cannot reveal.

    Vixen Porta II-R130SF Reflector Telescope With Tripod And Mount

    Vixen Porta II-R130SF Reflector Telescope With Tripod And Mount

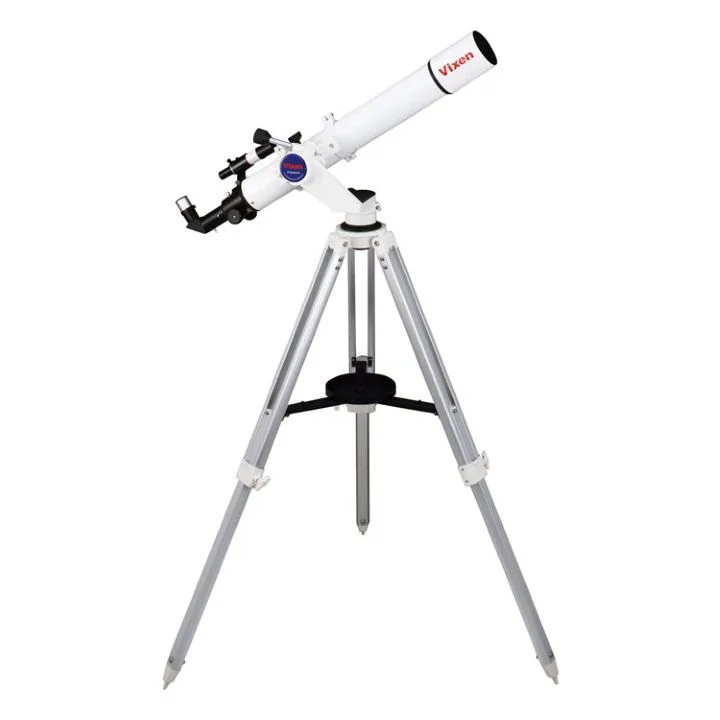

  • Vixen Porta II-A80MF Telescope With Tripod And Mount: The Vixen Porta II-A80MF is an 80mm achromatic refractor with a 910mm focal length and multi-coated optics, used and recommended by astronomy educators. The longer focal length and multi-coated optics deliver crisp, high-contrast views of the Moon and planets right out of the box.
