Quick answer
Mount the external viewfinder on your camera's hot shoe, then compose and shoot through the viewfinder instead of the built-in one. This gives you a wider or more accurate frame, especially when using lenses that don't couple with the rangefinder patch.
Why use an external viewfinder on a rangefinder?
Rangefinder cameras have a fixed viewfinder that only shows one or two frame lines, usually for standard and wide-angle lenses. When you attach a lens outside that range—like a 28mm or a telephoto—the built-in viewfinder won't show the correct field of view. An external viewfinder mounts on the hot shoe and gives you an accurate frame for that specific focal length.
Another reason is composition flexibility. Some external viewfinders, like the Ricoh GV-2, include 1:1 aspect ratio marks, which help you compose square or medium-format-style shots even on a 35mm camera. This is useful for street photography or creative framing where you want to preview the final crop.
Parallax: the main trade-off
An external viewfinder sits above the lens, so what you see is slightly offset from what the lens captures. This parallax error is most noticeable at close focusing distances (under 3 feet or 1 meter). For distant subjects, the offset is negligible. Some viewfinders have parallax correction marks, but many don't—you'll need to compensate by shifting the camera slightly after composing.
If your camera has a coupled rangefinder patch, you'll still use the patch for focusing. The external viewfinder is purely for framing, not focusing. This split workflow takes practice but becomes natural after a few rolls.
Step-by-step: Using an external viewfinder on a rangefinder
- Step 1: Attach the viewfinder to the hot shoe: Slide the viewfinder's foot into the camera's hot shoe until it clicks or tightens. Most viewfinders use a friction fit or a small thumbscrew. Make sure it's centered and secure—a loose viewfinder shifts your frame. Check that the viewfinder sits flush and doesn't wobble. If it does, use a shim or a different shoe adapter.
- Step 2: Set your lens to the matching focal length: If your viewfinder is dedicated to one focal length (e.g., 28mm), set your lens to that same focal length. If it's a zoom or multi-frame viewfinder, rotate the dial to match the lens you're using. A common mistake is leaving the viewfinder set to a different focal length, which will give you a completely wrong frame. Double-check the viewfinder setting every time you change lenses. Mark your lens barrel with a dot for quick reference.
- Step 3: Compose through the viewfinder, focus with the rangefinder patch: Look through the external viewfinder to compose your shot. Then, without moving the camera, glance through the built-in rangefinder patch to focus. This two-step process is the core workflow. For close subjects, after focusing, shift the camera slightly upward and to the right (if the viewfinder is on the left) to correct parallax. Practice the switch between viewfinders a few times before shooting. Over time, you'll do it without thinking.
- Step 4: Shoot and review: Press the shutter while looking through the external viewfinder. After a few frames, review your negatives or digital files to see if your framing matches what you saw. Adjust your parallax compensation if needed. Remember that external viewfinders show the full frame, so you may need to crop slightly in post if the viewfinder is slightly wider than the actual lens coverage. Take test shots of a grid or a brick wall to calibrate your viewfinder's exact field of view and parallax offset.
Product spotlight
-

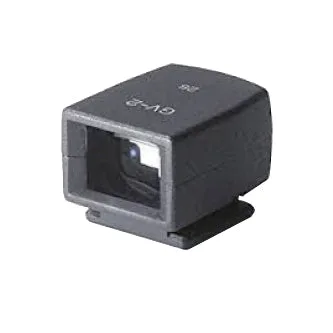

Ricoh GV-2 Mini External Viewfinder: Mini External Viewfinder. Mounts on hot shoe. Includes 28mm equivalent frame in the 35mm format incorporating 1:1 aspect ratio marks. Case is included. The Ricoh GV-2 gives you a bright 28mm frame with square crop guides, making it ideal for street and documentary work where you want to preview a 1:1 composition on a standard 35mm camera.
Ricoh GV-2 Mini External Viewfinder
