Quick answer
Set up the PMI Gear SmokeVest by securing the harness, filling the reservoir with smoke fluid, connecting the battery, and triggering the smoke via the remote control.
Understanding the SmokeVest design
The PMI Gear SmokeVest is a harness-style on-body smoke system that lets you produce smoke effects while keeping your hands free. Unlike traditional smoke machines that sit on the ground, this vest mounts directly onto your body, making it ideal for photographers, videographers, or performers who need to move around.
Because the vest relies on a reservoir and battery pack, you need to plan for runtime and refills. The system is plug-and-play, but proper preparation ensures consistent output during a shoot or performance.
Step-by-step setup and use
- 1. Inspect and adjust the harness: Unpack the SmokeVest and check all straps, buckles, and the reservoir for damage. Adjust the shoulder and waist straps so the vest sits snugly on your torso without restricting movement. A loose harness can shift during use and affect smoke direction. Always do a dry fit before adding fluid or battery to avoid leaks.
- 2. Fill the smoke fluid reservoir: Open the reservoir cap and fill it with the recommended smoke fluid (do not overfill). Screw the cap on tightly to prevent leaks. Wipe any spilled fluid off the vest before powering on. Use only water-based smoke fluid designed for theatrical machines to avoid clogging the heating element.
- 3. Connect the battery and power on: Attach the battery pack to the vest's battery clip and connect the power cable to the heating unit. Press the power button and wait for the unit to heat up (typically 30–60 seconds). An indicator light will signal when it is ready. Do not leave the unit powered on without fluid for more than a few seconds to prevent dry-firing.
- 4. Trigger smoke with the remote: Hold the remote control and press the fire button to release a burst of smoke. Release the button to stop. Practice short bursts first to gauge the smoke density and direction. Avoid continuous firing for more than 10 seconds to give the heating element time to recover and prevent overheating.
- 5. Shut down and clean after use: Turn off the power and disconnect the battery. Allow the unit to cool for at least 5 minutes before handling. Empty any remaining fluid from the reservoir and store the vest in a dry, ventilated area. Regularly check the heating element for residue buildup and clean it per the manufacturer's instructions to extend the unit's life.
Product fact
-

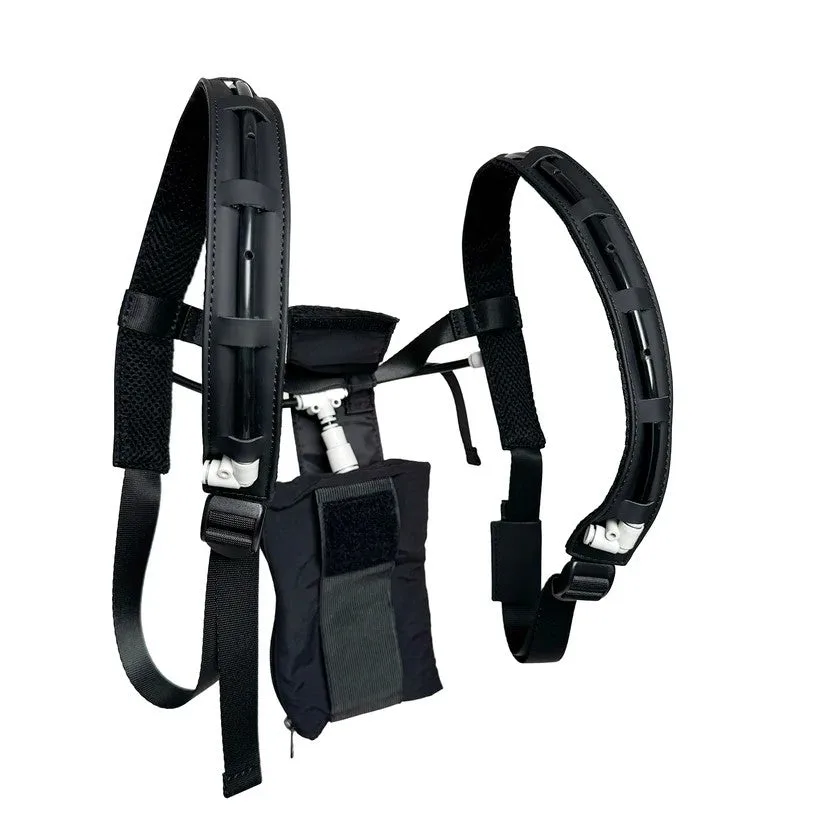

PMI Gear SmokeVest – On-body Smoke System: The PMI Gear SmokeVest is an on-body smoke system built into a professional harness, designed for hands-free wear during use. This means you can produce smoke effects without holding a machine, freeing your hands to operate a camera, direct a scene, or perform on stage.
PMI Gear SmokeVest – On-body Smoke System
