Quick answer

For most original Xbox setups, a component cable is the best choice if your TV has the inputs: it gives you 480p on compatible games and better color separation than composite. Composite is the fallback when component or HDMI isn't available. HDMI adapters can work, but they convert the same analog signal, so they don't create HD detail the console isn't outputting.

What original Xbox video outputs actually exist?

The original Xbox has one multi-out port on the back. From that port you can get composite (yellow/red/white), component (red/green/blue plus audio), S-Video, or RGB SCART depending on the cable or adapter you attach. The console does not have a native HDMI port, so any HDMI solution is an adapter that converts the analog signal.

That matters because the console's video encoder decides what resolution and color format it sends. A cable can carry a signal, but it cannot upgrade it. If a game runs at 480i, an HDMI adapter will still receive 480i and convert it.

Composite vs component: what changes on screen?

Composite combines all video information into one yellow cable. It is convenient and universally supported, but it tends to soften edges and cause color bleeding, especially on text and thin lines. Component splits video into three channels, which reduces that interference and lets compatible original Xbox games output in 480p.

The practical difference is clarity and color stability, not a new generation of graphics. If you play on a CRT, composite can look fine. On a modern flat panel, component usually looks noticeably cleaner because the TV's scaler has a better signal to work with.

Do Xbox 360 AV cables work on the original Xbox?

No. The original Xbox and Xbox 360 use different multi-out connectors, even though the cables look similar. An Xbox 360 AV cable will not plug into an original Xbox, and an original Xbox cable will not fit an Xbox 360. If you are shopping for a replacement, match the cable to the console, not the TV end.

This is a common mix-up because both consoles used composite and component cables with the same colored RCA plugs. The TV side is identical; the console side is not.

Are HDMI adapters worth it for the original Xbox?

An original Xbox HDMI adapter takes the analog output and converts it to HDMI. It solves the problem of a TV that has no component or composite inputs, and it can simplify cable management. It does not make games run in higher resolution than the console outputs.

Quality varies. A cheap adapter may add lag, soften the image, or mishandle 480p. If you already have component inputs, use them. If you don't, an HDMI adapter is a reasonable convenience, but check return policies and expect analog-to-digital conversion, not a remaster.

What should you check before buying a cable?

First, confirm which inputs your TV or capture device has. Second, decide whether you need 480p, which requires a component cable and a compatible game. Third, inspect the console's multi-out port for bent pins or debris, because a damaged port will make any cable unreliable.

If you are buying used, ask whether the cable has been tested. For accessories, Retro vGames lists condition and catalog facts, so read those before assuming a cable includes every connector or original packaging.

Original Xbox cable FAQ

Can I use an Xbox 360 AV cable on an original Xbox?

No. The multi-out connectors are different shapes. The RCA ends look the same, but the console-side plug will not fit. Match the cable to the console, not the TV.

Is component really better than composite?

Yes for image stability and 480p support on compatible games. Composite is a single combined signal and is more prone to color bleed and softness. Use component if your TV has the inputs and your games support 480p.

Will an HDMI adapter make original Xbox games look HD?

No. It converts the existing analog signal to HDMI. It can help on TVs without analog inputs, but it does not increase the console's internal resolution. Choose HDMI for convenience, not for a resolution upgrade.

What is the best cable for an original Xbox?

A quality component cable is the best all-around choice for most players. If your display only has HDMI, a well-reviewed HDMI adapter is the practical alternative. Buy based on your TV inputs first.

Product facts

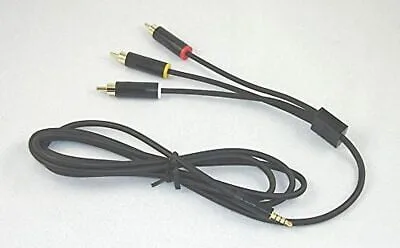

  • XBOX 360 "E" AV Cable: XBOX 360 "E" AV Cable is equipped with output cables for any supporting TV set and is positioned as a replacement for lost, damaged, or worn out cables. If you need a fresh Xbox 360 AV cable, this is a direct replacement option; remember it fits Xbox 360, not the original Xbox.
  • NBA 2K12 – Xbox 360 Game: NBA 2K12 for Xbox 360 is a pre-owned disc-only copy that has been fully tested and is guaranteed to work. A working game lets you verify your cable and TV setup without blaming the disc; disc-only means no case or manual.

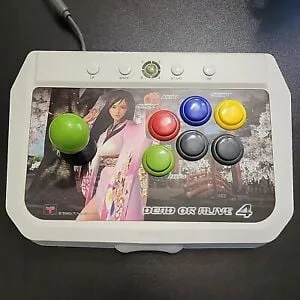

  • Xbox 360 Hori Dead or Alive 4 Arcade Stick: Xbox 360 Hori Dead or Alive 4 Arcade Stick is a used accessory designed for Xbox 360. It is an Xbox 360 accessory, so it does not connect to or solve original Xbox video output; useful if you are building a 360 setup instead.
