Quick answer

Picatinny (MIL-STD-1913) and Weaver rails are not the same: Picatinny slots are 5.56mm (0.219") wide, while Weaver slots are about 4.7mm (0.185"). Picatinny accessories usually fit Weaver rails, but Weaver accessories often do not fit Picatinny rails because the wider Picatinny slot won't clamp down. For a red dot or flashlight, match the mount to your rail spec—or use a mount that explicitly covers both, like the TR21 or RD35T.

What actually differs: slot width, spacing, and clamp design

The core difference is the slot. Picatinny rail slot dimensions are standardized: 5.56mm (0.219") wide, with a 10mm (0.394") spacing between slot centers and a 45-degree dovetail angle. Weaver slots are narrower at roughly 4.7mm (0.185") and often have slightly different spacing. That narrower slot is why a Weaver ring can sometimes sit loosely on a Picatinny rail, while a Picatinny clamp may not close enough on a Weaver slot.

Clamp design matters as much as slot width. Many modern mounts use a reversible or adjustable clamp that can span both specs. When a product listing says 'fits 20mm Picatinny or Weaver rails,' that's the manufacturer confirming the clamp has enough travel. If the listing only says 'Weaver,' don't assume it will lock up tight on a Picatinny rail.

How to measure your rail before you buy a mount

Use calipers or a reliable ruler to measure the slot width at the top of the rail. If it reads about 5.56mm (0.219"), you have a Picatinny rail. If it reads closer to 4.7mm (0.185"), it's Weaver. Also check the overall rail profile: Picatinny rails have a consistent, flat top with distinct recoil shoulders, while Weaver rails can vary more between manufacturers.

If you can't measure, check your firearm or handguard documentation. Many AR-style handguards and upper receivers list 'MIL-STD-1913' or 'Picatinny' explicitly. For rimfire or older hunting rifles, Weaver is more common. When in doubt, choose a mount that states both—this avoids a return and keeps your optic or light usable across platforms.

Red dot mounts: when Picatinny vs Weaver matters most

Red dots are lightweight and don't generate heavy recoil forces on the mount, so a slightly loose fit is less catastrophic than with a heavy scope. But a loose mount still shifts zero and can cause the dot to wander. For a red dot mount, picatinny or weaver compatibility should be your first filter. The Sniper TR21 3MOA Reflex Sight explicitly fits standard 20mm Picatinny or Weaver rails, which makes it a low-risk choice if you're unsure. The RD35T 3MOA Red Dot Sight also fits 20mm Picatinny/Weaver rails and adds an 11-level brightness control and multi-coated lens, but it uses a 35mm tube—so check that your mount or rings match that tube size.

If you already have a Weaver-only mount, a Picatinny red dot may not clamp securely. In that case, either swap the mount or choose a red dot that lists both rail types. Don't rely on 'it feels tight' alone; test by trying to rotate the optic by hand after tightening.

Flashlight and foregrip mounts: load and leverage change the answer

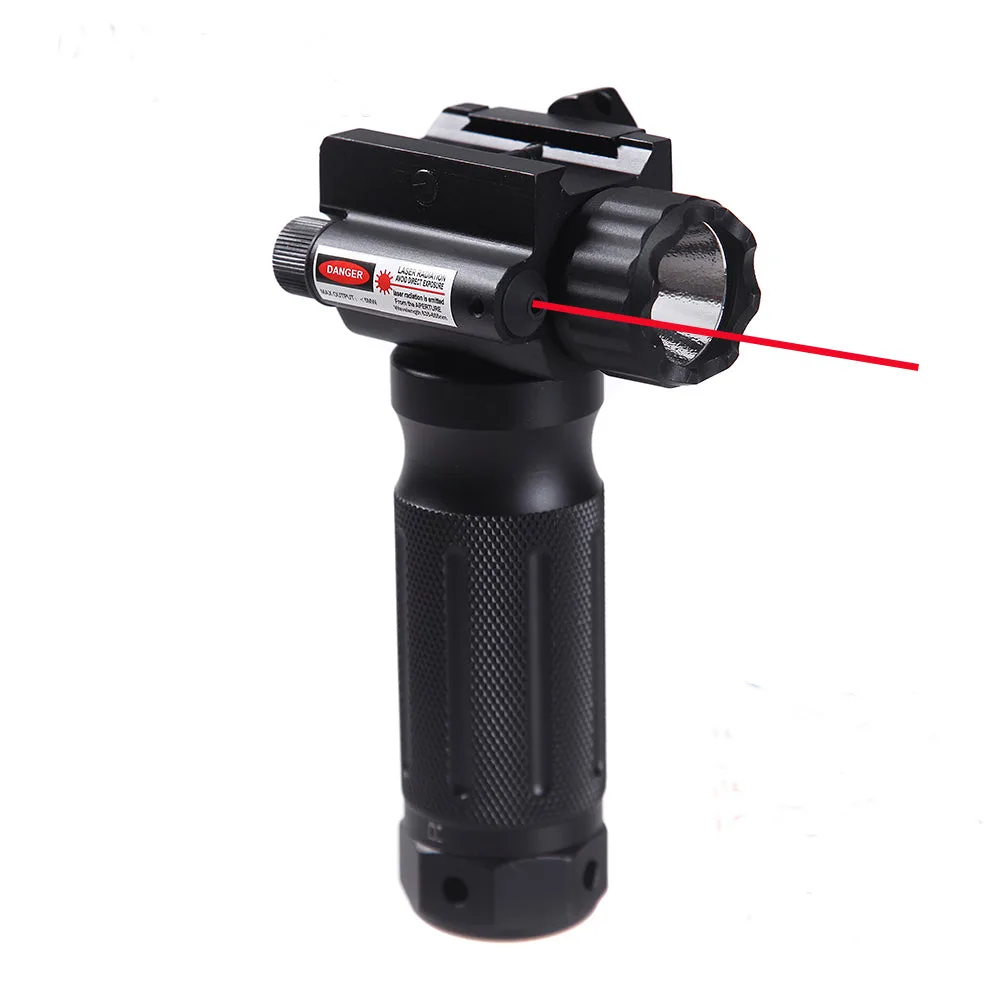

A flashlight or foregrip adds leverage. A loose fit that seems fine with a red dot can shift under recoil or hand pressure. The Sniper GP01R Tactical Vertical Foregrip includes a 1000-lumen LED flashlight and red laser, and the catalog notes it works on Picatinny rail—and specifically warns that if your M-LOK handguard doesn't have a Picatinny section, you'll need an adapter. That's a common trap: M-LOK is not Picatinny, and a Picatinny mount won't bolt directly to M-LOK slots without a rail section.

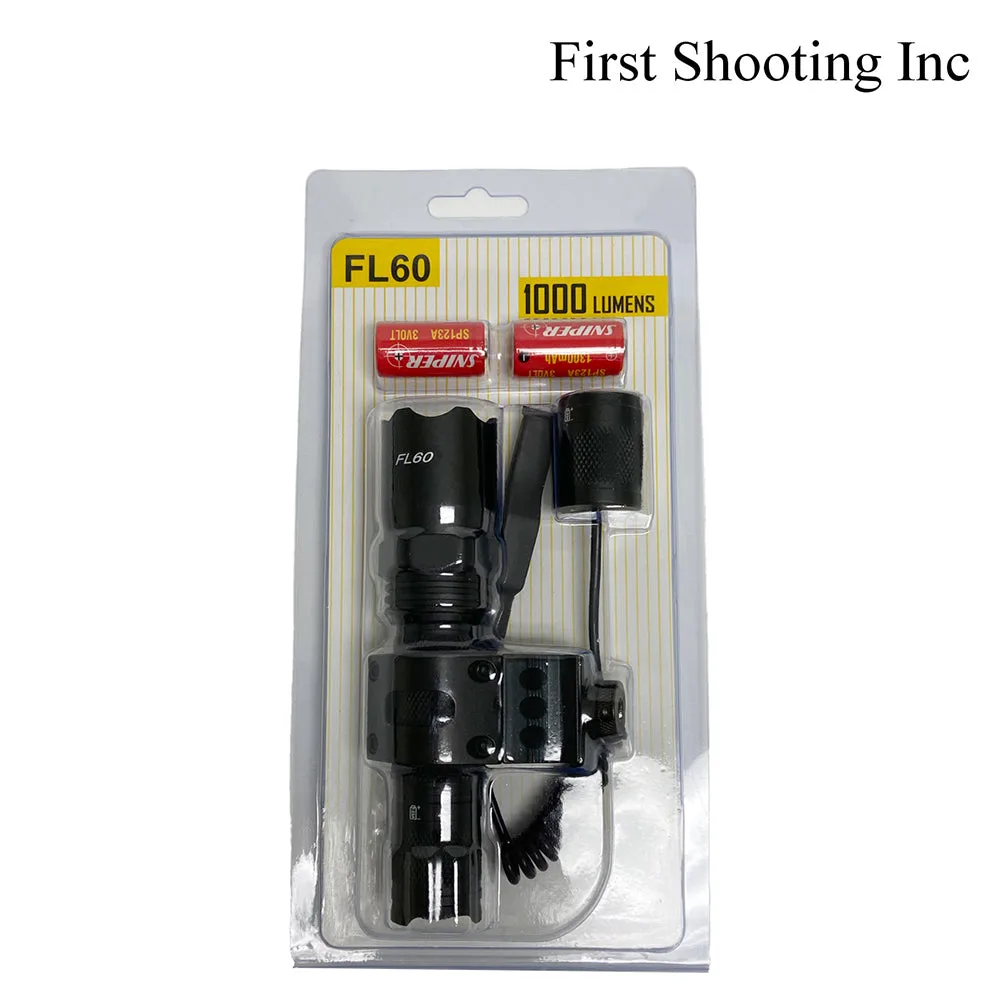

For a standalone light, the Tactical Flashlight 1000 Lumen LED Light includes a Picatinny rail mount and offset rail mount, plus a pressure switch. That setup is designed around Picatinny, so it's a straightforward choice if your rail is MIL-STD-1913. If your rail is Weaver, check whether the clamp can be adjusted; if not, plan on a Weaver-specific mount or a rail adapter.

Trade-offs: Picatinny vs Weaver for optics and accessories

  • Picatinny rail (MIL-STD-1913): Standardized 5.56mm slot width and 10mm spacing. Most modern tactical accessories are built to this spec, including the GP01R foregrip and the 1000-lumen flashlight with Picatinny mount. Best if you want the widest accessory compatibility and a consistent, repeatable fit.
  • Weaver rail: Narrower ~4.7mm slots and less strict standardization. Many Weaver mounts won't clamp securely on a Picatinny rail, but some dual-spec mounts like the TR21 and RD35T work on both. Fine for rimfire and hunting rifles, but verify the mount lists Weaver explicitly or covers both specs.
  • Dual-spec mounts: Mounts labeled 'fits 20mm Picatinny or Weaver' have adjustable or reversible clamps. They cost little more but remove the guesswork if you own multiple rifles or aren't sure of your rail. The safest default when you can't measure your rail or want one optic to move between guns.

Product facts that affect rail fit

Which rail and mount should you choose?

Best for

  • AR-15 and modern tactical setups with MIL-STD-1913 Picatinny rails—use Picatinny-native accessories like the GP01R foregrip or the 1000-lumen flashlight.
  • Shooters who want one red dot to work on both rail types—choose a dual-spec model like the TR21 or RD35T.
  • Hunters with Weaver rails who want a lightweight red dot—confirm the mount lists Weaver or both specs.

Not for

  • M-LOK handguards without a Picatinny section—you'll need an adapter rail before mounting Picatinny accessories.
  • Anyone who assumes Weaver and Picatinny are always interchangeable—they aren't, and a loose mount can shift zero or fail under recoil.
  • Buyers who won't measure or check specs—guessing here leads to returns and range-day frustration.
