Quick answer

Match every component to the airframe diameter and motor mount tube size printed on your kit's parts list, and buy replacement fins or rings by the same measurements rather than by kit name alone. If you are still choosing a kit, start with the motor class you can legally fly and work backward to airframe size. When in doubt, measure the tube, not the label.

How do I choose between a kit and scratch building?

Kits remove the guesswork from the structural parts that are hardest to fabricate: pre-slotted airframes and through-the-wall fin mounting. Scratch building gives you freedom in shape and size but puts the burden on you to source every tube, ring, and fin so the motor mount, airframe, and recovery system all line up. A middle path works well: buy a kit for the airframe and motor mount, then upgrade fins, rings, or decals individually as your goals change.

What size centering rings do I need?

Centering rings are specified by two dimensions: the outside diameter that fits inside your airframe tube and the inside diameter that slips over your motor mount tube. For example, a ring listed for a 2.56-inch airframe comes in versions for a 24mm or 29mm motor mount, and those are not interchangeable. Measure both tubes with calipers before ordering, and note the ring thickness, because thinner rings may need doubling up for high-thrust motors.

When should I replace a fin set?

Replace fins after a hard landing that cracks a root edge, when a fin no longer sits flush against the airframe, or when you are upgrading to a thicker material for higher-thrust flights. A direct replacement set keeps the original fin profile and tab geometry, so you avoid re-cutting slots or rebalancing the rocket. If you are switching to a larger motor mount, check that the fin tabs match the new motor tube diameter before you buy.

Do decals affect performance?

Decals are cosmetic, but they affect two practical things: visibility on the pad and how easily you can spot the rocket under descent. High-contrast patterns and a bright nose or fin color help more than fine detail. Apply decals after the final clear coat and let them cure fully before flying, because a lifting edge can peel at speed. Decal sets are usually sized to a specific kit, so confirm the airframe diameter before ordering.

How do I match a motor to my kit's mount?

The motor mount tube sets the ceiling for motor diameter, but you can fly smaller motors with an adapter. A kit with a 38mm mount, for instance, can use an optional adapter to fly 29mm F and G motors, which is useful for smaller fields. Check the kit's recommended motor range and your field size before buying, and never assume a larger mount means you must fly larger motors every time.

Component matching FAQ

Can I use any fin set on any kit?

No. Fin tabs must match both the airframe slot spacing and the motor tube diameter. A 4-inch Goblin fin set with 54mm tabs will not drop into a kit built around a 38mm mount without modification. Measure the motor tube and slot spacing before ordering fins.

Are centering rings sold individually or in packs?

The 2.56-inch rings come in two-packs, and each pack includes a Kevlar loop for the recovery anchor. That covers a single motor mount installation with one spare ring. Buy one pack per motor mount you are building.

Does a bigger motor mount limit my motor choices?

No, but it changes them. A 38mm mount flies 38mm motors directly and smaller 29mm F and G motors with an optional adapter, so you keep flexibility instead of being locked to one class. Confirm the adapter is available for your mount size before you buy.

Should I buy decals before or after the build?

Buy them with the kit if you want a matched set, but apply them after the final clear coat. Confirm the decal set is sized for your airframe diameter, since sets are usually kit-specific. Order decals by kit and diameter, not by color alone.

Component facts worth knowing

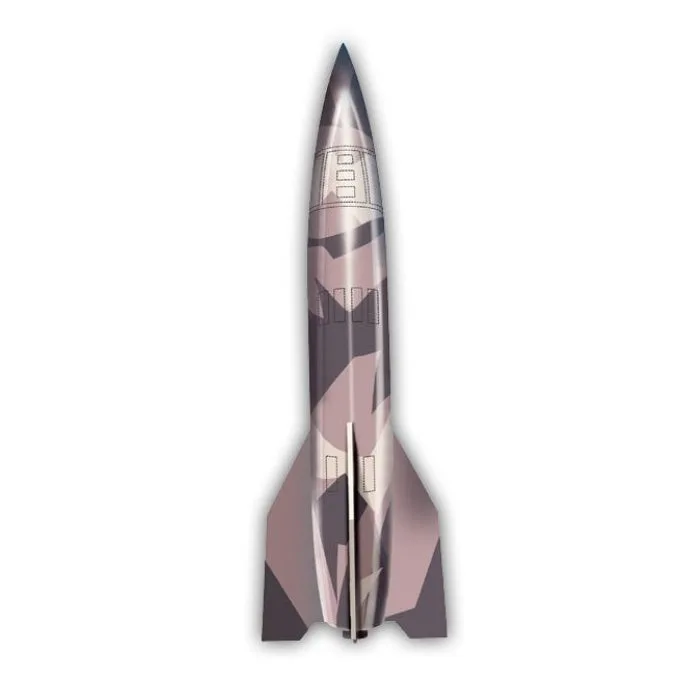

  • V2 4": The 4-inch LOC V2 kit is part of the Advanced Series and includes a factory pre-slotted airframe, through-the-wall fin construction, and a boat tail with a standard 38mm motor mount. Pre-slotted tubes and through-the-wall fins reduce alignment errors, while the 38mm mount can be stepped down with an adapter for F and G motors on smaller fields.

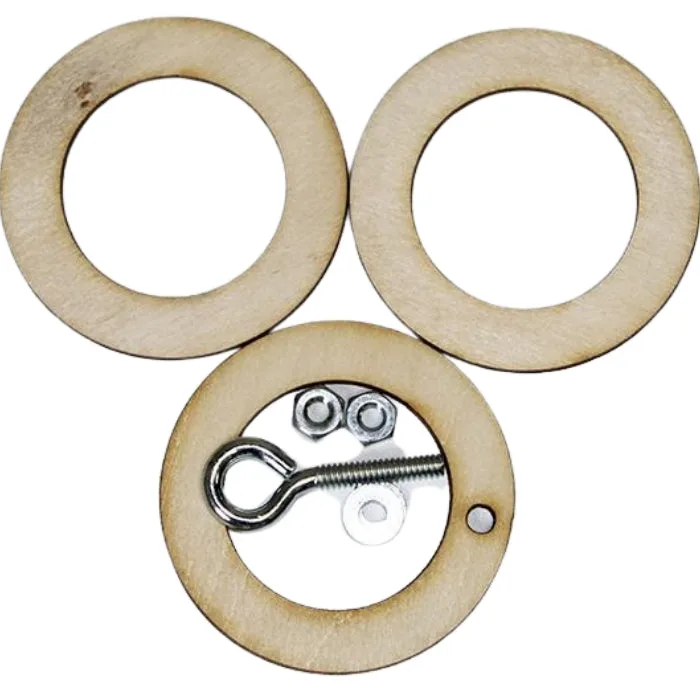

  • Centering Rings For 2.56" Airframe: Centering rings for 2.56-inch airframe tubes are available in 24mm and 29mm motor mount versions, 1/8-inch thick, in two-packs that include a Kevlar loop. Ordering the wrong inside diameter is the most common centering ring mistake, so confirm your motor tube size first; the included Kevlar loop saves a separate recovery anchor purchase.

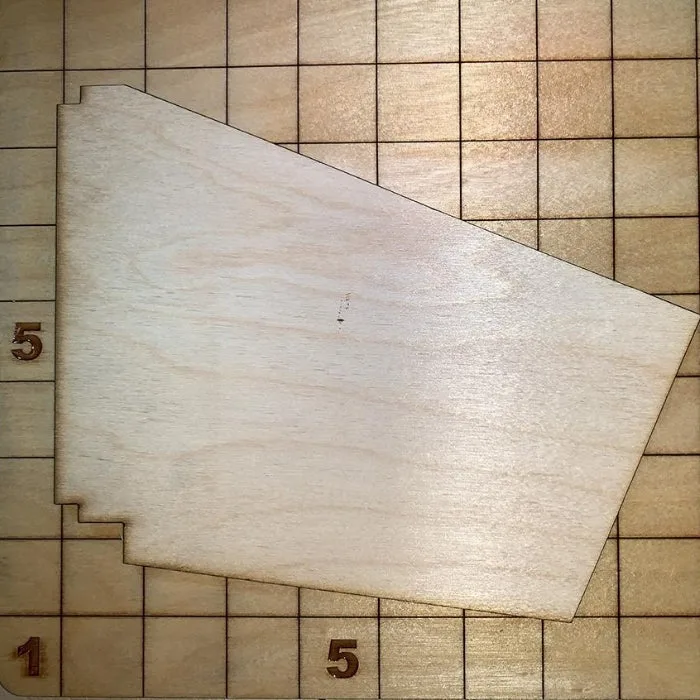

  • 4" Goblin Fin Set: The 4-inch Goblin fin set includes four fins cut from 1/4-inch thick material, with tabs sized for a 54mm motor tube, and fits LOC Precision Goblin kits. A matched replacement set restores the original profile and tab fit, so you avoid re-cutting slots or shimming a loose fin after a repair.
