Quick Answer
Set up your SimXPro XFR Formula cockpit by focusing on seat fit and pedal/wheel positioning first. The XFR's dedicated Formula geometry gives you an authentic open-wheel posture, but getting the adjustability right is key for comfort and performance.
Why Seat Fit Matters First
The SimXPro XFR is a dedicated Formula cockpit, meaning its geometry is built around a reclined, feet-up driving position. Unlike a GT rig, the seat angle and distance from the pedals are critical. If you skip seat fit, you'll struggle to reach the wheel or pedals comfortably, which can cause fatigue and reduce control.
Most sim racers overlook that the XFR's extreme rigidity and low seating position require precise adjustment of the seat slider and pedal plate angle. A common mistake is mounting the seat too far forward or backward, which throws off your entire driving posture.
Adjusting the Formula Position
The XFR is engineered for an authentic single-seater driving posture. This means your hips should be lower than your knees, and your arms should be nearly straight when holding the wheel. The cockpit's extensive adjustability lets you fine-tune the wheel mount and pedal position to match your body.
A common trade-off: the Formula position can feel cramped if you're used to a GT cockpit. Take your time to adjust the wheel mount height and distance before tightening everything down. The XFR's dedicated design means you can't simply swap to a GT seating angle, so commit to the Formula ergonomics.
Step-by-Step Setup for the SimXPro XFR Formula Cockpit
- 1. Mount the Seat on the Slider: Attach your seat (or the XFR's seat mount) to the slider rails. Ensure the slider mechanism moves freely before bolting it to the cockpit frame. Tighten bolts to the recommended torque but leave the slider adjustment knob loose for now. Common mistake: bolting the seat too tight to the slider, preventing smooth fore-aft movement.
- 2. Position the Seat for Your Leg Length: Sit in the cockpit and slide the seat until your knees are slightly bent when pressing the pedals fully. Your thighs should be supported by the seat cushion without pressure on the back of your knees. Lock the slider in place. Checkpoint: Your heels should rest naturally on the pedal plate without lifting your legs.
- 3. Adjust the Pedal Plate Angle and Distance: Loosen the pedal plate mounting bolts and tilt it so your feet are at a comfortable angle (typically 45-60 degrees from horizontal). Slide the plate closer or farther to match your leg length. Tighten all bolts securely. Common mistake: setting the pedal plate too flat, which forces your knees into your chest.
- 4. Set the Wheel Mount Height and Reach: Adjust the wheel mount's vertical position so the wheel center is at or slightly below your shoulder height when seated. Slide the mount forward or back so your elbows are at a 90-110 degree angle when gripping the wheel. Lock all adjustments. Checkpoint: Your wrists should rest on top of the wheel when your arms are fully extended.
- 5. Fine-Tune the Steering Wheel Angle: Tilt the wheel mount to match your natural wrist angle. A slight downward tilt (toward your lap) is typical for Formula driving. Tighten the tilt bolts and verify the wheel doesn't move under force. Common mistake: tilting the wheel too far up, causing wrist strain during long sessions.
- 6. Final Bolt Check and Cable Routing: Go through all bolts and tighten them to the manufacturer's specifications. Route cables away from moving parts and secure them with zip ties or velcro straps to prevent snagging. Checkpoint: Double-check that no bolts are loose after your first test drive.
Product Facts
-

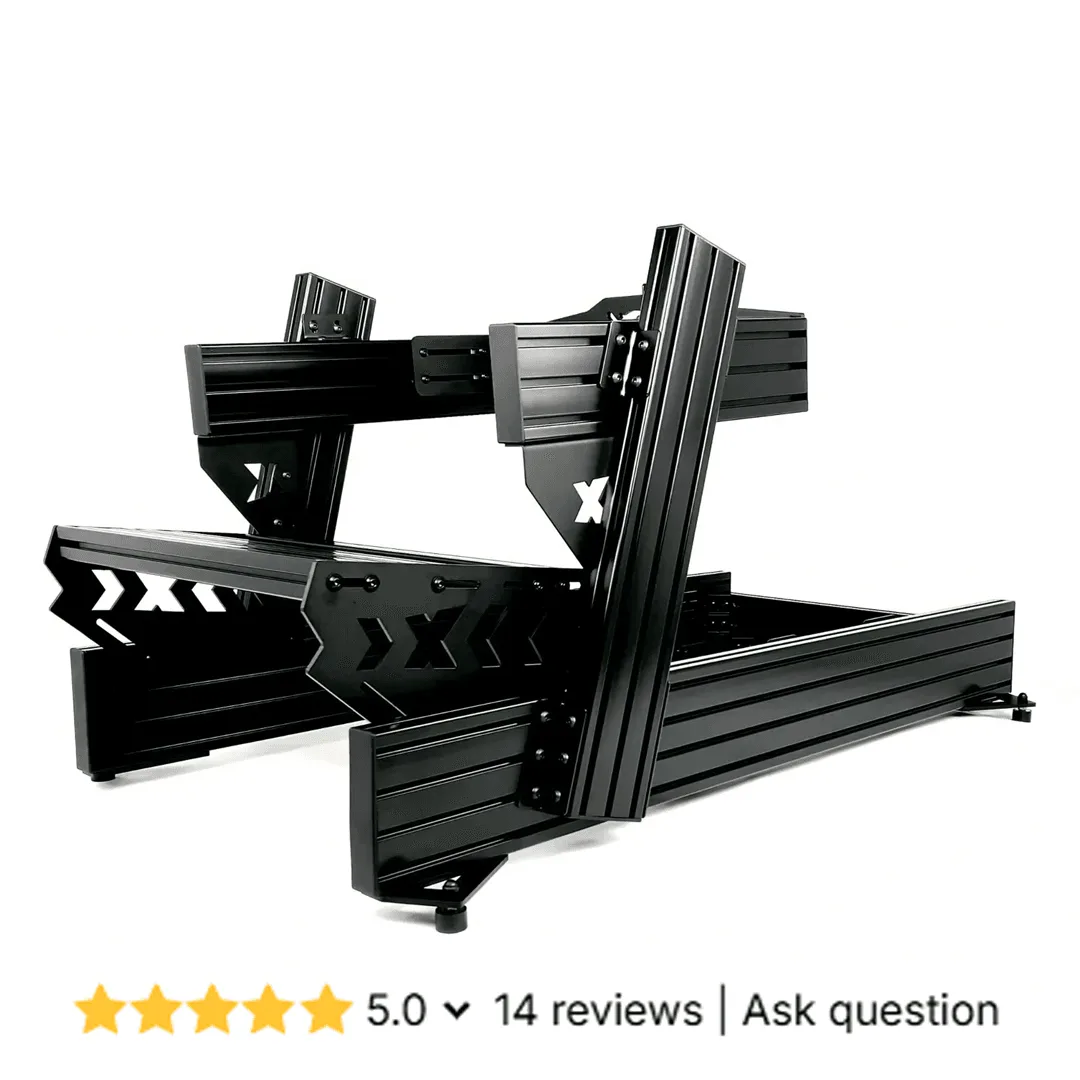

SimXPro XFR Formula Racing Cockpit: The SimXPro XFR is designed from the ground up for sim racers who want a true open-wheel driving posture rather than a GT cockpit adapted to a reclined position. This means you get a dedicated Formula geometry out of the box, so you don't have to compromise with adapter plates or modified GT rigs.
