Quick answer
A load generator (or dummy load device) provides a resistive load to a factory audio system when you remove the original speakers. This prevents the factory amp from muting, distorting, or shutting down due to missing impedance. You typically need one when upgrading to aftermarket speakers or DSPs in vehicles with Class D factory amplifiers.
Why modern factory systems need a load
Many newer vehicles use Class D amplifiers that detect speaker presence by measuring impedance. When you disconnect the factory speakers, the amp sees an open circuit and may mute the output, produce distortion, or even send damaging frequencies. A load generator fixes this by presenting a stable impedance that keeps the factory amp happy.
The AudioControl AC-LGD is a dedicated dummy load device that uses carefully selected resistors and a Zobel Network to generate load and stabilize the signal. It's a universal solution that works with most factory systems, not tied to a specific DSP brand.
When a load generator isn't enough
Some factory systems require more than just a resistive load. For example, the Audison ASP Signal Presence Module is designed specifically for Audison Prima DSP amps (AP8.9bit, AP5.9bit, AP4.9bit). It solves a particular issue: some OEM sources only need a resistive load at the initial turn-on instant to detect speaker presence. Without it, the source disables outputs, often only the rear section, preventing proper calibration.
If your problem is finding a switched 12V source to turn on your aftermarket gear, a load generator won't help. In that case, the Wavtech ART Compact 12v Auto Remote Turn-on Module generates a +12V trigger signal from audio signal detection, solving a different wiring challenge.
Frequently asked questions
What exactly does a load generator do?
It provides a resistive load (typically 2-8 ohms) to the factory amplifier's output, simulating a connected speaker. This prevents the amp from entering a protection mode, muting, or producing distorted audio when the original speakers are removed.
Do I need a load generator for every aftermarket speaker upgrade?
Not always. Older vehicles with analog amplifiers usually don't require one. You likely need a load generator if your car has a Class D factory amp (common in 2015+ models) and you're removing all factory speakers. If you're only replacing front speakers and keeping rear speakers, the remaining load may suffice. Check your vehicle's factory amp type. If it's Class D and you're removing all speakers, plan for a load generator.
Can I use a load generator with any DSP or amplifier?
Yes, universal dummy loads like the AudioControl AC-LGD work with any aftermarket system. However, some DSPs have specific requirements. For example, the Audison ASP is designed only for Audison Prima DSP amps and addresses a unique turn-on detection issue. Always check compatibility with your specific DSP model. For Audison Prima DSPs, use the dedicated ASP module. For other systems, a universal load generator works.
What's the difference between a load generator and a remote turn-on module?
A load generator (e.g., AudioControl AC-LGD) provides speaker impedance to prevent amp muting. A remote turn-on module (e.g., Wavtech ART) generates a 12V trigger signal to power on aftermarket amplifiers or accessories. They solve different problems: one for signal stability, the other for power activation. Identify your issue: amp muting after speaker removal = load generator; no switched 12V source = remote turn-on module.
Product facts
-
AudioControl AC-LGD Pair of Dummy Load Generating Device & Signal Stabiliser: The AC-LGD uses carefully selected resistors and a Zobel Network to generate load and stabilize signal from the factory system. This makes it a reliable universal fix for preventing factory amp muting when you remove OEM speakers, regardless of your aftermarket gear brand.
AudioControl AC-LGD Pair of Dummy Load Generating Device & Signal Stabiliser
-

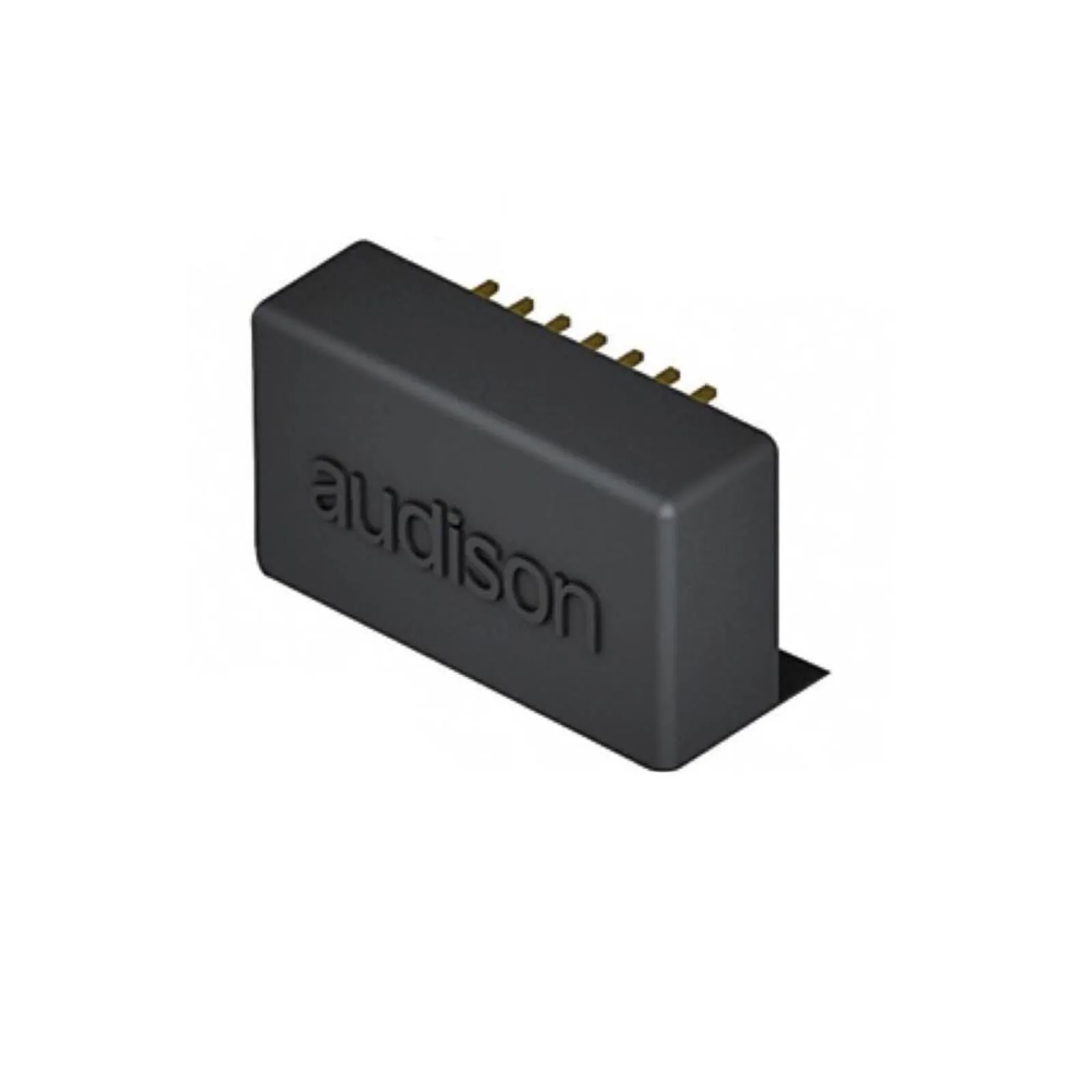

Audison ASP Signal Presence Module for Prima AP8.9bit AP5.9bit AP4.9bit DSP Amps: The ASP is indispensable when installing AP8.9bit with OEM sources that require a resistive load at the initial turn-on instant to detect speaker presence. Without it, the source may disable rear outputs during DSP calibration, so this module is essential for a successful Audison Prima DSP install in certain vehicles.
Audison ASP Signal Presence Module for Prima AP8.9bit AP5.9bit AP4.9bit DSP Amps
-

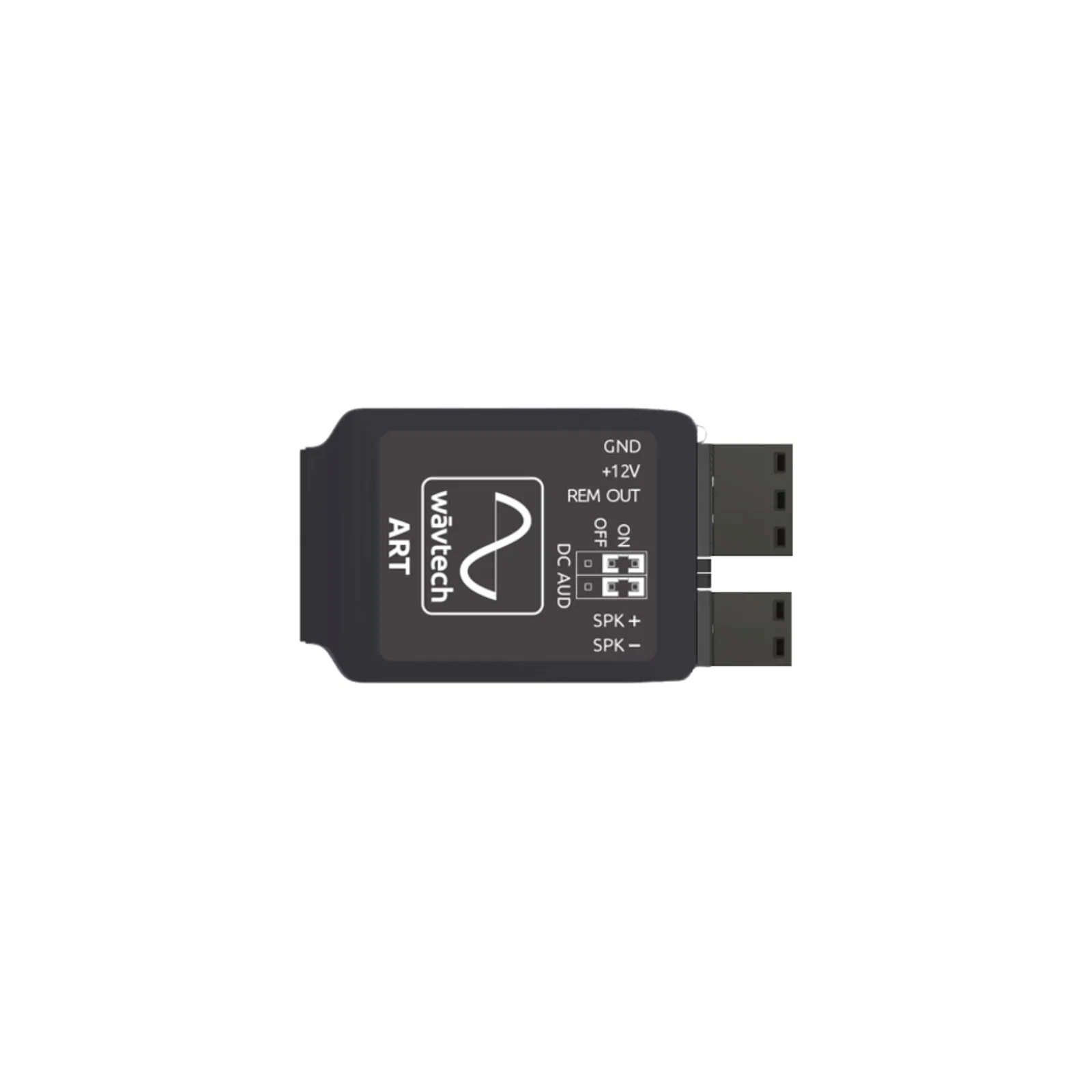

Wavtech ART Compact 12v Auto Remote Turn-on Module: The ART generates a +12V trigger for audio systems when a switched 12V source is difficult or impossible to find. It solves a different problem than load generators: providing a turn-on signal for amplifiers or accessories, not mimicking speaker impedance.
