Quick Answer

Choose the ZMI 7702 if your priority is selecting the beam diameter and mounting style for your optical setup. Choose the ZMI 7705 if you need a laser head designed for ZMI 501A electronics and want to choose output power with or without the legacy 510 requirement.

How the Two Heads Differ

The ZMI 7702 and ZMI 7705 are both ZYGO laser heads, but they are configured around different decisions. The 7702 asks you to pick a beam option and a mounting option. The 7705 asks you to pick an output power and whether the legacy 510 requirement applies. That single difference in required options usually decides the choice before price or availability enters the conversation.

  • ZMI 7702: beam and mounting are the required choices.
  • ZMI 7705: output power and legacy 510 are the required choices.
  • Neither product listing states a direct compatibility between the two, so do not assume one substitutes for the other without checking your electronics.

What the 7702's Beam and Mounting Options Mean in Practice

The ZMI 7702 is offered with 6mm and 3mm beam options and Narrow or Wide mounting options. Beam diameter affects how the laser head integrates with the rest of your optical path, and mounting determines how it physically fits into your existing hardware. If your setup already constrains either one, the 7702 gives you a way to match it rather than adapt around it.

  • Confirm your required beam diameter before ordering: 6mm and 3mm are not interchangeable in every optical train.
  • Confirm your mounting footprint: Narrow and Wide are distinct mechanical choices.
  • The 7702 listing does not state electronics compatibility, so verify that separately with your system documentation.

What the 7705's Power and Legacy 510 Options Mean in Practice

The ZMI 7705 is designed for use with ZMI 501A electronics. It comes in 250uW or 350uW output power, and each can be ordered with or without the legacy 510 requirement. That makes the 7705 the more specific choice when your electronics are already known and your main question is how much output you need and whether legacy 510 support is required.

  • If your system uses ZMI 501A electronics, the 7705 is the head that explicitly states that relationship.
  • Decide on 250uW versus 350uW based on your measurement needs, not on a generic preference for more power.
  • The legacy 510 option is a compatibility decision, not a performance upgrade; choose Yes only if your setup requires it.

Trade-Offs to Weigh

  • Beam and mounting flexibility vs. electronics-specific design: The ZMI 7702 gives you beam and mounting choices but does not state an electronics pairing in the catalog. The ZMI 7705 states a specific electronics pairing but does not offer beam or mounting choices. Pick the head whose fixed constraint matches your system. If you cannot confirm your electronics, resolve that before choosing either head.
  • Output power choice vs. beam size choice: The ZMI 7705 lets you choose 250uW or 350uW output power. The ZMI 7702 lets you choose 6mm or 3mm beam. These are different levers: one affects signal level, the other affects how the beam fits your optics. Decide which lever your setup actually needs.
  • Legacy 510 requirement: The ZMI 7705 can be ordered with or without the legacy 510 requirement. This is a compatibility flag, not a performance tier. Order the version your existing electronics expect. Check your current electronics documentation for the 510 requirement before ordering.

Product Facts

  • ZMI 7702 Laser: Offered with 6mm and 3mm beam options and Narrow or Wide mounting options, each required at order. You can match the head to your existing optical path and mounting hardware instead of adapting the setup around the laser.

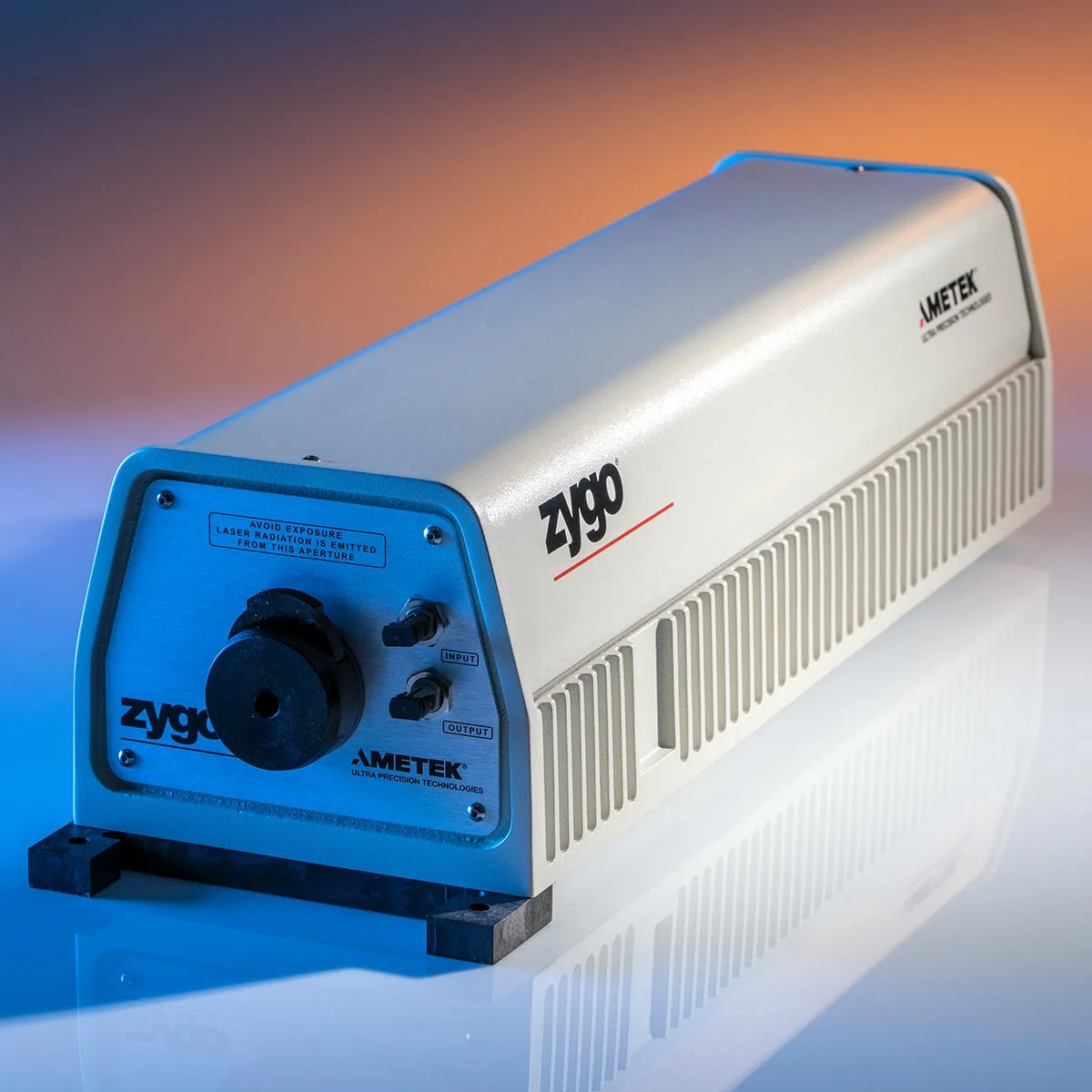

    ZMI 7702 Laser

    ZMI 7702 Laser

  • ZMI 7705 Laser: Designed for use with ZMI 501A electronics and available in 250uW or 350uW output power, with or without the legacy 510 requirement. If your electronics are already ZMI 501A, this head removes the guesswork about power and legacy compatibility.

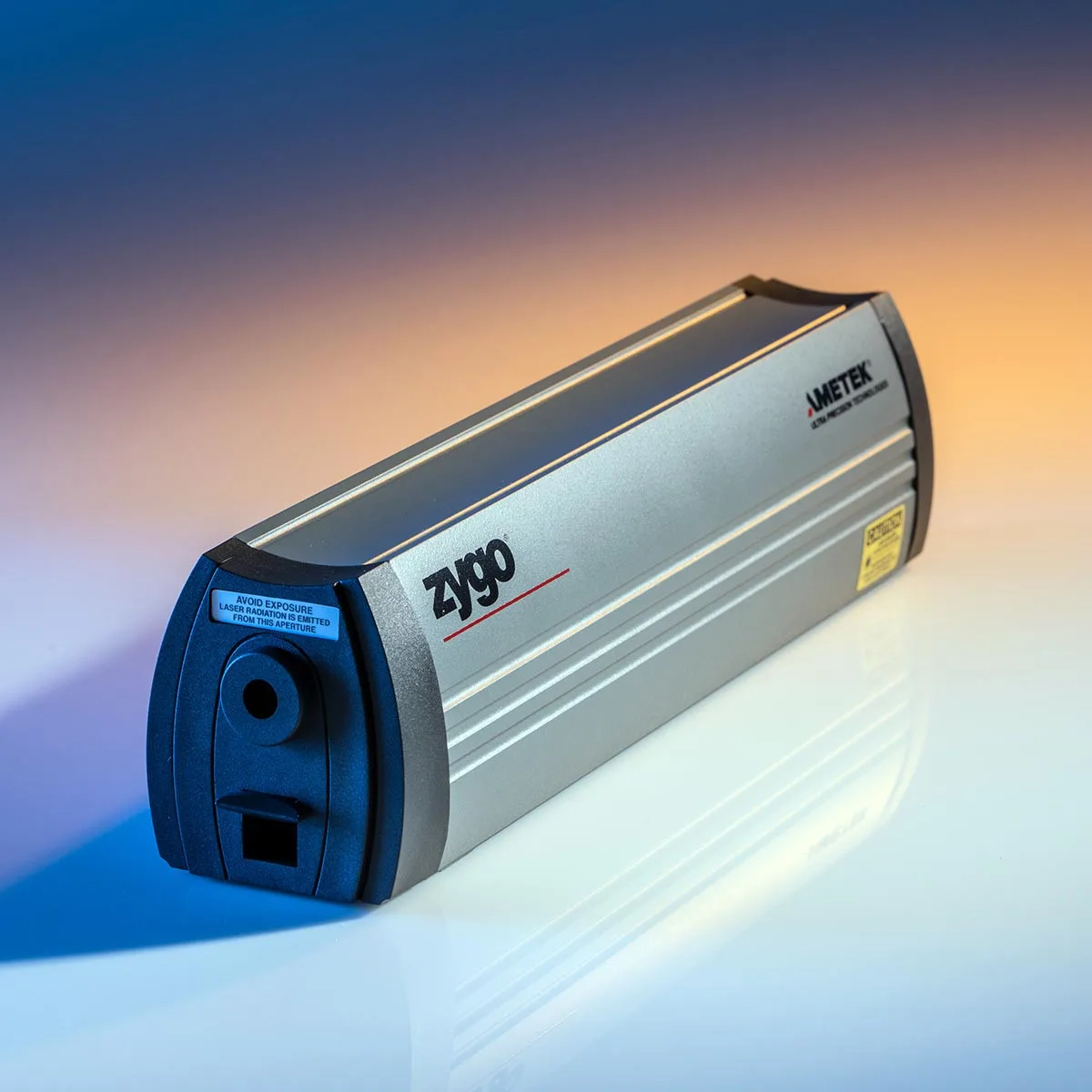

    ZMI 7705 Laser

    ZMI 7705 Laser

Which Head Fits Your System?

Best for

  • Systems where beam diameter and mounting style are the deciding constraints.
  • Setups that need a 6mm or 3mm beam and a Narrow or Wide mount.
  • Users who want to match an existing optical and mechanical interface.

Not for

  • Systems built around ZMI 501A electronics that need a stated pairing.
  • Setups that require a choice of 250uW or 350uW output power.
  • Installations that need the legacy 510 option explicitly addressed.
