Quick answer

Use a C-mount to Sony E-mount adapter to mount CCTV or cine lenses on Sony Alpha mirrorless bodies. Because C-mount flange distance is 17.526mm and Sony E-mount is 18mm, the adapter must be thin and precise; the Fotodiox C-Mount to Sony E adapter guarantees infinity focus or beyond. Expect manual focus, manual aperture, and possible corner vignetting on full-frame sensors.

Why C-mount lenses need a thin, precise adapter

C-mount lenses sit much closer to the sensor than typical SLR lenses. The C-mount flange distance is 17.526mm, while Sony E-mount is 18mm. That 0.474mm difference means the adapter must be extremely thin and accurately machined. If it is too thick, you lose infinity focus; if it is too thin, the lens may not lock securely or may focus past infinity. A high-tolerance adapter like the Fotodiox C-Mount to Sony E-Mount adapter is designed to hit that precise thickness so you can reach infinity focus or beyond.

Check sensor coverage before you mount

Most C-mount CCTV and cine lenses are built for smaller formats, often 1/3-inch, 1/2-inch, or 1-inch sensors. On a full-frame Sony Alpha body, you will usually see heavy vignetting or a circular image. On APS-C models, coverage improves but may still vignette. If you want full-frame coverage, look for C-mount lenses explicitly designed for larger formats, which are rare and often expensive. For typical CCTV lenses, plan to use crop mode or accept the vignette as a creative effect.

Set up your camera for manual exposure and focus

After mounting the adapter and lens, switch your Sony Alpha to Manual (M) or Aperture Priority (A) mode. Set the camera to release without a lens using the 'Release without lens' or 'Shutter without lens' custom setting. Turn off autofocus and use focus peaking and magnification to confirm sharpness. Because most C-mount lenses have a manual aperture ring, you will control exposure with the lens aperture and the camera's shutter speed or ISO. If your lens has no click stops, adjust aperture slowly while watching the histogram.

Fine-tune focus and deal with short-focus limitations

Not all C-mount adapters allow infinity focus. Some, like the Fotodiox C-Mount to Canon EF adapter with focus confirmation chip, are short-focus only and will not focus to infinity. For Sony E-mount, the thin adapter design usually preserves infinity focus, but you should test at infinity before a shoot. If you cannot reach infinity, the adapter may be too thick or the lens may be designed for a different flange standard. Also note that some C-mount lenses have a protruding rear element that can interfere with the adapter or sensor; check clearance before forcing the lens on.

Step-by-step setup

  1. Power off the camera and clear the sensor area: Turn off your Sony Alpha and remove the body cap. Use a blower to remove any dust from the sensor and the adapter threads. A clean sensor prevents spots that become visible at small apertures. Checkpoint: never change lenses in a dusty or windy environment.
  2. Attach the adapter to the camera body: Align the adapter's mount index with the camera's mount mark and twist until it locks. Do not force it. The Fotodiox adapter should seat flush with no wobble. Common mistake: mounting the adapter backwards; the lens mount side faces away from the camera.
  3. Mount the C-mount lens onto the adapter: Thread the lens clockwise into the adapter's C-mount threads until snug. Avoid over-tightening, which can damage the threads or misalign the lens. Checkpoint: the lens should sit perpendicular to the sensor with no tilt.
  4. Enable release without lens and set manual mode: In your camera menu, turn on 'Release without lens' or 'Shutter without lens'. Set the mode dial to M or A. Turn off autofocus and set focus peaking to a color you can see easily. Common mistake: leaving the camera in a mode that requires electronic lens communication, which prevents shutter release.
  5. Test infinity focus and adjust if needed: Point the camera at a distant object and turn the lens focus ring to infinity. If the image is blurry, your adapter may be too thick or the lens may not be compatible. The Fotodiox C-Mount to Sony E adapter guarantees infinity focus or beyond, so if you cannot reach it, check that the adapter is fully seated. Checkpoint: if infinity is unreachable, do not shim the adapter unless you are experienced; return or exchange it instead.
  6. Set aperture and exposure, then fine-tune focus: Use the lens aperture ring to choose an f-stop. Start at f/4 or f/5.6 to reduce vignetting and improve sharpness. Adjust shutter speed and ISO to get a balanced histogram. Use focus magnification to confirm critical focus. Common mistake: judging focus on the rear screen without magnification; C-mount lenses can be very sharp but only when focused precisely.

Product facts

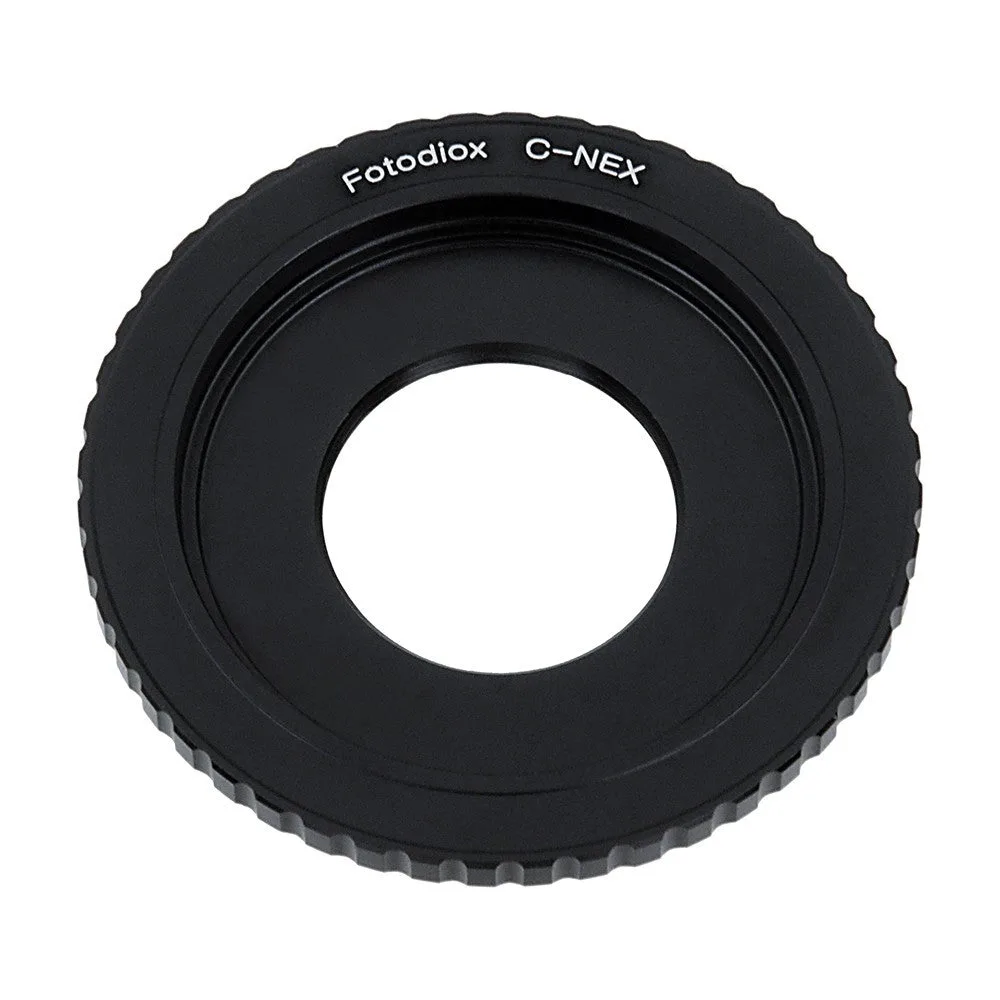

  • Fotodiox Lens Mount Adapter - C-Mount CCTV / Cine Lens to Sony Alpha E-Mount Mirrorless Camera Body: Mounts C-Mount CCTV / Cine Lenses to Sony E-mount mirrorless cameras; high-tolerance precision craftsmanship; infinity focus or beyond guaranteed; all-metal design; hardened anodized aluminum construction; 24-Month Fotodiox Warranty. This adapter is specifically built for the C-mount to Sony E-mount pairing, and the infinity focus guarantee means you can use CCTV lenses for distant subjects without a correction lens. The metal build resists wear from frequent lens changes.
