Quick answer
Mount the tic tac toe panel to a flat, solid framing member at roughly chest height for the kids who will use it, using the hardware that came with the panel. Drill pilot holes, keep the panel square, and tighten bolts so the panel sits flush without crushing the wood. If your set has no suitable flat surface, add a cedar mounting board first rather than forcing the panel onto a curved or thin part.

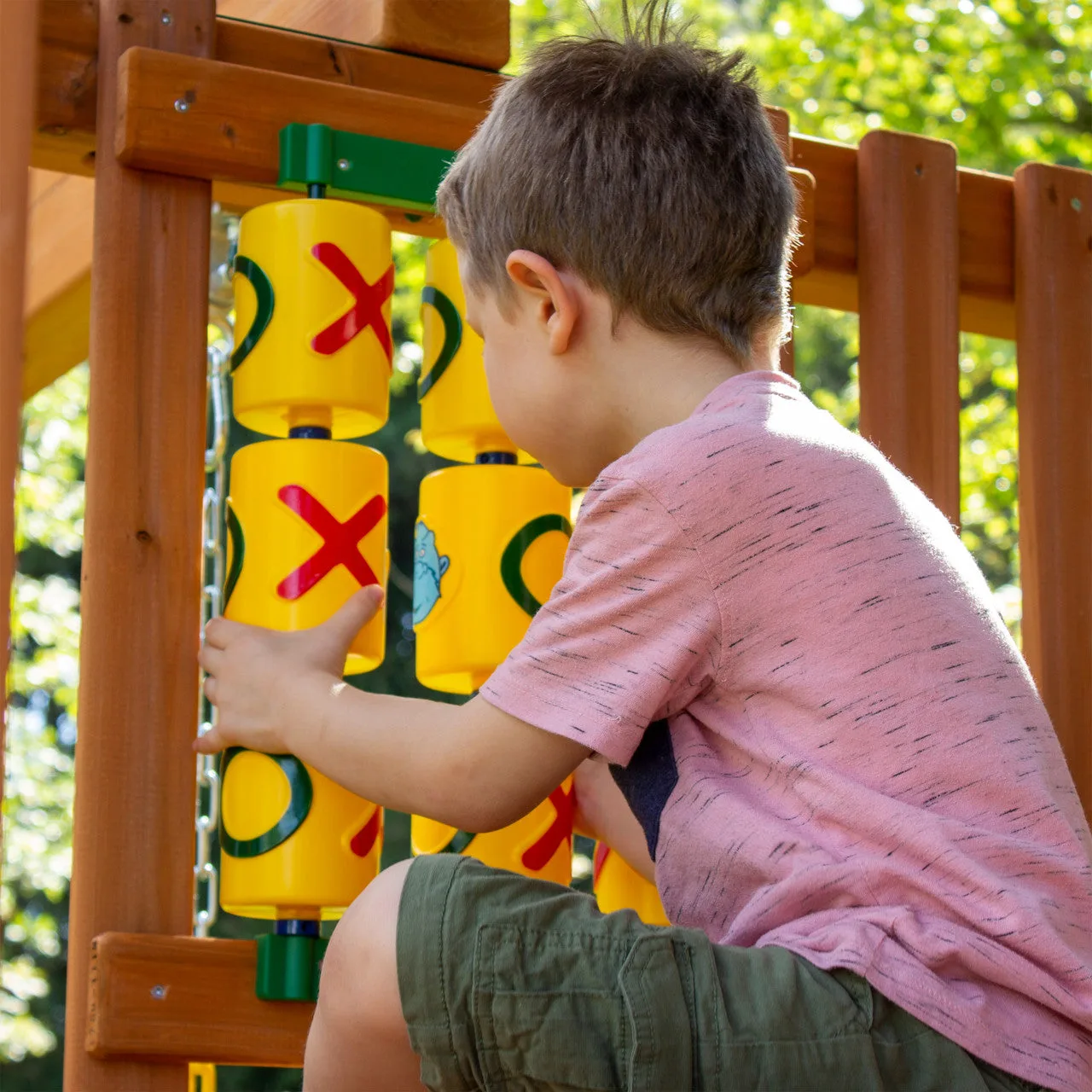

tic tac toe panel
A tic tac toe panel is one of the easiest swing set accessories to add, but it still needs a solid mounting surface and the right hardware. Most problems come from mounting too high, skipping pilot holes, or attaching to trim instead of structure.
This guide walks through the full process on a wooden playset, using the cedar construction and pre-drilled, pre-sanded parts you find on Gorilla Playsets models. Check your panel's included hardware first, because that determines your drill bits and bolt length.
Before you drill: check the panel and the mounting spot
Unbox the panel and lay out every piece of hardware. Most play panel setups include bolts, washers, and nuts, but confirm the count against the instructions before you climb anything. If the panel did not include fasteners, use exterior-grade hardware sized for the panel's pre-drilled holes, with washers on both sides.
Next, find the mounting location. You want a flat vertical surface on a structural post or the clubhouse wall, not a decorative trim board. On cedar playsets, the framing is solid enough to hold a panel, while thin trim can split. Hold the panel in place and mark the top edge with painter's tape so you can re-check height before drilling.
- Checkpoint: the panel should sit flush against the wood with no rocking when you press it by hand.
- If the surface is curved or uneven, plan to add a flat cedar mounting board instead of bending the panel.
Set the mounting height for the kids who will actually play
Height matters more than most people expect. A panel mounted too high is hard for younger kids to reach, and one mounted too low gets kicked or stepped on. A practical target is chest height for the primary user, which usually lands the panel center between 36 and 48 inches above the play deck or ground.
If two children of very different sizes share the set, favor the younger child and mount slightly lower. The game is more likely to get used when the smallest player can reach every square without a stool. Mark the height on both sides with tape so the panel stays level as you work.
- Common mistake: mounting by eye on one side only, which leaves the panel visibly crooked.
- Checkpoint: step back several feet and confirm the panel looks level from the yard, not just up close.
Drill pilot holes and fasten the panel
With the panel taped in place, mark each mounting hole through the panel onto the wood. Remove the panel and drill pilot holes slightly narrower than your bolt shank. Cedar drills easily, but a pilot hole prevents splitting near the end of a board, which is exactly where many panels land.
Reposition the panel, insert the bolts, and add washers on both sides before threading the nuts. Tighten in a cross pattern, snug but not crushing the wood fibers. Over-tightening compresses cedar and loosens the joint over time, so stop when the washer just seats against the surface.
- Common mistake: drilling pilot holes the same diameter as the bolt, which removes the threads' grip.
- Checkpoint: give the panel a firm wiggle. It should not move independently of the post or wall.
Finish, seal, and test the installation
Wipe away cedar dust and check for sharp edges or splinters around the new holes. If your set is finished in stain, touch up the bare wood at the bolt heads with a matching exterior stain or sealant. This small step protects the fastener area from moisture and keeps the panel looking integrated.
Then test it the way kids will. Have a child spin the pieces, reach every square, and lean on the panel. Re-tighten any bolt that shifted. Panels mounted to a solid post with proper washers rarely need attention after this, but a quick check at the start of each season is smart.
- Common mistake: skipping the sealant and leaving exposed end grain around the holes.
- Checkpoint: no movement, no sharp hardware sticking out, and every square reachable by the intended user.
Tic tac toe panel installation steps
- Lay out the hardware: Unpack the panel and match bolts, washers, and nuts against the instructions before drilling anything. Checkpoint: missing hardware? Source exterior-grade replacements before you start.
- Choose a structural mounting surface: Pick a flat post or clubhouse wall, not decorative trim, and confirm the panel sits flush. Common mistake: mounting to thin trim that splits under load.
- Mark the height with tape: Aim for chest height on the primary user, roughly 36 to 48 inches above the play deck, and tape both sides level. Checkpoint: step back and confirm it looks level from the yard.
- Drill pilot holes: Mark holes through the panel, remove it, and drill pilot holes slightly narrower than the bolt shank. Common mistake: skipping pilot holes and splitting cedar near board ends.
- Fasten with washers on both sides: Insert bolts, add washers, and tighten in a cross pattern until snug without crushing the wood. Checkpoint: the panel should not move independently of the post.
- Seal and test: Touch up bare wood at the bolt heads with exterior stain, then have a child reach every square and lean on the panel. Next step: re-check bolt tightness at the start of each play season.
Playsets that make panel mounting straightforward
- Chateau Swing Set: Premium cedar wood swing set that is pre-cut, pre-sanded, pre-stained, and ready to assemble in your backyard over the weekend. Pre-drilled, pre-sanded cedar framing gives you clean, flat surfaces for swing set panel mounting without extra prep work.

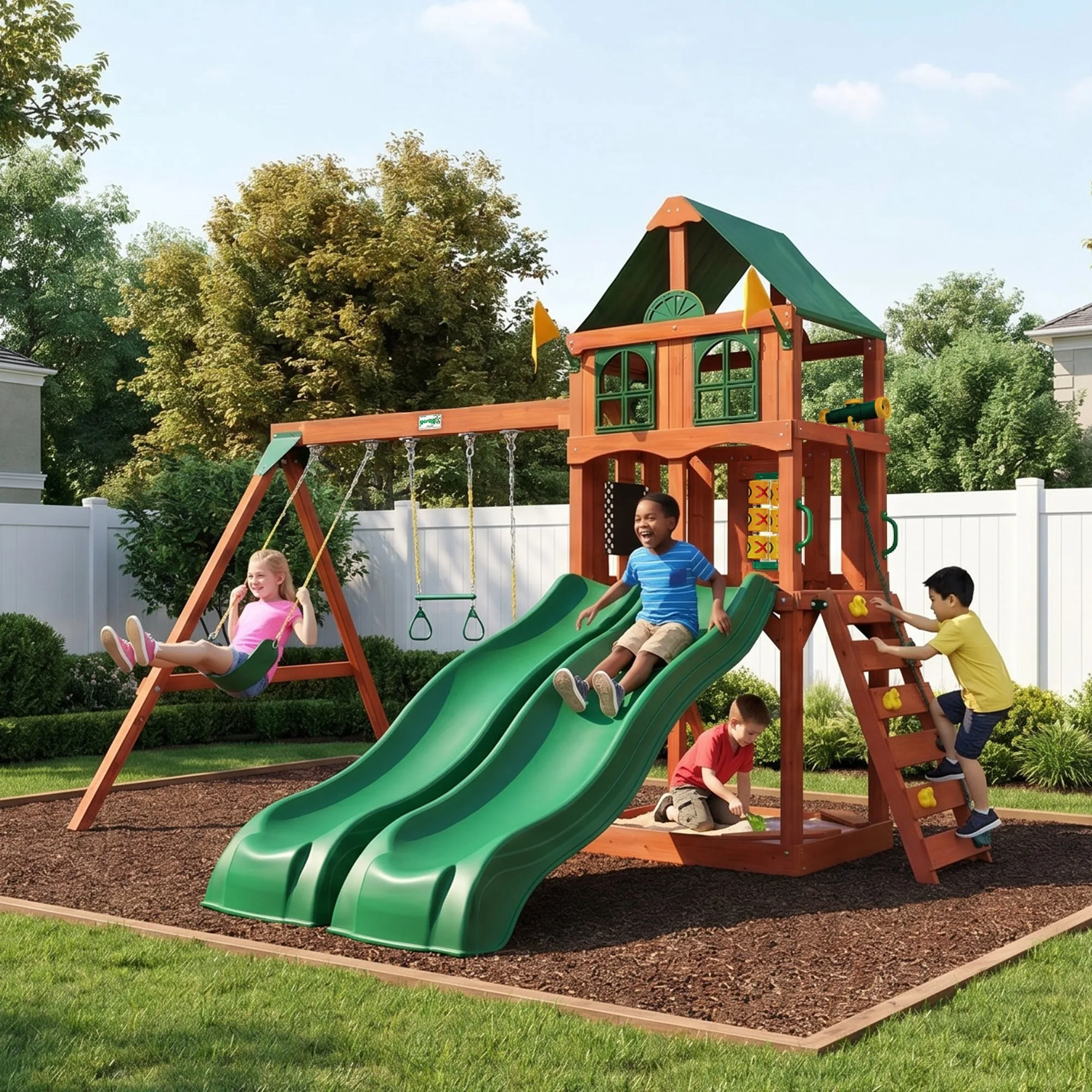

- PlayMaker Deluxe Swing Set: Features a two-story clubhouse, rock wall, two Alpine Wave Slides, and a built-in sandbox below. A clubhouse wall provides a natural, solid mounting location for a tic tac toe panel at kid-friendly height.
- Summerville Deluxe Swing Set: Wooden playset with activities for little ones and a hanging swing underneath for adults. Multiple play zones mean you can choose the panel location that best fits the age of the primary user.
Mounting a tic tac toe panel comes down to a solid surface, the right height, and pilot holes. Do those three things and the panel stays tight and usable for years, even through active play.
