Quick answer
To install a gear shifter on your Jasion ebike correctly, you'll need a few basic tools, follow the cable routing path, and adjust the derailleur limit screws and tension. The process takes about 30 minutes and ensures reliable shifting.
Why proper installation matters for your Jasion ebike
A gear shifter that's installed incorrectly can cause skipped gears, chain drops, or noisy operation. On an ebike, the added motor torque amplifies these issues, so getting the alignment and tension right is essential for both performance and component longevity.
The Jasion gear shifter is designed for 7-speed systems, so it's important to match the shifter to your drivetrain. If you're replacing an old shifter, note that cable routing and handlebar clamp diameter can vary—measure before you buy.
Step-by-step installation guide
- Gather tools and remove the old shifter: You'll need a 4mm Allen wrench, a Phillips screwdriver, and cable cutters. Loosen the clamp bolt on the old shifter and slide it off the handlebar. Remove the shift cable from the derailleur by loosening the anchor bolt. Check that the new shifter's clamp diameter matches your handlebar (usually 22.2mm or 31.8mm).
- Attach the new shifter to the handlebar: Slide the new shifter onto the handlebar in your preferred position (typically near the brake lever). Tighten the clamp bolt to 4–5 Nm—do not overtighten, as it can crack the shifter body. Position the shifter so the cable exits toward the front of the bike for a clean cable run.
- Route and connect the shift cable: Thread the new shift cable through the shifter housing and along the frame to the rear derailleur. Use cable guides or zip ties to secure the housing. Insert the cable end into the derailleur anchor bolt, pull it taut, and tighten the bolt. Leave a little slack in the cable before tightening—too much tension can prevent the derailleur from reaching the smallest cog.
- Adjust the derailleur limit screws: Turn the high-limit screw (marked 'H') so the jockey wheel aligns with the smallest rear cog. Then turn the low-limit screw (marked 'L') to align with the largest cog. Use the barrel adjuster on the shifter to fine-tune cable tension until shifting is crisp across all gears. If the chain hesitates or overshoots a gear, adjust the barrel adjuster by a quarter-turn at a time.
- Test and finalize: Spin the pedals and shift through all 7 gears while the bike is stationary (or on a stand). Listen for clicking or grinding. If all gears engage smoothly, tighten any loose cable ends and secure excess cable with a cap or tape. A quick road test confirms the setup works under load—shift through the gears while pedaling gently uphill.
Product fact
-

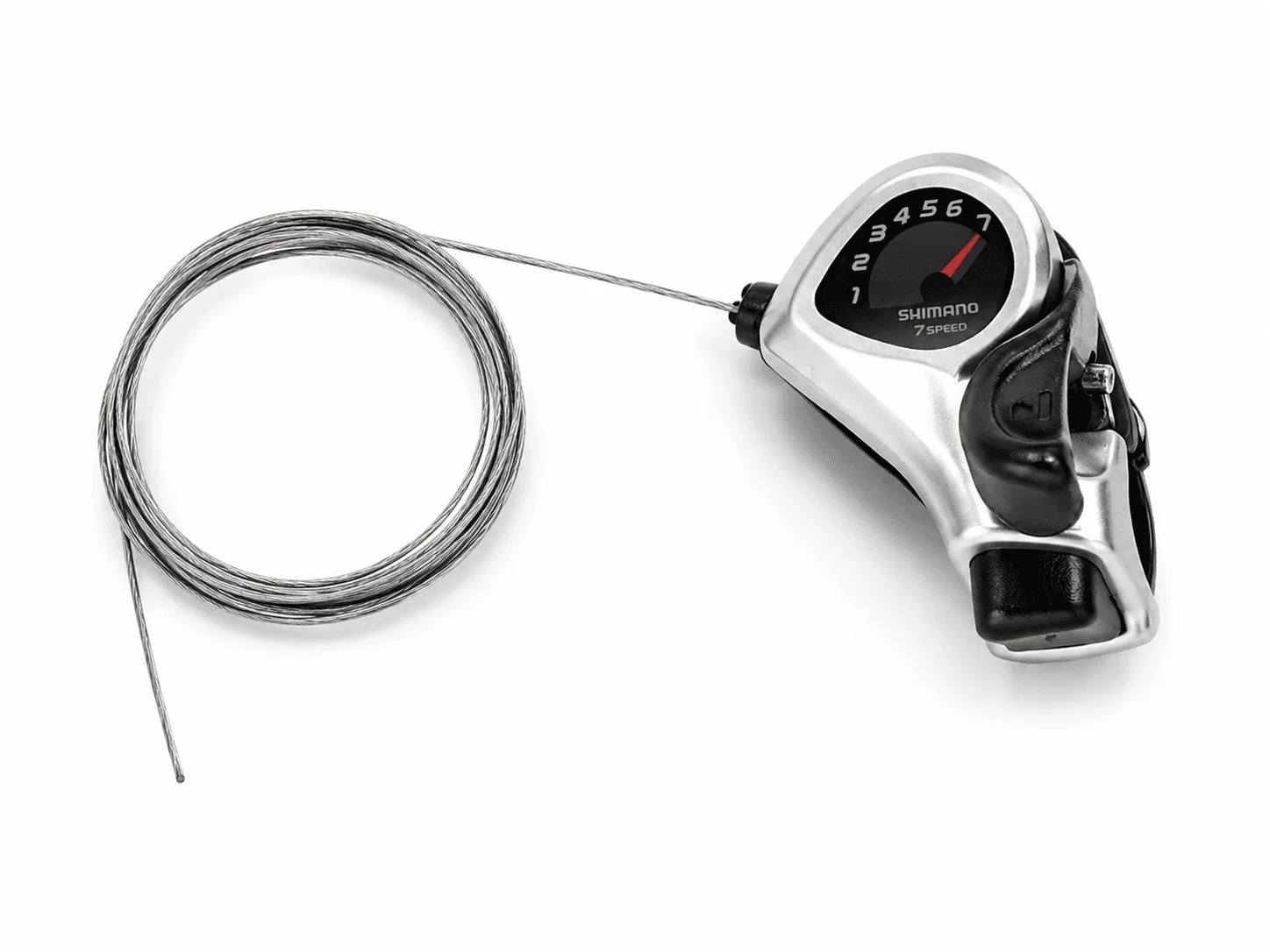

Gear Shifter: This 7-speed gear shifter provides quick, precise gear changes and is designed for compatible Jasion electric bikes. Using a shifter matched to your ebike's drivetrain avoids compatibility issues and ensures smooth shifting under motor load.
