Quick Answer
To install a tire swing beam add-on, first confirm your playset can support the extra weight, then mount the beam securely to the fort structure using the provided hardware, and finish with a safety check before letting kids play.
Check Compatibility First
Before you buy or start, verify that your existing playset fort structure is compatible with a beam add-on. The add-on is designed for many Gorilla Playsets forts, but not all models. Measure the distance between support posts and compare it with the beam's mounting brackets. If your fort has unusual spacing or non-standard lumber, the beam may not fit without custom modifications.
Weight and Clearance Considerations
A tire swing adds dynamic loads—twisting, spinning, and swinging—that can stress the structure more than a standard swing. Ensure your fort's beams and posts are in good condition, free of rot or cracks. Also, check that the swing area has at least 8 feet of clearance on all sides and that the swing height allows for safe entry and exit. If your playset is older or shows wear, consider reinforcing the mounting points.
Installation Steps
- Prepare the fort structure: Clear the area under the beam location and remove any existing swings or obstacles. Inspect the fort posts and beams for damage. If the fort is not level, adjust the legs before proceeding. Check that the mounting surface is solid and level.
- Position the beam: Hold the beam in place between the support posts at the desired height. Use a level to ensure it is horizontal. Mark the bracket holes with a pencil. Double-check the beam is level before drilling.
- Drill pilot holes: Using a drill with a bit slightly smaller than the lag screws, drill pilot holes at the marked locations. This prevents the wood from splitting. Always drill pilot holes in wood to avoid cracking.
- Mount the beam: Attach the beam to the fort using the provided lag screws and brackets. Tighten with a wrench or socket, but do not over-tighten—this can strip the wood or damage the bracket. Ensure all bolts are snug, not over-tightened.
- Attach the tire swing: Hang the 360° Turbo Tire Swing from the beam using the included hardware. Follow the manufacturer's instructions for the chain or rope length to achieve the proper seat height. Adjust the swing height so the child's feet can touch the ground slightly when seated.
- Perform a safety check: Test the swing by pushing it gently and observing the motion. Check that the beam does not wobble, and that the swing clears the ground and any obstacles. Verify that all hardware is tight and that there are no sharp edges or protrusions. Inspect the installation for any loose parts or hazards before allowing play.
Product Facts
-

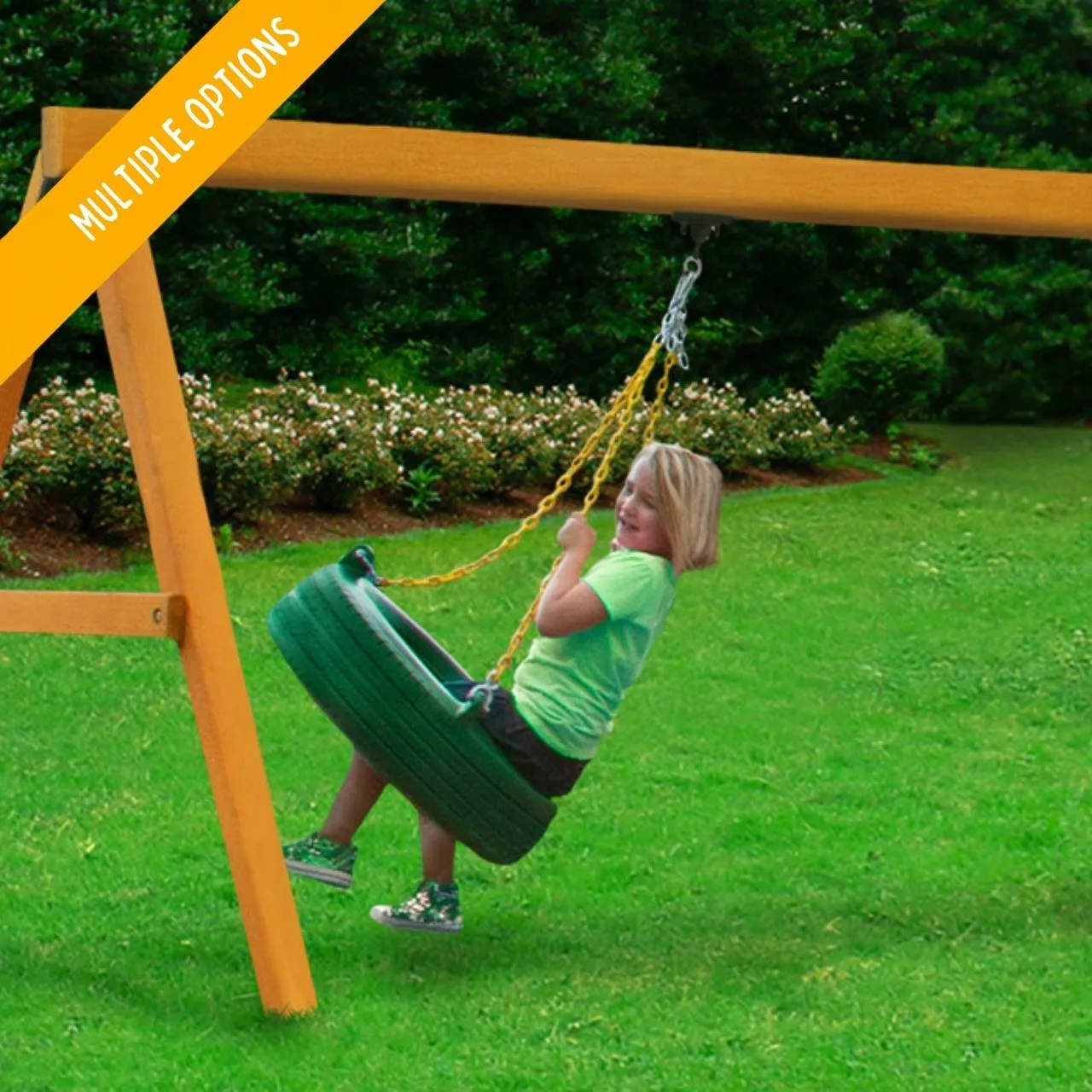

Tire Swing Beam Add-On: The Tire Swing Beam Add-On includes the 360° Turbo Tire Swing and all materials needed to add to an existing Gorilla Playsets fort structure. This add-on provides everything you need for a complete installation, so you don't have to source extra brackets or hardware separately.
