Quick answer

Mount the https://jasionbikenuf.com/products/jasion-ebike-front-basket-1-c916416179105fd69b91ad17-1805243Jasion Ebike Front Basket Iron Bottom directly to your bike's front rack using the included hardware, not to the handlebar. Tighten the bolts evenly, keep cables and the wheel clear, and test the empty basket by hand before riding. If your Jasion model does not have a front rack, stop and confirm rack compatibility first.

Check rack and handlebar fit before you start

The Jasion Ebike Front Basket Iron Bottom is a rack-mounted basket, so it needs a front rack or compatible mounting points on your Jasion ebike. It is not a handlebar bag, and the catalog does not list handlebar clamp sizes, so do not assume it will strap to your bars. If your bike has no front rack, you will need to source one that matches your frame before this basket can be used.

  • Confirm your Jasion model has a front rack or front mounting points.
  • Check that the basket's mounting holes line up with the rack's bolt pattern.
  • Look for brake cables, shifter cables, and wiring that pass through the mounting area.

Gather tools and protect the frame

You will need the hardware included with the basket, plus a set of metric hex keys and a Phillips screwdriver. A torque wrench is worth having so you can tighten bolts evenly without crushing thin rack tubing. Lay a towel under the work area to keep the basket and your frame from getting scratched.

  • Included mounting hardware from the basket kit.
  • Metric hex keys and a Phillips screwdriver.
  • Torque wrench if available, plus a soft cloth or towel.

Mount the basket to the front rack

Set the basket on the rack so its iron bottom sits flat and the basket is centered over the front wheel. Thread each bolt by hand first, then tighten in a crisscross pattern so the basket does not shift to one side. The steel encasing and hardware are designed for stability, but only if the basket is seated evenly.

  • Center the basket over the front wheel for balanced payload.
  • Start all bolts by hand before tightening any of them fully.
  • Tighten in a crisscross pattern to keep the basket square.

Check cable, wheel, and steering clearance

Turn the handlebar fully left and right and watch the basket as it moves. The basket should not contact the frame, cables, brake levers, or the front tire at any point in the steering range. If something rubs, adjust the mounting position or add spacers before you ride.

  • Turn the bars lock to lock and look for contact.
  • Keep brake and shifter cables from being pinched or stretched.
  • Confirm the basket does not touch the front tire under load.

Load limits and first-ride checks

The catalog does not list a maximum load rating for this basket, so treat it as a light-cargo carrier and start with a small load. Place heavier items on the bottom, keep the load centered, and avoid tall items that can shift. Before your first ride, push down on the empty basket by hand to confirm the rack and bolts are holding firm.

  • Start with a light load and increase gradually.
  • Put heavier items low and centered in the basket.
  • Re-check bolt tightness after the first few rides.

Step-by-step mounting process

  1. Confirm front rack compatibility: Check that your Jasion ebike has a front rack or mounting points that match the basket's bolt pattern. Common mistake: assuming the basket clamps to the handlebar. It does not.
  2. Lay out hardware and tools: Set out the included hardware, metric hex keys, a Phillips screwdriver, and a torque wrench if you have one. Checkpoint: all bolts should thread by hand before you tighten anything.
  3. Seat the basket on the rack: Place the basket so its iron bottom sits flat and centered over the front wheel. Common mistake: mounting it off-center, which makes steering pull to one side.
  4. Tighten bolts in a crisscross pattern: Start each bolt by hand, then tighten gradually in a crisscross order so the basket stays square. Checkpoint: the basket should not rock or shift when you press on it.
  5. Test steering and cable clearance: Turn the handlebar fully left and right and check for contact with cables, frame, or tire. Common mistake: ignoring a stretched brake cable until it affects braking.
  6. Load light and re-check after riding: Start with a small, centered load and re-check bolt tightness after your first few rides. Next step: if you need more capacity, consider a rear rack instead of overloading the front.

Product facts

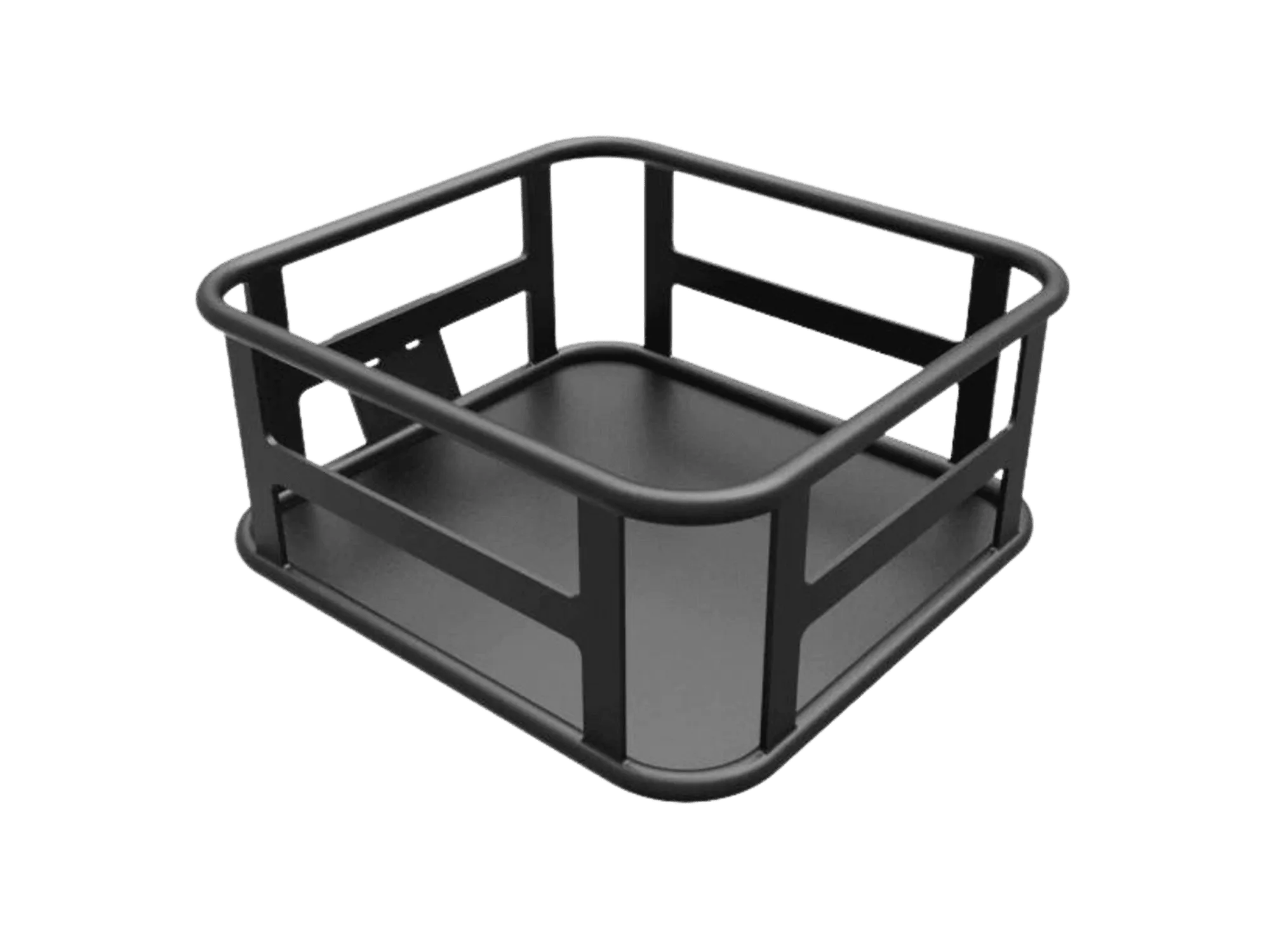

  • Jasion Ebike Front Basket Iron Bottom: Rack-mounted front basket with a steel encasing and included hardware, sized 324*303*146 (inch). It mounts to a front rack rather than the handlebar, so rack compatibility is the first thing to confirm.
  • Jasion Ebike Front Basket Iron Bottom: Baskets mounted over the front wheels create a perfect balance for your overall payload. Centering the basket over the wheel keeps steering predictable when you carry a load.
  • JasionBike Tool-Free Mount Bottle Holder: Tool-free mount with an adjustable clamp and no drilling required. If your Jasion model lacks front rack mounts, this bottle holder is a simpler handlebar-area accessory that needs no rack.
