Quick Answer

Replacing an indoor elliptical crank is a straightforward repair you can do at home with basic tools. The key is confirming the part fits your machine before ordering.

When to Replace the Crank

A worn crank usually shows up as a clicking noise, uneven pedal motion, or excessive play in the pedal arm. If the crank is bent or the threads are stripped, replacement is the only safe fix. Ignoring it can damage the drive system and make the machine unsafe.

One-Piece vs. Two-Piece Cranks

Many indoor ellipticals use a one-piece crank, meaning both pedal arms are connected by a single forged steel piece. This design is simpler to install and often more durable than a two-piece setup. The Sunny Health & Fitness Indoor Elliptical Exerciser One-Piece Crank is an example of this type. Before buying, measure the crank arm length and spindle diameter to confirm compatibility with your machine.

Step-by-Step Replacement Process

  1. 1. Safety First – Unplug and Stabilize: Unplug the elliptical from the wall outlet. Place a mat or towel under the machine to catch any dropped parts. Use a level to ensure the machine is stable before you begin. Working on an unplugged machine prevents accidental startup. A stable base keeps the frame from shifting while you apply torque.
  2. 2. Remove the Pedal Arms: Use a hex wrench or socket set to remove the bolts securing each pedal arm to the crank spindle. Some machines have a retaining clip or a dust cover that must be removed first. Keep all fasteners organized. Mark the left and right pedal arms with tape so you don't mix them up during reassembly.
  3. 3. Extract the Old Crank: Locate the crank retaining bolt or nut on the center hub. Use a crank puller tool if the crank is pressed on; otherwise, a standard socket may work. Remove the old crank by pulling it straight off the axle. If the crank is stuck, apply penetrating oil and let it sit for 15 minutes. Never use a hammer – you can damage the axle bearings.
  4. 4. Install the New Crank: Align the new one-piece crank with the axle keyway or flat spot. Slide it onto the axle until it seats fully. Tighten the retaining bolt or nut to the torque specified in your machine's manual (typically 35–45 ft-lb). Over-tightening can strip the threads or crack the crank. Use a torque wrench if available.
  5. 5. Reattach the Pedal Arms: Position each pedal arm onto the crank spindle. Insert and tighten the bolts in a crisscross pattern to ensure even pressure. Reinstall any dust covers or clips you removed earlier. Check that the pedals are parallel to the floor and spin freely before moving to the final step.
  6. 6. Test and Adjust: Plug the machine back in and pedal slowly for a few revolutions. Listen for any clicking or grinding. If the motion feels smooth and silent, the replacement is successful. If not, recheck the tightness of all fasteners. A small amount of resistance is normal during the first few minutes as the new crank seats. If noise persists, verify the crank length matches your original part.

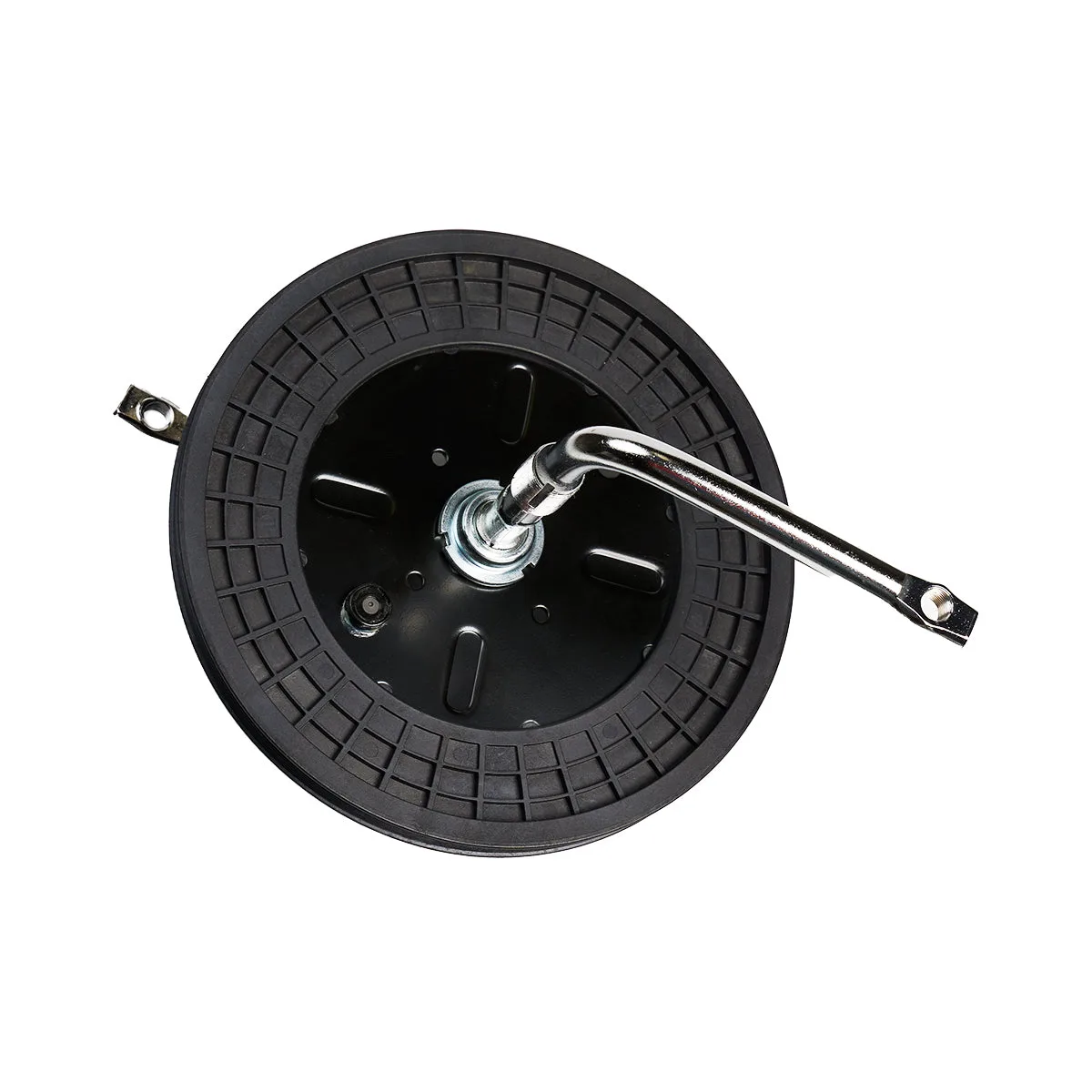

  • Indoor Elliptical Exerciser One-Piece Crank: Sunny Health & Fitness elliptical crank replacement part. This 1-piece elliptical crank works in tune with your elliptical’s drive system to transfer power from your legs into motion that drives your machine forward. A one-piece crank simplifies installation and reduces the chance of misalignment compared to a two-piece design.
