Quick Answer

To choose the right pop-up sprinkler nozzle pattern, match the nozzle's arc to the shape of the area you water. Use half pattern nozzles for strips along sidewalks or fences, quarter for corners, and full circle for open areas. Adjustable arc nozzles offer flexibility when layouts change.

Pop-up sprinkler nozzles come in different patterns that determine how water spreads across your lawn. Choosing the right pattern prevents wasted water and brown patches. This guide explains the differences between half, quarter, and adjustable patterns, and helps you match them to your landscape.

Whether you are installing a new system or replacing worn nozzles, understanding spray patterns is key. We'll cover practical decision rules and show how specific Orbit products fit common scenarios.

Why Nozzle Patterns Matter

The pattern of a pop-up sprinkler nozzle dictates the shape of the watered area. A half pattern nozzle waters a semicircle, ideal for edges of lawns along sidewalks or driveways. A quarter pattern covers a 90-degree corner, perfect for intersections of hardscape. Full circle patterns cover open lawn areas without wasting water on non-plant surfaces.

Using the wrong pattern leads to overspray on pavement, dry spots, or uneven watering. Matching the pattern to the shape of your planting area ensures efficient irrigation and healthier turf.

  • Measure the length and width of the area you need to water to determine the required radius and pattern.

Types of Nozzle Patterns

Common nozzle patterns include quarter (90°), half (180°), and full circle (360°). Some nozzles offer adjustable arcs, allowing you to set any angle between 0° and 360°. Fixed patterns are simpler and often more reliable, while adjustable ones provide flexibility.

For example, the Multi-Stream Bubbler Half Pattern from Orbit delivers a half-circle spray with adjustable flow from trickle to full stream. This is useful for targeted watering of shrubs or trees. The 4" Professional Spray Head PR w/Half Nozzle combines a fixed half pattern with a pressure regulator to maintain consistent spray.

  • Think about how much control you need: fixed patterns are set-and-forget, adjustable arcs let you fine-tune coverage.

Factors to Consider When Choosing

Consider the shape of your lawn, water pressure, and the spacing between sprinkler heads. Head-to-head coverage ensures even watering, so choose a radius that overlaps with adjacent heads. Also, check the recommended spacing for each nozzle—for instance, the Multi-Stream Bubbler suggests 5 ft. spacing.

Pressure regulation matters. High or fluctuating pressure can cause misting and uneven distribution. Orbit's Professional Spray Heads come with pressure regulators preset at 30 psi, adjustable to 40 psi, which helps maintain consistent performance.

  • Always check the nozzle's recommended spacing and radius to avoid dry spots.

Decision Rules for Nozzle Patterns

  • Identify the shape: Map your lawn and identify straight edges, corners, and open areas. Straight edges need half patterns, corners need quarter, and open areas need full or adjustable. Sketch your yard to visualize pattern placement.
  • Check spacing and radius: Measure distance between heads and compare to the nozzle's recommended spacing. For example, the Multi-Stream Bubbler is designed for 5 ft. spacing. Ensure head-to-head coverage to avoid dry spots.
  • Consider pressure regulation: If your system has high or variable pressure, choose nozzles with built-in regulators like the Professional Spray Head PR to maintain even spray. Stable pressure improves efficiency and longevity.

Orbit Nozzles at a Glance

  • Multi-Stream Bubbler Half Pattern | 54151: Half-circle spray pattern for targeted coverage; adjustable flow control from trickle to full stream; built-in inlet filter prevents clogging; 1/2 In. female threaded inlet; 5 ft. spacing recommendation. Ideal for watering shrubs or small garden beds along a border. The adjustable flow lets you fine-tune water delivery without changing the nozzle.

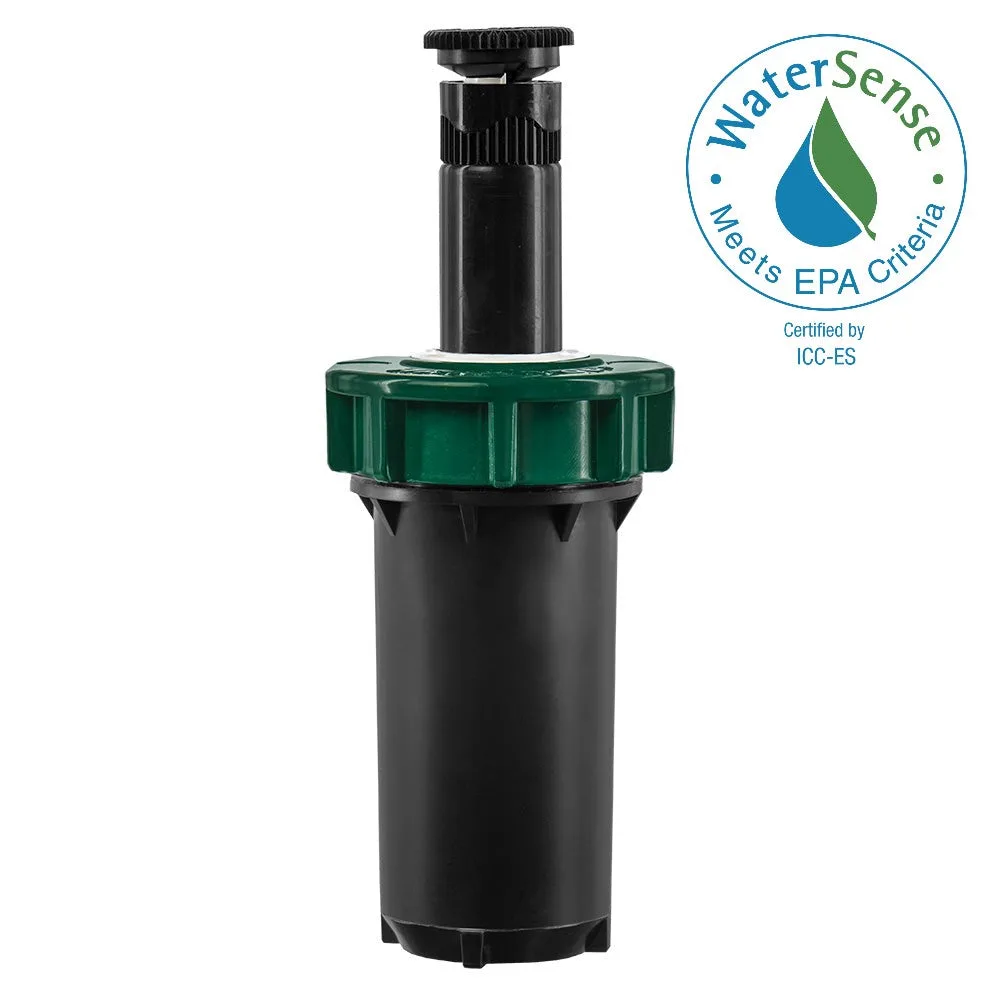

  • 4" Professional Spray Head PR w/Half Nozzle 80345: 4" Pop-up height; pressure regulator factory preset at 30 psi, field adjustable to 40 psi; five sealing surfaces defend against leaks; pressure activated seal; fortified cap; improved filter. Provides consistent half-circle coverage with built-in pressure regulation, reducing misting and water waste. The robust seal design enhances durability.

Choosing the Right Nozzle for Your Yard

Best for

  • Homeowners with straight lawn edges along sidewalks or driveways – choose half pattern nozzles.
  • Gardeners watering shrubs or small beds – the Multi-Stream Bubbler Half Pattern offers adjustable flow.

Not for

  • Large open lawns with no hardscape edges – full circle or adjustable arc nozzles are more appropriate.
  • Areas with high water pressure without regulation – consider pressure-regulated heads to prevent misting.

Choosing the right pop-up sprinkler nozzle pattern is about matching the spray to your landscape's shape. Start with a simple sketch, measure your spaces, and consider pressure regulation for consistent results. Orbit offers a range of patterns and features to fit your needs.
