Quick Answer
To prep your Quest Q-Jet C18-6W launch pack, start by inspecting the motors and igniters, then install the motor with the nozzle end forward in your 18mm rocket. Use the included plug and tape to secure it, connect the igniter leads, and perform a continuity check before launching. Always follow the motor delay (6 seconds) and use a launch rod rated for composite motors.
What Makes the C18-6W Different
The Quest Q-Jet C18-6W is a 18mm composite motor with a White Lightning propellant formulation, delivering a total impulse in the C class range. Unlike black powder motors, composite motors use a polymer case and ceramic nozzle, which means they require slightly different handling—especially during ignition and storage. The 6-second delay is designed for medium-weight rockets, giving you a good balance between altitude and deployment time.
Tools You'll Need
You'll need a launch controller with fresh batteries, a launch pad with a 3/16-inch or larger rod (composite motors can produce more recoil), safety glasses, and a small flathead screwdriver for the igniter clips. Have a clean, dry surface to work on and a fire extinguisher nearby per NAR safety code.
Step-by-Step Flight Prep for the C18-6W Launch Pack
- Inspect the Motor and Igniter: Remove the motor from its packaging. Check the ceramic nozzle for chips or cracks and ensure the polymer case is free of dents. Inspect the included igniter: the pyrogen tip should be intact and the wires unbroken. A damaged igniter may fail to light the motor. Common mistake: using a motor with a cracked nozzle can cause erratic flight or CATO. Discard any damaged components.
- Install the Motor in the Rocket: Slide the motor nozzle-first into the motor mount tube until the thrust ring seats against the tube's aft end. Use the provided motor hook or a retaining clip to secure it. For rockets without a hook, apply a wrap of masking tape around the motor body just behind the thrust ring to create a friction fit. Checkpoint: the motor should not slide forward or backward when the rocket is tilted. A loose motor can shift during boost and cause instability.
- Prepare the Igniter and Plug: Insert the igniter into the nozzle until the pyrogen tip touches the propellant grain. Push the included clay plug (or a wad of recovery wadding) into the nozzle to hold the igniter in place. The plug should be snug but not forced—over-tightening can crush the igniter. Common mistake: leaving the igniter too shallow can result in a failure to ignite. Ensure the tip contacts the propellant.
- Connect the Launch Controller: Attach the igniter clips to the igniter wires: one clip on each wire, making sure they don't touch each other or any metal part of the rocket. Plug the controller into the launch pad leads and perform a continuity test (most controllers beep or light an LED). If no continuity, reseat the igniter or replace it. Checkpoint: never bypass a continuity check. A false positive may indicate a short circuit, which can cause a premature launch.
- Final Safety Check and Launch: Verify the launch area is clear, the safety key is removed until everyone is behind the line, and the launch rod is angled slightly away from spectators (5-10 degrees). Insert the safety key, count down from 5, and press the launch button. Hold the button until the motor ignites—composite motors sometimes take an extra half-second. Common mistake: releasing the button too early can cause a misfire. Keep the button pressed for at least 2 seconds if you don't see ignition.
Product Facts

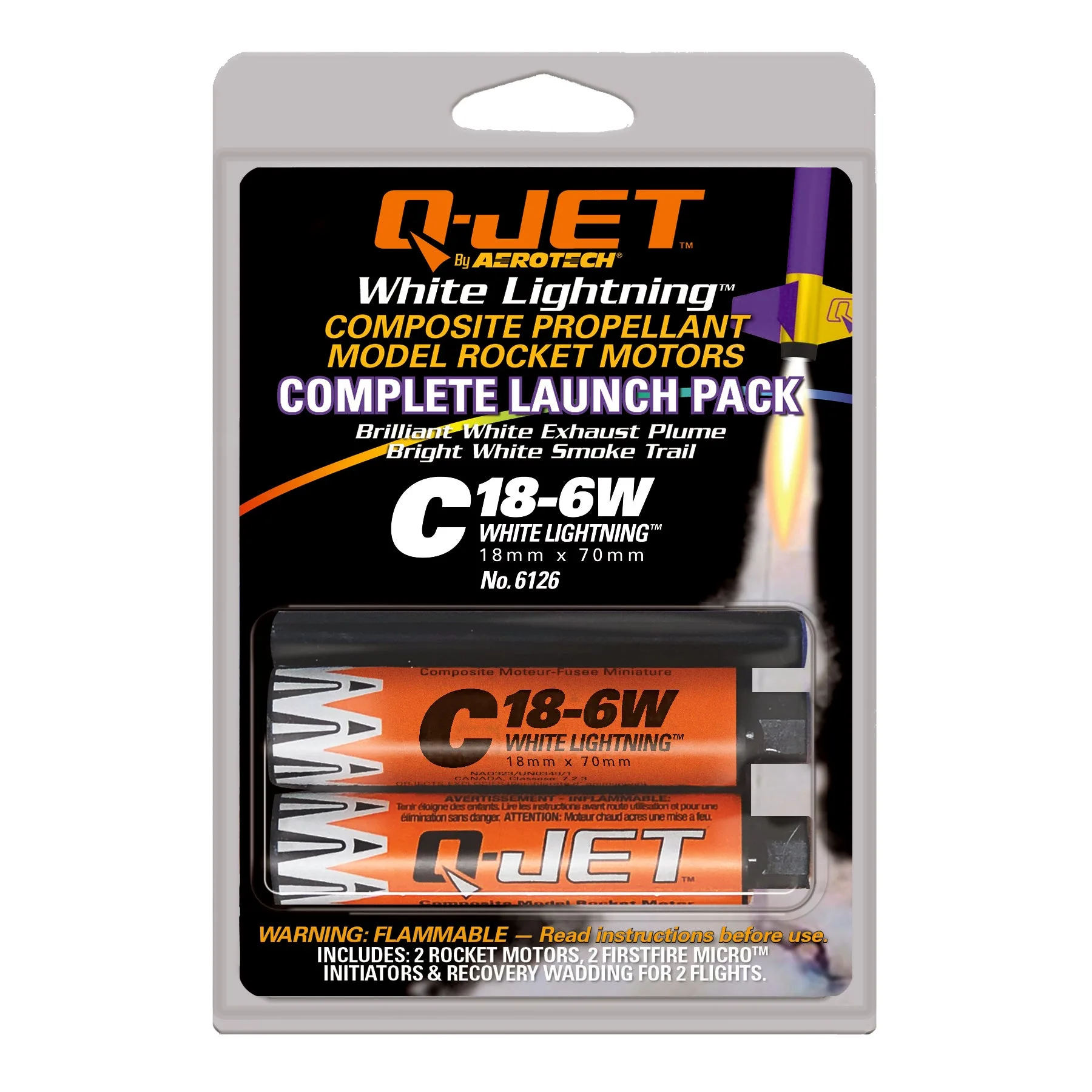

- Quest Q-Jet™ C18-6W White Lightning Complete 2-Motor Launch Pack - Q6126: Quest Q-Jets are the world's most advanced 18mm model rocket motors. They use a patent pending high-strength polymer case and bulkhead, ceramic nozzle, and RCSs exclusive White Lightning aerospace grade propellant. The polymer case is lighter and stronger than traditional cardboard, reducing motor weight and improving altitude. The ceramic nozzle withstands higher temperatures, so you don't need to worry about nozzle erosion during the burn.
